03-25-2014, 07:25 AM
|
#2 (permalink) |
|
A True Z Fanatic
Join Date: Sep 2009
Location: Mod Capital of Canada
Age: 58
Posts: 7,354
Drives: cars. lots of cars.
Rep Power: 40182   |
Get this done before posting season!!!
__________________
 H&R / Stillen / Berk / HKS / Swift / Michelin / UpRev / SPC / Amuse Rep / Seibon / Fringe XVO / TWM / more... My Journal |
|
|
03-28-2014, 11:09 PM
|
#3 (permalink) |
|
A True Z Fanatic
Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 24 |
Be careful there is Porn being posted down below !!

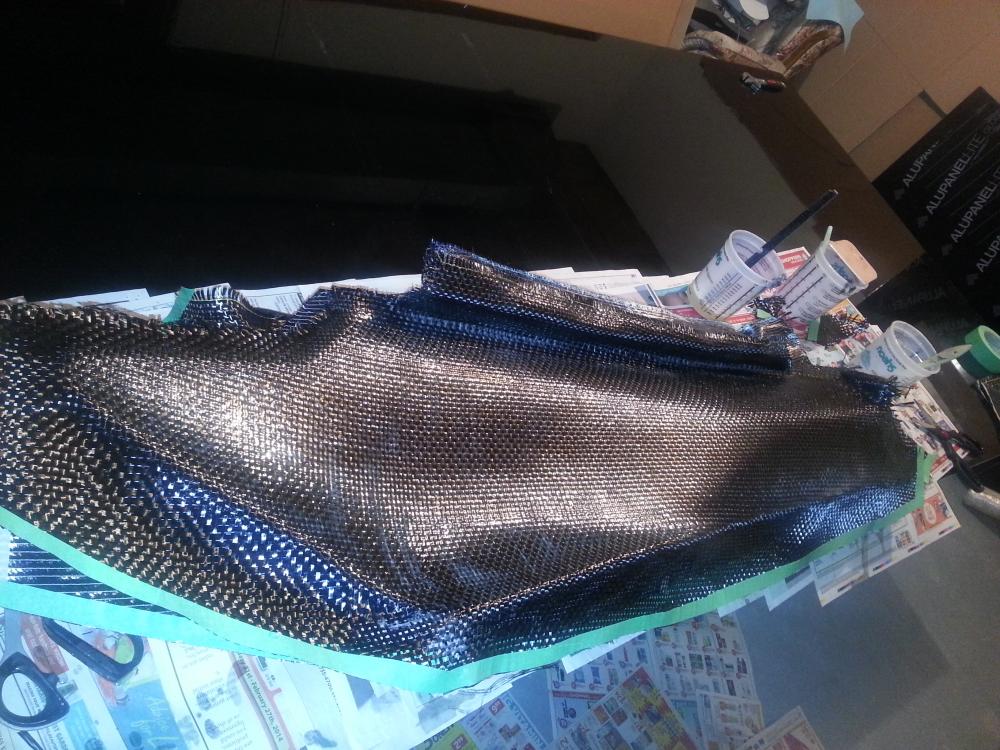

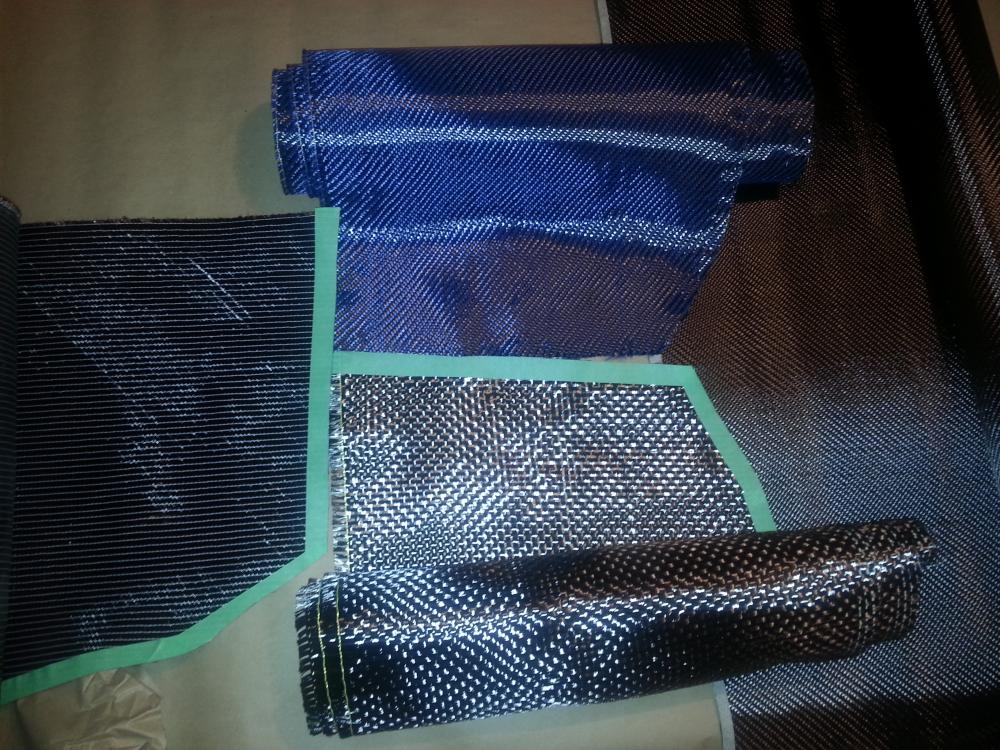

yeah you read correctly,,, its some cloth Carbon Fiber Porn !!! I hope you like it  There is; - two 3k 2x2 Twill cloth - one 12k plain T700 - one 12k biaxial 45-45deg T700   It took about an hour to do a paper fender template to cut all of the CF layer needed for the job. Then another 3 hours of hand lay up with a slow hardener... I should have bought a fast one on my last order
Last edited by Megan370z; 04-05-2014 at 07:39 PM. |
|
|
|
04-05-2014, 08:24 PM
|
#5 (permalink) |
|
A True Z Fanatic
Join Date: Feb 2009
Location: Orange County, CA
Posts: 3,503
Drives: C63 AMG - LSD
Rep Power: 651 |
I wish I had the skills, time, money, and motivation to do this. Somebody is gonna be a lucky f*ck when you decide to sell it to move onto something else.
__________________
|
|
|
|
04-12-2014, 10:53 PM
|
#8 (permalink) | |
|
A True Z Fanatic
Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 24 |
Quote:

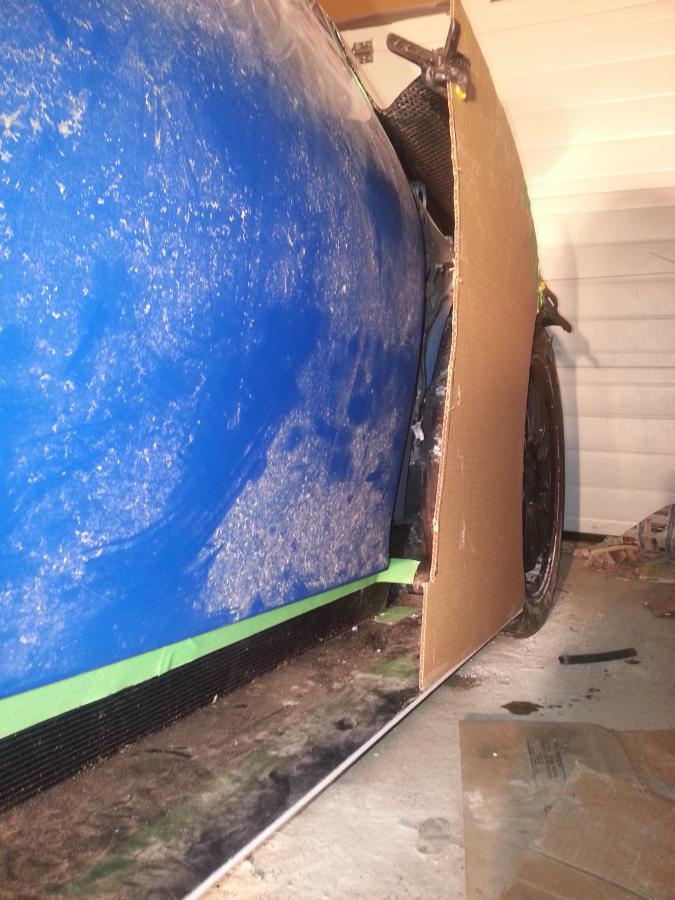

before I do something else in the inner fender I will finish the rest of the car .. its taking too long now I originally planned to be done by the end of April / beginning of May. this is what the current inner fender look like at this moment.
Last edited by Megan370z; 04-12-2014 at 10:56 PM. |
|
|
|
|
04-18-2014, 10:11 PM
|
#9 (permalink) |
|
A True Z Fanatic
Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 24 |

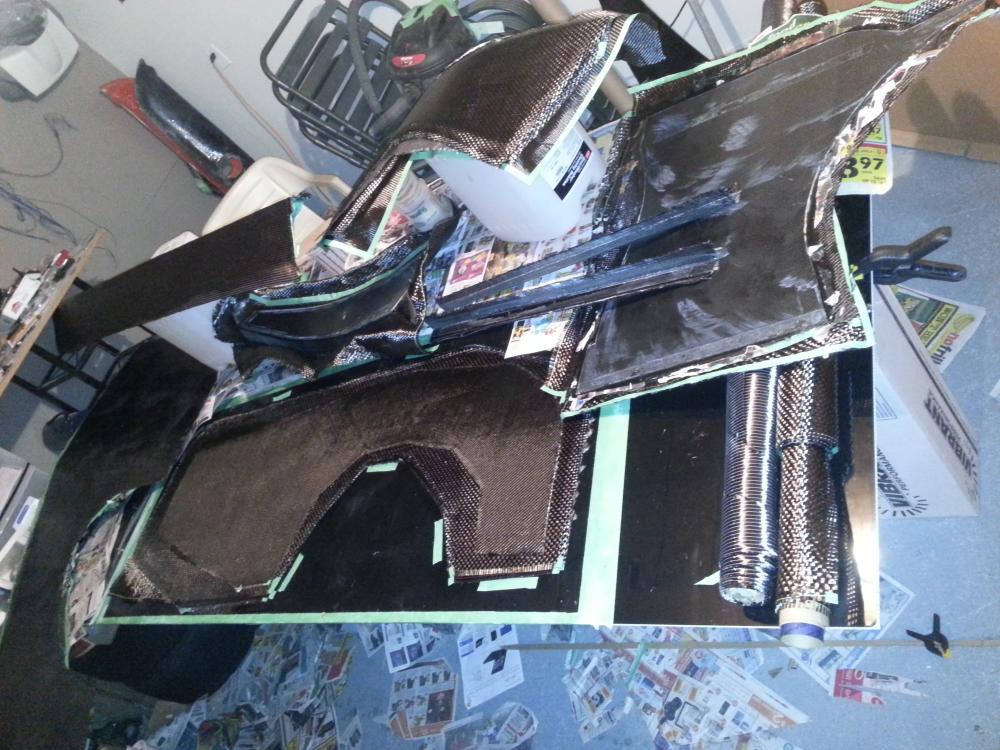

Carbon Fiber Party !
 on a more serious note. The left quarter panel has been started a last Monday & Tuesday if I remember correctly but I haven't touched it since then because I started making CF panel and parts for this Aero Project. I got to order more !!! yup again ;/ unfinished parts...
|
|
|
|
04-22-2014, 04:20 AM
|
#11 (permalink) |
|
A True Z Fanatic
Join Date: May 2013
Location: Columbus, OH
Posts: 5,051
Drives: 2013 Silver 370z
Rep Power: 3390 |
How thick are you making these parts? I want to make some canards and on ebay for a 12x48" panel I see 1.5mm, 2.6mm, 3.5mm and 4.4mm. I'm thinking 2.6mm should be what apr uses and strong enough.
__________________
13 370z- |
|
|
|
04-22-2014, 05:54 AM
|
#12 (permalink) | |
|
A True Z Fanatic
Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 24 |
Quote:
the rear bumper skin is a 3 layer and some reinforcement at the sharp edge. its very close to 1/16 *very flexible* the front side large panel are 4 layers of (7oz / 9oz / 12oz/ 9oz ) which give about 1/8'' * haven't measured* *quite strong panel* the rear large quarter panels are made with the same layer as the front side panel ( 4 layers ) the rear lower winglets are 3 layer ( 9oz /12oz/9oz ) and 2 extra layer of 12oz each at the mounting flange thickness goes from about 1/8 to almost 1/4 at the flange those 90deg 1x1'' are 2 layer of 12oz. ( about 1/16 ) (half weight from the same L beam in Aluminium. ) the long L parts 5''x2'' are 2 layers of 12oz and a renforcement of another 12oz at the bent edge (1/16 to almost 1/8) as far as your canard size ... I have a small plate that I kept which mesure .095'' , its quite stiff and should be good for that application (I guess ) if you go with that 2.6mm ( .102'') im still new in the CF stuff... Last edited by Megan370z; 04-22-2014 at 05:57 AM. |
|
|
|
|
05-11-2014, 12:35 PM
|
#14 (permalink) | |
|
A True Z Fanatic
Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 24 |
Quote:
on another topic, I received those goodies !  305 slicks with 18''x11'' rims.
|
|
|
|
|
05-18-2014, 09:43 PM
|
#15 (permalink) |
|
A True Z Fanatic
Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 24 |
I almost want to kick myself in the butt to have started this aero body kit back in January !!

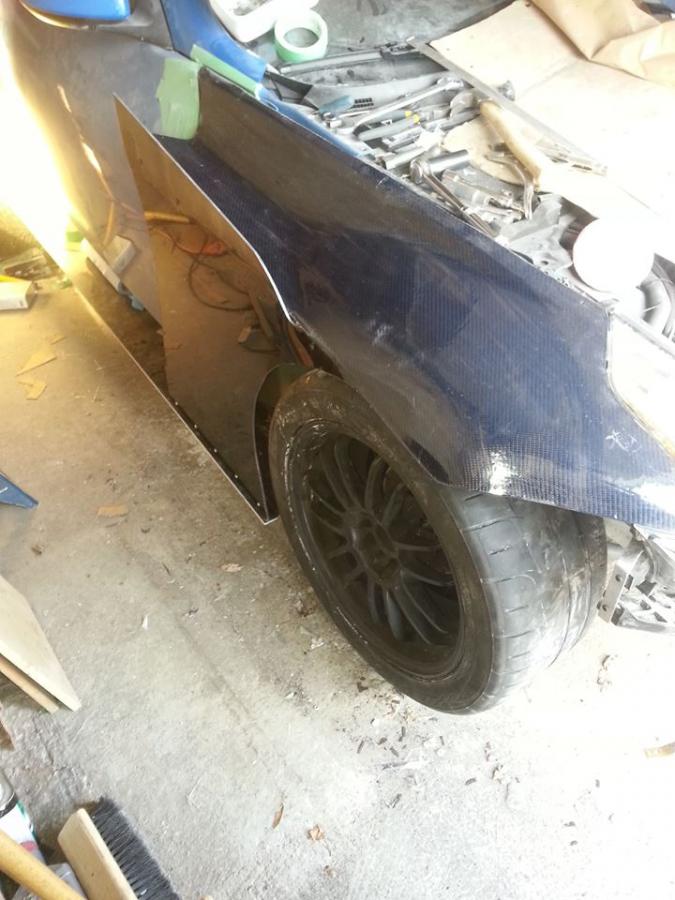

I'm not working on this everyday but I should have !!! The cost has been quite expensive soo far ! But I also been learned a lot on how to make parts with CF & hybrid CF/Kevlar. the right side has been completed and they are currently getting the final coat tonight, I expect a result of 8/10 for a hand laying process which will be alright for this first kit. some part are getting a last layer of the Blue hybrid CF/Kevlar.  I had the worst luck for the pass couple weeks, having to restart the front left fender TWICE from scratch. and the rear quarter had to get surgery to remove a 12''x10'' section because it was too high..... Left fender #3 being used to make the mold.... (About time !!!)
Last edited by Megan370z; 05-18-2014 at 09:47 PM. |
|
|
 |
