Default Megan Journal

Update 29 March 2014 ; Sorry there is some post that are missing pictures because Im running out of space and I removed the less important ones or the very old one ..

Its been a long time that I was thinking to show my Z progession on this forum.
I think, this is the time !

I first bought my 370z on 1st December 2009 , I was able to get a good deal since the 2010 was already out !
I didnt bother with the sport model and I went with the Base model + Nav.
Here is Canada our base model is the equivalent of the Touring in the US.

This is one of the first picture !


The first winter with the new Z was the most expensive !
then the second year was more focused on NA power mod !
Im not gonna name everything that I did but with the picture below
it will show the most important mod being done and dated.



my early focus in 2012 was to finaly get some aero
which started with a DIY front splitter made of a 10mm Alumacoor sheet , I was unable to get Alumalite at a fair price .

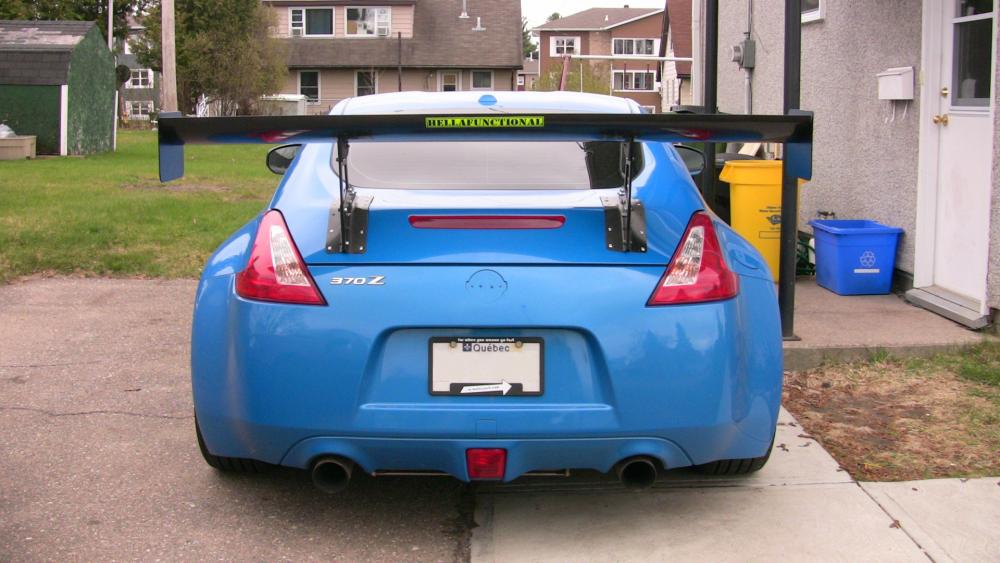

and then I found the first wing I wanted for the 370z . The kognition wing that MikeBonanni had.
I almost went with the APR Gtc300 from Scott @ FontanaNissan which had the best deal on here !! but I couldnt let go of the Kognition.










Im gonna describe some of the custom mods that I did since the beginning.

I first started at 256whp on a cold day fully stock on a dynapack @ SG-Motorsport.com which are now closed and finished at 324whp in November in about the same weather as what it was on my first baseline.

The CAI was made by Rawtek Inc. in Montreal,Canada
start at 3'' at the filter then the reducer goes down to 63.5mm for the MAF then back up to 2 3/4'' to the Throttlebody.




Then later on I bored out both of my Throttle body to 62.5mm from 60mm Stock.
*almost finished TB*


I also did a copy myself of the M370 from Motordyne . Since I had an HR engine as a spare from my old 2007 350z that I didnt longer had.
I used the HR intake manifold and started to modify it like Motordyne did and did my best to port mach the lower intake

All of the picture can be found in my Album


Then the next step is the Header !!
I first started in 2009/2010 with the Stillen Header and Berk HFC then went with the new PPE Long step headers


Let me tell you guys that the DIY install was a pain in the A$$ !!!!
it took me about a week to have it done. If it wouldnt have been because of that damn rounded nut , It could have took about 8-10hours in total !
but ended to around 24 !
Everything was done in my parking lot at the time during my vacation !!! I was piss and missed my dyno appointement.






I finaly used a flexible dremel extension and partialy cut the nut. !!!

oh and good luck if you 6MT guy want to do it yourself ! I had to remove a bracket that is use for your cluth oil line. , the header didnt want to go in , it had to be removed.

the next step after my PPE is a custom X-pipe , again made by Rawtek Inc in Montreal, Canada





they did a very good job on everything up to now and I even plan to have my next single exhaust made by them from my specification.

they also did my custom prototype muffler that was allowing me to meet the noise decibel requirement with flying color !!


I have many video on Youtube that can be watched here

Plan for 2012 is gonna be a bit limited to about 6-7 track days and 3 Time attack of CSCS.ca at Cayuga,Ontario.
boarderbob likes this.
__________________
Megan Journal *Click Me* ....................One Man Team Motorsport *Click Me*

Last edited by Megan370z; 03-29-2014 at 12:15 AM.
Megan370z is offline
Old 04-22-2012, 10:54 PM   #2 (permalink)
A True Z Fanatic

Glokwork's Avatar

Join Date: Jun 2011
Location: Roanoke, VA
Posts: 2,657
Drives: 11 370Z MB 6MT
Rep Power: 21
Glokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond reputeGlokwork has a reputation beyond repute
Default

Great build and love the custom mods, keep it up
__________________
Precision Turbo Tial Turbosmart Fast Intentions Seibon Prosport Advan AD08R HKS Hipermax IV Nismo Evo-R PW:JDM UpRev Pioneer Escort Volk CE28N
Top Mount Single Turbo 551whp/482wtq@10psi

Glokwork is offline
Old 04-22-2012, 11:23 PM   #3 (permalink)
A True Z Fanatic

MacLean's Avatar

Join Date: Apr 2012
Location: Houston
Posts: 1,589
Drives: '12 GM Nismo # 0445
Rep Power: 15
MacLean has a spectacular aura aboutMacLean has a spectacular aura aboutMacLean has a spectacular aura about
Default

Nice custom mods that you have done on your Z. Please keep us posted.
MacLean is offline
Old 04-24-2012, 11:44 AM   #4 (permalink)
A True Z Fanatic

TheGreatOne's Avatar

Join Date: Jan 2011
Location: Montreal, Canada
Age: 46
Posts: 1,980
Drives: E60 BMW M5
Rep Power: 21
TheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond reputeTheGreatOne has a reputation beyond repute
Default

Nice work Dan,

The fact that you are standing on that splitter means its truly strong and functional!
__________________
2017 SUBARU STI
2008 E60 M5 - SOLD
2010 40th Anniversary 370Z - SOLD (and missing her)
TheGreatOne is offline
Old 04-24-2012, 07:13 PM   #5 (permalink)
Enthusiast Member

EventHorizoN's Avatar

Join Date: Apr 2010
Location: Burbank
Posts: 381
Drives: 2013 Audi S4 Quattro
Rep Power: 14
EventHorizoN is a jewel in the roughEventHorizoN is a jewel in the roughEventHorizoN is a jewel in the rough
Default

its very nice to see a Z being modified functionally! keep up the great work!
EventHorizoN is offline
Old 04-24-2012, 07:33 PM   #6 (permalink)
O&G
A True Z Fanatic

O&G's Avatar

Join Date: Nov 2010
Location: Lone Star State
Age: 41
Posts: 1,212
Drives: 40th Anv.
Rep Power: 22
O&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond reputeO&G has a reputation beyond repute
Default

good stuff , keep up the good work!
__________________
O&G's Build/Journal <---(1st lowmount single turbo treeseventy)
Built Engine Thread
2011 F-250 Build/Journal
O&G is offline
Old 04-28-2012, 11:15 PM   #7 (permalink)
A True Z Fanatic

Megan370z's Avatar

Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 23
Megan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond repute
Default

To day I send 2 hours on the dyno to test 2 mods that I did in 2011.
Normaly I always do a dyno session after any power mod but since last year I was plaged with the ECU pulling timing and not knowing it untill I blew the tranny on the drag strip.
The flywheel was badly cracked, which we think it was affecting the knock sensor to not be happy thus pulling timing !

It was difficult to have much of any consistense pull after pull but since the flywheel got replaced, I do not have any problem with that !

Soo today was to confirm 2 mods.


1= HR vs VHR intake manifold (you can see my picture when I did the conversion)


-

2= Throttle Body OEM stock @ 60mm VS bored at 62.5mm
The AFR were ajusted before the recording pull.
__________________
Megan Journal *Click Me* ....................One Man Team Motorsport *Click Me*
Megan370z is offline
Old 05-27-2012, 05:16 PM   #8 (permalink)
A True Z Fanatic

Megan370z's Avatar

Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 23
Megan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond repute
Default

First track day in 2012 since my last one around August 2011.

Im getting ready for the first CSCS.ca event on June 3rd which mean I had to give a good shakedown to my new setup !



Ofcourse the car had some problems
- loose front holding bolt on the Diff (I swaped another diff 2 weeks ago)
- Engine Oil overheating (even with a 11''x11'' oil cooler I hit 135 Celcius !!!)
- some slapping noise during a turn (I discovered my exhaust is hitting the rear useless V bar ) because I snaped one of the bolt on the left side exhaust bracket last week , it didnt make any noise untill I hit the track !


so there we go with the Video !

http://www.youtube.com/watch?v=VLvvy-bNxqE?hd=1
__________________
Megan Journal *Click Me* ....................One Man Team Motorsport *Click Me*
Megan370z is offline
Old 05-27-2012, 07:47 PM   #9 (permalink)
Track Member

Tribalpinoy91's Avatar

Join Date: May 2012
Location: Las Vegas
Posts: 607
Drives: 370z PW
Rep Power: 13
Tribalpinoy91 will become famous soon enoughTribalpinoy91 will become famous soon enough
Default

God that looks like ****
Tribalpinoy91 is offline
Old 05-27-2012, 08:16 PM   #10 (permalink)
A True Z Fanatic

Megan370z's Avatar

Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 23
Megan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond repute
Default

Quote:
Originally Posted by Tribalpinoy91 View Post
God that looks like ****


thanks for that comment ,, good or bad ! haha
__________________
Megan Journal *Click Me* ....................One Man Team Motorsport *Click Me*
Megan370z is offline
Old 05-27-2012, 11:56 PM   #11 (permalink)
A True Z Fanatic

Ni55anPat's Avatar

Join Date: Mar 2010
Location: Chicago
Posts: 1,833
Drives: Zed
Rep Power: 18
Ni55anPat has a spectacular aura aboutNi55anPat has a spectacular aura aboutNi55anPat has a spectacular aura about
Default

Idk man. Wing is ugly. Chin spoiler looks ghetto.

Your car, if u like that's all that matters
Ni55anPat is offline
Old 05-28-2012, 05:30 AM   #12 (permalink)
A True Z Fanatic

Megan370z's Avatar

Join Date: Oct 2009
Location: Canada
Posts: 1,156
Drives: 370z
Rep Power: 23
Megan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond reputeMegan370z has a reputation beyond repute
Default

Quote:
Originally Posted by Ni55anPat View Post
Idk man. Wing is ugly. Chin spoiler looks ghetto.

Your car, if u like that's all that matters
ok sure thanks again for the useless comment ...

I guess you missed the point that all the mods I did was for the track ???
O&G likes this.
__________________
Megan Journal *Click Me* ....................One Man Team Motorsport *Click Me*
Megan370z is offline
Old 05-28-2012, 12:17 PM   #13 (permalink)
Track Member

shaun66's Avatar

Join Date: Mar 2010
Location: n
Posts: 837
Drives: MB 370z 7AT
Rep Power: 16
shaun66 is on a distinguished road
Default

lolol I think it looks pretty badass.
shaun66 is offline
Old 05-28-2012, 12:32 PM   #14 (permalink)
A True Z Fanatic

shadoquad's Avatar

Join Date: Apr 2010
Location: .
Posts: 42,608
Drives: .
Rep Power: 3885
shadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond reputeshadoquad has a reputation beyond repute
Default

Quote:
Originally Posted by Tribalpinoy91 View Post
God that looks like ****
Quote:
Originally Posted by Ni55anPat View Post
Idk man. Wing is ugly. Chin spoiler looks ghetto.
Quote:
Originally Posted by Megan370z View Post
I guess you missed the point that all the mods I did was for the track ???
seriously, this is a track car. The wing and splitter are functional, and ain't nothin' sexier than functional
shadoquad is offline
Old 05-29-2012, 11:37 PM   #15 (permalink)
A True Z Fanatic

Ni55anPat's Avatar

Join Date: Mar 2010
Location: Chicago
Posts: 1,833
Drives: Zed
Rep Power: 18
Ni55anPat has a spectacular aura aboutNi55anPat has a spectacular aura aboutNi55anPat has a spectacular aura about
Default

Quote:
Originally Posted by Megan370z View Post
ok sure thanks again for the useless comment ...

I guess you missed the point that all the mods I did was for the track ???
There are a lot of nice and functional parts available for the 370z.

Good thing about journals is that people can give opinions, u are posting stuff public. Can't take it with a grain of salt. Don't post

What else do u have planned?
Ni55anPat is offline
