single turbo v-mount

jaytirbhaw

might have missed this but whats the exhaust housing on your turbo ? T4?

__________________
2014 Nismo #350 , Built Motor, Top Mount Single Turbo .... 620 whp/ 500 lbs wtq
2012 Track/Drift Z, build coming soon.
Build Thread - http://www.the370z.com/members-370z-...70z-build.html

kukpet

V-band.82a/r....
its on my list to upgrade but i have no room for t4 divided.
I think biggest t4 tangential is .96 a/r and i don't know how much different it will make compare to .82 vband.
I just don't want bigger turbo lag so decision decision haha

Boosted Performance

Find a way to get that T4 .96 a/r in there. You won't notice any lag, but it will pull like a freight train after 4k rpm....trust me.

The VE of these engines is phenomenal, and they respond extremely well to large turbine housings.

__________________
750WHP starting @ $7,500 to the door
FOR DETAILS VISIT: http://www.the370z.com/members/boosted-performance.html
FB: https://www.facebook.com/Boosted-Per...6303179791462/
IG @boostedperformanceyeg

kukpet

Thanks for response
I have no problem to fit t4 tangential . I will also make new pipe from t4. (I think from 2.5 to 3 inch)

Boosted Performance

With your pipe design, you would not be able to take the advantage of the twin scroll design anyway. The largest T4 available for that turbo is a T4 1.32 a/r, which is a twin scroll. The T4 .96 a/r tangential design is the next largest, so you should be able to put some good numbers down with that.

As for the up-pipe, you should keep it 2.5", as that is plenty, and going to 3" would only slow the spool.

__________________
750WHP starting @ $7,500 to the door
FOR DETAILS VISIT: http://www.the370z.com/members/boosted-performance.html
FB: https://www.facebook.com/Boosted-Per...6303179791462/
IG @boostedperformanceyeg

kukpet

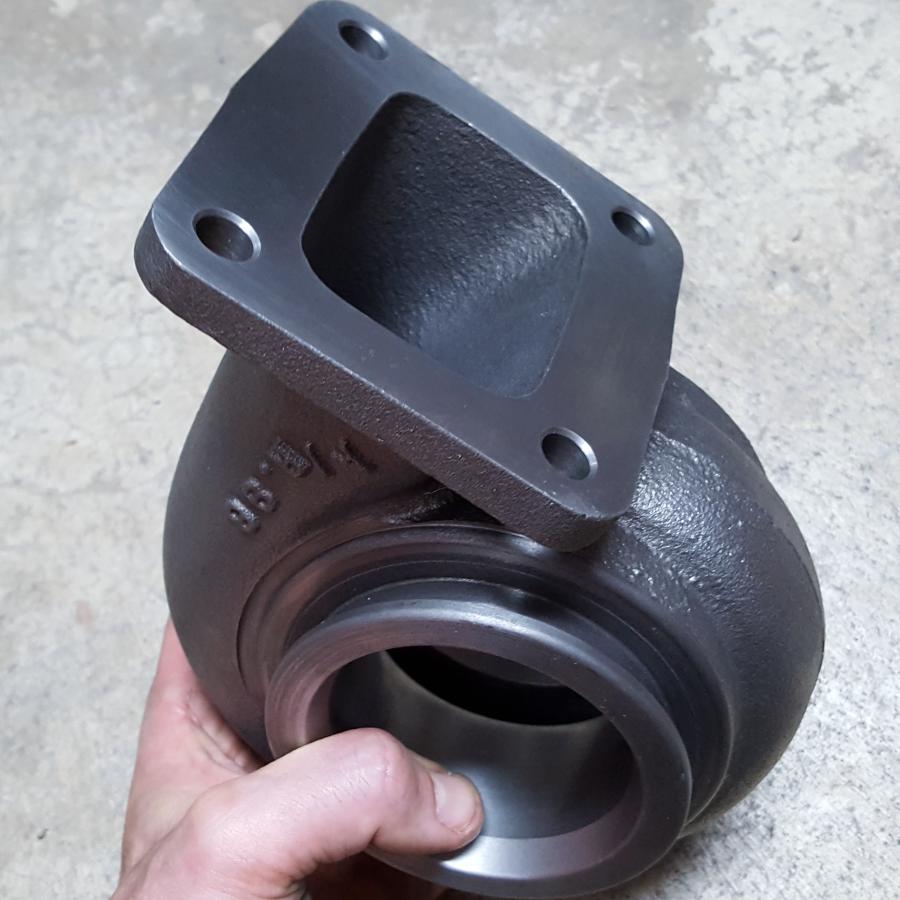

Bigger turbine HSG

jaytirbhaw

Did you get this new turbo installed ? Looking to make the same upgrade

__________________
2014 Nismo #350 , Built Motor, Top Mount Single Turbo .... 620 whp/ 500 lbs wtq
2012 Track/Drift Z, build coming soon.
Build Thread - http://www.the370z.com/members-370z-...70z-build.html

Boosted Performance

Nice work, and great numbers for 11.5psi.

How does the .96a/r look over your previous turbine housing...I bet there not much difference in spools.

__________________
750WHP starting @ $7,500 to the door
FOR DETAILS VISIT: http://www.the370z.com/members/boosted-performance.html
FB: https://www.facebook.com/Boosted-Per...6303179791462/
IG @boostedperformanceyeg

kukpet

Not yet.
Also changing to ID1700 and dual fuel pump setup before new tune

kukpet

My up-pipe is only 2.25inch so i think i need to change it to 2.5inch.

kukpet

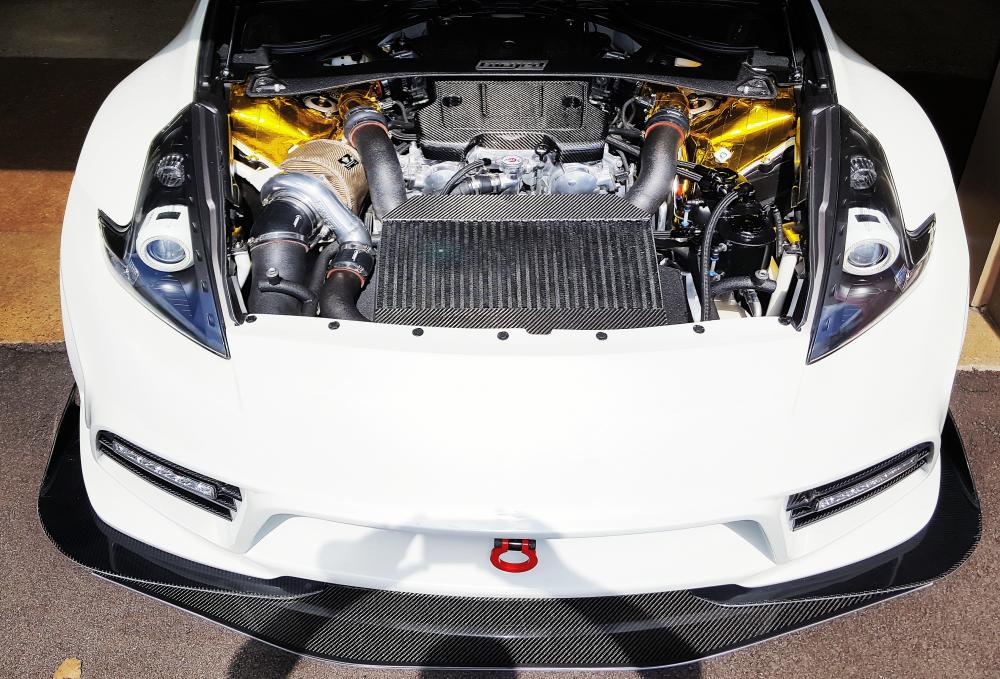

Latest pictures

kukpet

Hotrodz

One bad ride my friend...hopefully we can run together again next may!

__________________
Fast Intentions TT Installed and Tuned by Seb at SpecialtyZ 610whp 560tq:|Fast Intentions 3" TT-TDX|SpecialtyZ/Fast Intentions 72 Row Oil Cooler|SZ 6 Puck Clutch & Flywheel|3GsCustoms|Z1|Wavetrac|Hotchkis|Whiteline |Blitz|Fortune Auto 500|Fujimura|SPL|H&R|TK|TWM|RPM Rollbar|Sparco|Next Level Performance|TrackSpec|AeroFlow Dynamics|Pioneer|

kukpet

Thanks buddy.

kukpet

Version 2.0 coming soon

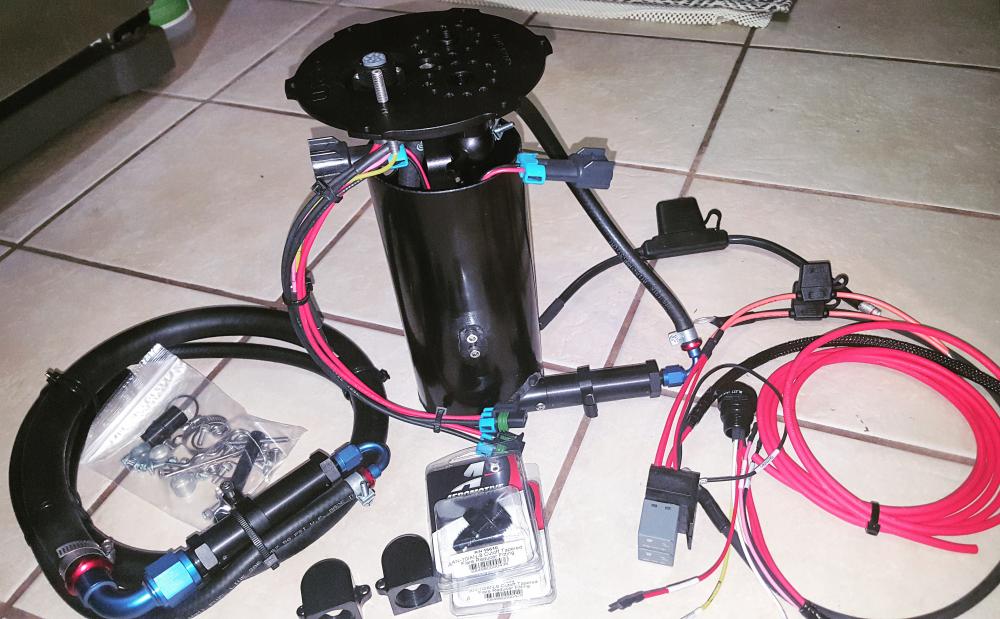

- Twin 450walbro pump is here and quality is top notch
- ordered z1 motor and transmission mounts. 20% off black Friday
- changing precision 6266 vband to 6766 t4
- ID1700 injectors
- changing lot's of pipes. Some for bigger size....
And i though i don't have to do anything this winter
