DIY: LED Halo w/Video's

ShuuraRG · 05-22-2017, 11:14 AM

After having to wait over two months for a broken wrist to heal, I've finally been able to get my halo install done! I'm running the Starry Night RGB+Chasing kit that I'd purchased back in February, before they released the RGBW+Chasing kit...

Jayhovah · 05-31-2017, 08:40 PM

Well, I finally caught a good deal on a used pair of headlights... Leaning towards just painting them but also considering demon eyes and possibly halos.

Any good DIY on the demon eyes on here (or link elsewhere)? There is some info in this thread but not as comprehensive as halos...

Also, is there a reasonably prices set of halos out there that I can be confident wont suffer from burn outs? I really don't want to have to do this mod twice.

Thanks guys!

Edit: Reread the whole thread.. think I have a handle on how to do Demon eyes... How well do the new Morimoto XBT halos fit in the shroud? Those Starry Night halos also look pretty amazing.

ShuuraRG · 06-27-2017, 04:51 PM

Quote:

Originally Posted by Jayhovah

Well, I finally caught a good deal on a used pair of headlights... Leaning towards just painting them but also considering demon eyes and possibly halos.

Any good DIY on the demon eyes on here (or link elsewhere)? There is some info in this thread but not as comprehensive as halos...

Also, is there a reasonably prices set of halos out there that I can be confident wont suffer from burn outs? I really don't want to have to do this mod twice.

Thanks guys!

Edit: Reread the whole thread.. think I have a handle on how to do Demon eyes... How well do the new Morimoto XBT halos fit in the shroud? Those Starry Night halos also look pretty amazing.

Thanks Jayhovah! I'm loving them!!

nd4spd_m · 07-27-2017, 03:15 AM

Quote:

Originally Posted by Nut_N_Much

After your test fit you can clean it up and smooth it out repaint it if needed. Remember the grey is all that will be seen.. When you glue the lens on its goop is clear but try to avoid getting it all over the lens.

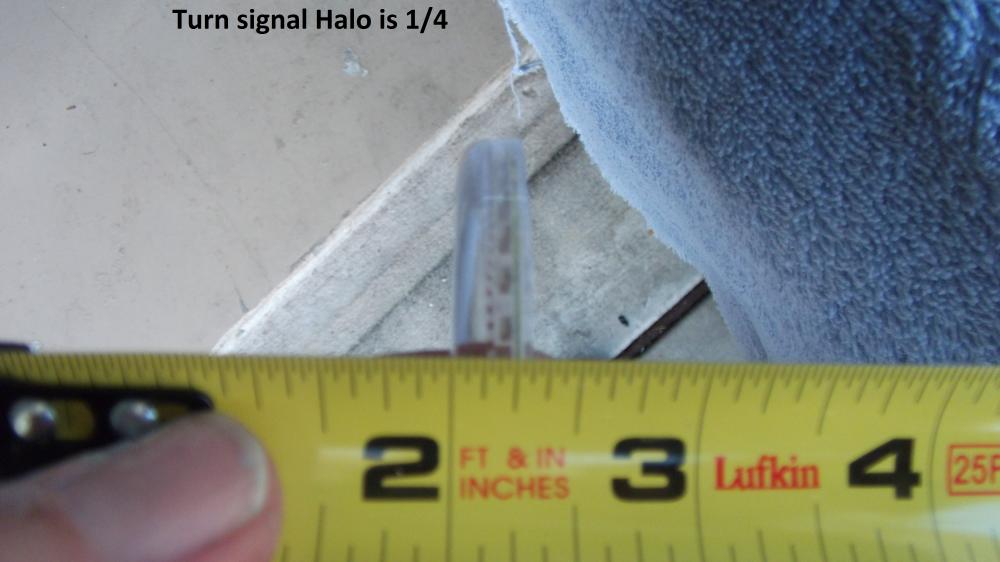

I measured the halo, its 1/4 inch width then I measured the gap between the Light Shroud and The Turn Signal Shroud we just modified. It looks like the halo wont fit with out modifying the Light Shroud. So I need to cut 1/4 out of the housing. I have to figure out how to do it, if I cut the wrong side I ruin the hole thing. So when you mark it check it twice before cutting.

Mounted the modded turn signal shroud and slide the halo in front of it. This will show you which side you need to cut. Once cut it will allow the halo to sit centered on the shroud. Once you figure out what you need to cut off the light shroud you can go ahead and glue the halo on the turn signal shroud you modified.

I marked were i needed to cut with a marker and used the air grinder to grind it out slowly and get a good tight fit. Check it as you go you don't want a huge gap. You should be able to slide the turn signal shroud (with everything mounted to it) in and out freely. If you grind to much don't worry, once the lights are painted its not very visiable unless guys like us are looking for it.

My cut worked perfectly see the pic. Also gave me a good location to run the wires to the control box.

The hard part over is now over, just remember what you did and do it again to the other light. Next I figured out how I wanted my 90mm halo wire to run so I drilled a small hole in the projection light shroud. Now I have done a lot of lights I recommend running wires through the top of the shroud, if you run them at the bottom or on the side they will be visible once they are put back together. The picture is old and shows the hole being on the side, drill at the top not the side.

The retrofitsource.com XB halo's fit snugly in the valley of the shroud. This halo ring from LitWurkz (Angel Eye Kit) will not sit in the valley. They are glued to the outside. This DIY I used the lightwurks kit and also ordered LED Turn Signals. ****You will want to replace the stock turn signal light bulb**** The stock bulb gives off a lot of heat, that heat will transfer to the G35 Lens we installed, That lens will get hot enough to cause your paint to bubble up over time.

I hate wrapping, I tried to do it with one piece. NOT going to happen with me at the helm. I did what I could..

Came out okay just worried about the heat. I have seen a few forum members wrap the inside of the lights but not on the shroud itself. I guess we will find out. The worst that can happen is I take it off and paint it some crazy color

.

The wife says to stop and eat, I have been at it all day and it started to rain. Good timing. Please REP +! and LIKE if you like the progress or this build helps you do your own.. Thanks for lookin !

Nice DIY guide bro , one question , can you share more detailed wiring guide .

I'm doing dual halos and demon eye RGB from morimoto but still planning the wiring

Genosphere · 11-24-2017, 08:20 PM

Just got a few things off The Retrofit store during this thanksgiving deal stuff; got 25% off on my order. I just hope i got most of the right stuff, any feedback for what i might be missing component wise would be great.

RGB CONTROLLER: MORIMOTO XBT BLUETOOTH
RGB Controller: Morimoto XBT Bluetooth
RGB CONTROLLER: MORIMOTO XBT (4 WIRE - UNIVERSAL STANDARD):

HALOS: PROFILE PRISM (RGB)
Halos: Profile Prism (RGB) x2
90MM PROFILE PRISM HALO W/ DRIVER (RGB): $75.00

HALOS: PROFILE PRISM (RGB)
Halos: Profile Prism (RGB) x2
70MM: PROFILE PRISM HALO W/ DRIVER (RGB): $65.00

HALO INSTALLATION KIT
Halo Installation Kit

DEMON EYES: PROFILE PRISM (RGB)
Demon Eyes: Profile Prism (RGB) x2

Not sure if ill need any extra adapters, but the Morimoto controller said it is capable of handling up to 3 sets of lights, i.e. x2 demon eyes, x2 Halos A, x2 Halos B, which is what im running.

Genosphere · 01-09-2018, 12:37 PM

Quote:

Originally Posted by nd4spd_m

Nice DIY guide bro , one question , can you share more detailed wiring guide .

I'm doing dual halos and demon eye RGB from morimoto but still planning the wiring

Im about to finish my set, ill upload pictures of what i did with the demon eyes. Not actually sure if they are going to work well untill i test once i figure out where i want to run my wires.

Genosphere · 01-18-2018, 09:22 AM

I figure I try and show a few things they may not have been covered here earlier and try to provide some images where I can.

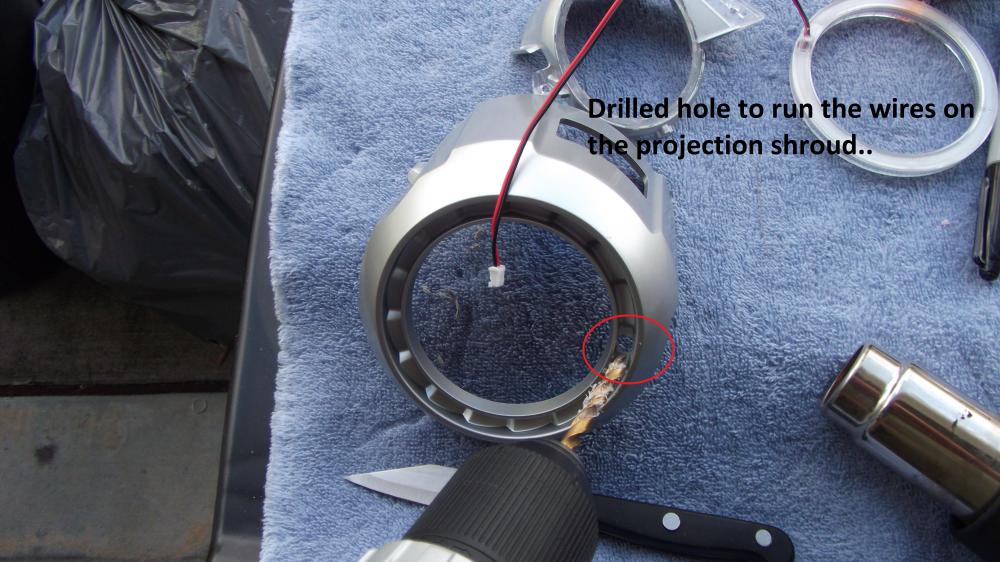

Hole drilled in main light fixture fir halo wires.

Demon eye: Drilled two holes, one for the bolt and another safety wire to hold it in place. (This did not work for me because I did not position it far enough forward, if there was even enough space, where I was trying to shine the light into the small opening in the projector shroud.

Never the less, try it and maybe you can get it to work.

Here is how I had things wired,

I wired into the car harness at each plug, GREEN=(+)Turn signal & RED=(+)HID on R/H light. The L/H light is different, I honestly dont remember but compare the plug to R/H and the wire positions are the same, looking at the end of the plug with the clip on top the bottom middle THICK wire is (+)HID and top left is the signal.

I was going to use the quick splicers, those blue things, but decided to just strip some of the wiring away and solder leads right onto the harness, more secure that way.

Now I wired the (+)Lead from the Morimot BT controller into the harness at the battery bay, should be the wire bundle most outboard going through the battery wall FWD. I removed some of the tape and what not and found a thick red wire that belongs to the radiator fan that has constant power once the car is on.

Connected with a fused line to BT controller.

I ran all the wires upfront and "mounted" them to the front bumper, only place I found to have enough space to store all this ****, controller, and the six ballasts for the halos and demon eyes. There is room on each side above the black plastic flapper looking things.

I used 3M tape that sticks to its self and a couple zip-ties to secure them, and a bunch more zip-ties to hold all the wiring in place. An as you can see, I wrapped the whole damn thing in plastic to protect it as much as I can from water and debris, taped each end.

I modded the pumper a little to accommodate the zip-ties and plastic stuff, just for away some of the ridged that would sit inside the metal bumper's valley.

An I also used the horns mount as my ground for the DEMON EYES.

Not sure if the images will shot, using google drive as my source, so ill fix it when i get a chance. Should still be able to copy the link and view the images. If I can round up some more images or I made mistake, please let me know, Ill add more as I find it and get time.

Heres the link to the folder with images if the previous links did show:
https://drive.google.com/open?id=1ni...dev3YE1Mqlv-a_

Hope this helps anyone in any way.

Jayhovah · 01-18-2018, 11:08 AM

Quote:

Originally Posted by Genosphere

Heres the link to the folder with images if the previous links did show:.

Pics are broken for sure.. I can see the drive folder though =)

This forum itself will host your pics for you.. You can either create an album (quicklinks->Pictures&albums if browsing on the web) or attach the pictures directly to your post and insert them in.

Lots of good info here, would be even better laid out the way you intended! =)

I haven't seen a lot of good writeups on demon eyes for our lights so I am particularly interested in that!

Genosphere · 01-23-2018, 06:33 PM

Quote:

Originally Posted by Jayhovah

I haven't seen a lot of good writeups on demon eyes for our lights so I am particularly interested in that!

Unfortunetly the demon eyes aren't showing, but they are working. I think I mounted them just a little to far back, I can see them on just doesn't get enough light in the opening from it's position...

I was worried about using the epoxy with the heat from the projector but when I take it apart I'll try it out.

Over all, the Morimoto BT controller works great, for what it is; and the halos are supper bright too. Will update further on quality as time passes.

I'll sort those images out this week for you if I get the time; I drive back and forth from Pittsburgh to Cincinnati for work and class. Also, sorry for the tons of typos too, using my phone to type tends to be messy and I forget to check. :P

Try this link for the photos, think I fixed it...: https://drive.google.com/open?id=1ni...dev3YE1Mqlv-a_

Genosphere · 01-31-2018, 08:18 AM

I figure I try and show a few things they may not have been covered here earlier and try to provide some images where I can.

For some reason every time I try to add photos, the post dosent go through. So I added a new link at bottom with images. Sorry.

Hole drilled in main light fixture fir halo wires.

Demon eye: Drilled two holes, one for the bolt and another safety wire to hold it in place. (This did not work for me because I did not position it far enough forward, if there was even enough space, where I was trying to shine the light into the small opening in the projector shroud.

Never the less, try it and maybe you can get it to work.

Here is how I had things wired,

I wired into the car harness at each plug, GREEN=(+)Turn signal & RED=(+)HID on R/H light. The L/H light is different, I honestly dont remember but compare the plug to R/H and the wire positions are the same, looking at the end of the plug with the clip on top the bottom middle THICK wire is (+)HID and top left is the signal.

I was going to use the quick splicers, those blue things, but decided to just strip some of the wiring away and solder leads right onto the harness, more secure that way.

Now I wired the (+)Lead from the Morimot BT controller into the harness at the battery bay, should be the wire bundle most outboard going through the battery wall FWD. I removed some of the tape and what not and found a thick red wire that belongs to the radiator fan that has constant power once the car is on.

I ran all the wires upfront and "mounted" them to the front bumper, only place I found to have enough space to store all this ****, controller, and the six ballasts for the halos and demon eyes. There is room on each side above the black plastic flapper looking things.

I used 3M tape that sticks to its self and a couple zip-ties to secure them, and a bunch more zip-ties to hold all the wiring in place. An as you can see, I wrapped the whole damn thing in plastic to protect it as much as I can from water and debris, taped each end.

I modded the pumper a little to accommodate the zip-ties and plastic stuff, just for away some of the ridged that would sit inside the metal bumper's valley.

An I also used the horns mount as my ground for the DEMON EYES.

Not sure if the images will shot, using google drive as my source, so ill fix it when i get a chance. Should still be able to copy the link and view the images. If I can round up some more images or I made mistake, please let me know, Ill add more as I find it and get time.

Heres the link to the folder with images if the previous links did show:
https://drive.google.com/open?id=1ni...dev3YE1Mqlv-a_

Hope this helps anyone in any way.

Just1nfj · 02-01-2018, 11:17 PM

hey bro,

Resizing your picture would help a lot the reading check out that website : resizeimage.net

Good tutorial thanks for everything.

josemartinrea · 04-23-2018, 09:38 PM

So does anyone know what color wires are for the turn signal on the headlight ballasts? I’m wiring Morimoto Switchbacks

fishermanof93 · 04-26-2018, 10:19 AM

what is the length of led strip required for the headlights? i see you guys talking about these but was not able to see a length

Genosphere · 06-08-2018, 07:28 AM

Quote:

Originally Posted by josemartinrea

So does anyone know what color wires are for the turn signal on the headlight ballasts? I’m wiring Morimoto Switchbacks

Put a picture of some wiring I did in the attachment.

Genosphere · 06-08-2018, 07:37 AM

Quote:

Originally Posted by Just1nfj

hey bro,

Resizing your picture would help a lot the reading check out that website : resizeimage.net

Good tutorial thanks for everything.

Sorry about that, I also just realized all the picks finally showed up. Took down the duplicate posts. I'll try and get around to resizing everything.
