Mozen's Build V 2.0

Chuck33079 · 07-13-2013, 02:33 PM

Quote:

Originally Posted by Mozen

Sadly dyno time here in Germany is retarded.

Yeah, but you have an Autobahn. Cry me a river.

Mozen · 07-16-2013, 03:45 AM

Haha its not unlimited speed all the time...more and more of the autobahn is getting speed caps of 120-130kph :/

Sent from my Galaxy Nexus using Tapatalk 2

Mozen · 07-28-2013, 08:04 AM

Sent from my GT-I9505 using Tapatalk 2

Mozen · 07-28-2013, 08:07 AM

TWM spooky shift knob and stillen headers/Z1 HFCs with DEI heat wrap.

Sent from my GT-I9505 using Tapatalk 2

Mozen · 08-11-2013, 02:53 AM

I tackled these this weekend and had an issue like some with the header studs stripping out. Luckily i was able to chase the threads with a tap and die set however it was nearly a bust. I found that my secret weapon here was my other half who is a mechanic as well. Her arms can get down behind the headers and she did a lot of the confined space work.

Here you can see the thread tool as i chase the threads on the block.

...and here you can see the smoke rising from the headers thanks to the DEI wrap. I actually had people trying to get me out of the car at a stop light on the way home because they thought the engine was on fire.

Sorry for the pics being sideways....im too lazy to go back and rotate them then re-upload.

Wonka2581 · 08-11-2013, 02:58 AM

Nice Z....

Mozen · 08-14-2013, 12:55 PM

Installed my whiteline rear end links and got my ecutek cable.

Mozen · 08-15-2013, 12:11 AM

Z1 2 Piece Rotors are on the way for the front. Ill switch out the Front/Rear pads at the same time to a set of Hawk HPS.

Mozen · 08-22-2013, 03:20 PM

And z1 rotors are here and installed along with a full set of racing brake pads. Love em.

While I was at it I drained and flushed my power steering fluid.

Sent from my GT-I9505 using Tapatalk 4

synolimit · 09-14-2013, 09:20 PM

Quote:

Originally Posted by Mozen

That above brings us up to now where ive decided to paint the roll cage with a resin based appliance paint (tough) and repaint the GEN3s i hand painted because the clear coat i used yellowed heavily in the engine heat. Since i didnt want to F up the intakes again i took the car to the same shop who did my front bumper and side skirts and decided while it was there to have them paint the strut brace as well. I will post some pics when the car comes back from the shop tomorrow.

I will also add the Z1 LHP struts to the rear hatch and the kit they sell for the hood when i get the car back. More pics to follow!

Love the white. Not a huge fan of the design though with the cross bar on the main hoop not being inline with the main hoop. In a roll over the only top support is the main hoop since that cross bars angled backwards.

dAvenue · 10-09-2013, 09:36 PM

Nice build. The strut brace is dope.

I'm hoping to install the same headers this weekend and bolt them on to my Z1 HFC's + Invidia CBE. How do you like yours?

NonStopTuning · 01-29-2014, 02:15 PM

This thread wins

MIKE @ NST

Mozen · 05-04-2014, 11:57 PM

Quote:

Originally Posted by dAvenue

Nice build. The strut brace is dope.

I'm hoping to install the same headers this weekend and bolt them on to my Z1 HFC's + Invidia CBE. How do you like yours?

Man i suck at keeping this tread up. I actually love to hate them if that makes much sense. They perform well *the headders* but are not really truly designed for our engines. This means that they are angled down a bit more than they should be which is fine untill you try and hook up your exhaust and realise that the new angle adds just a little bit of stress to your system. Ive been having a hell of a time getting a solid seal where my y pipe meets my cats.

Mozen · 07-27-2015, 02:28 PM

So back to updating! Lots of stuff has gone on in the meantime.

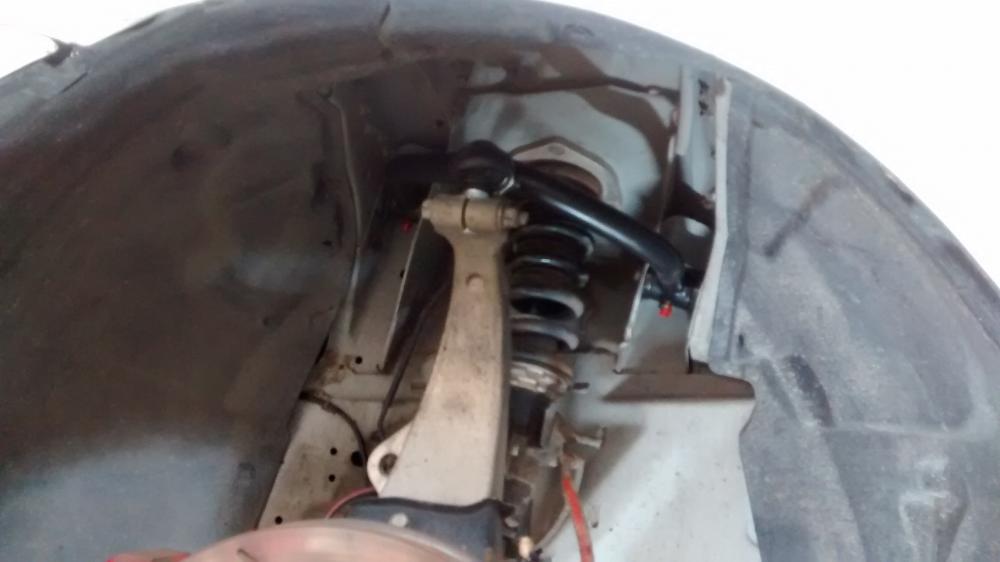

I have installed New upper arms in the front.

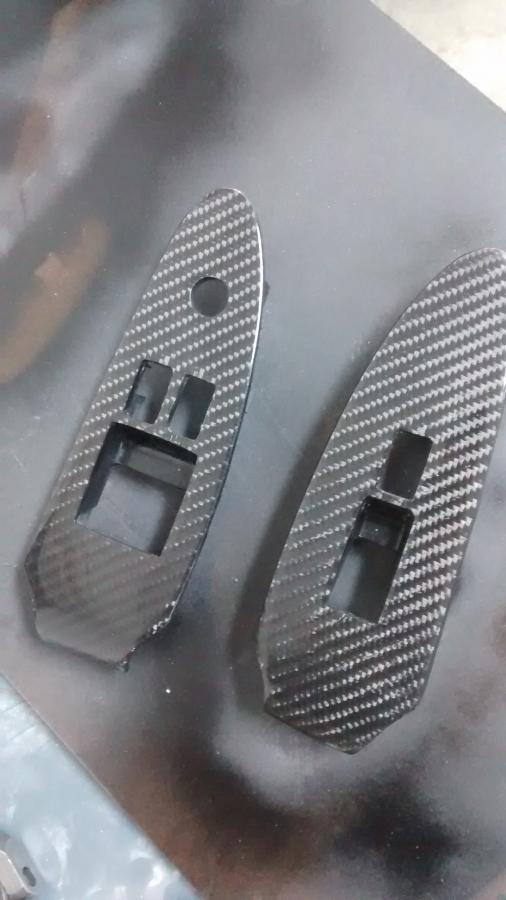

Made my own CF Skinned switch plate covers

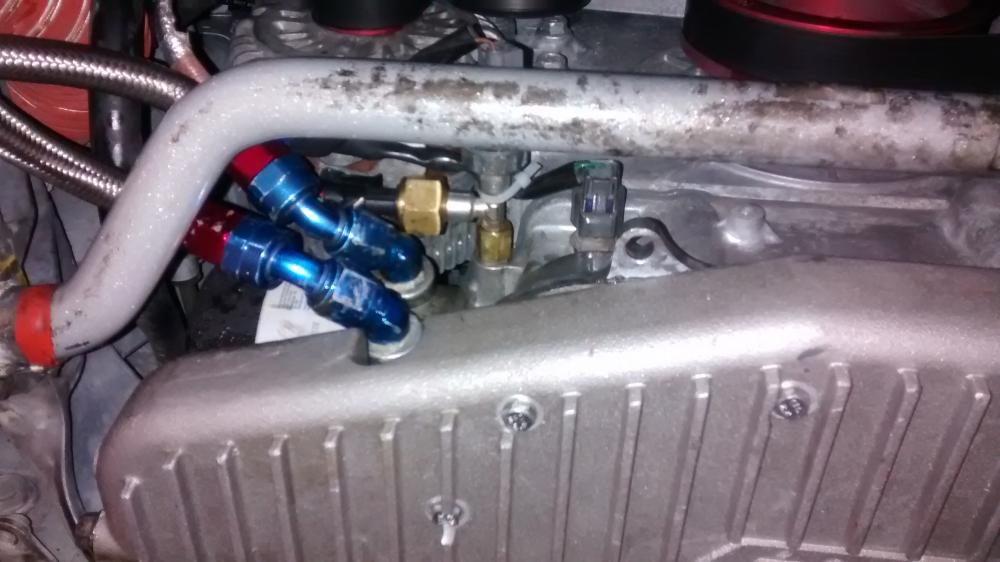

Installed a GTM Oil pan and added a boost, oil PSI, and Air Fuel Guage (boost is for next year)

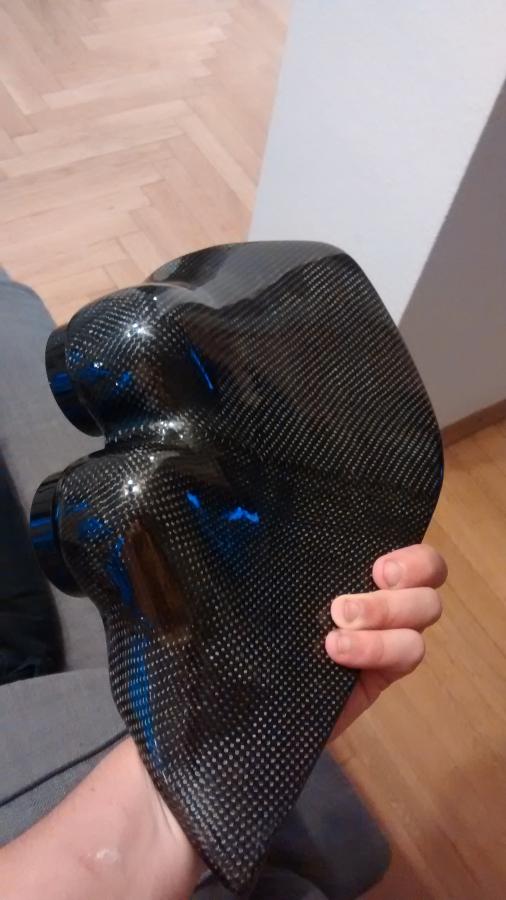

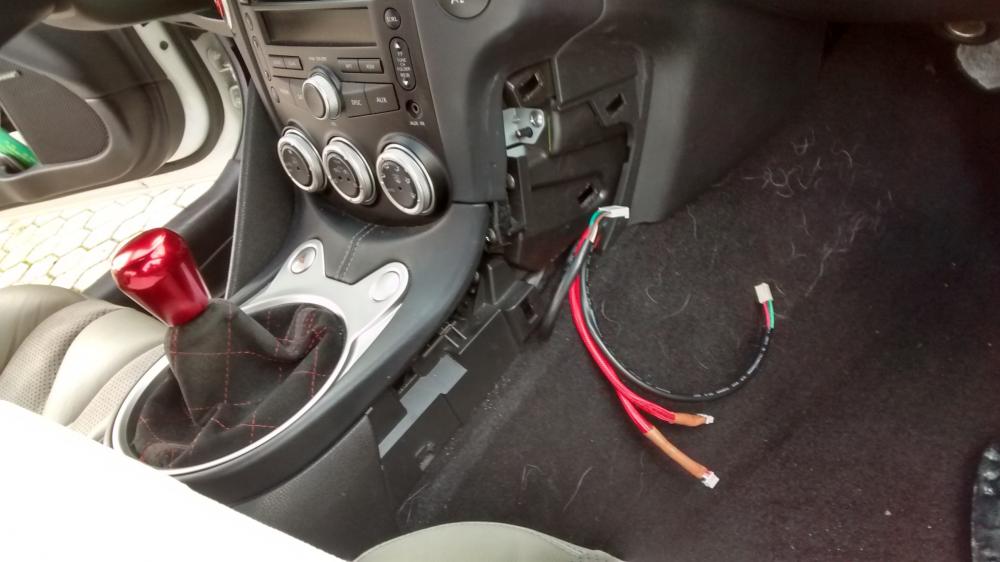

Since i added the guages i needed a place to put them...so i created my own out of the way pod cluster. The idea here was to keep them out of the way and not clutter up the dash. I know some dont like them but, just reference gauges so it works for me. All told since this was the first time i made something like this the prototypes and final version took a solid 15 hours or so to make of on and off work.

Mozen · 07-27-2015, 02:35 PM

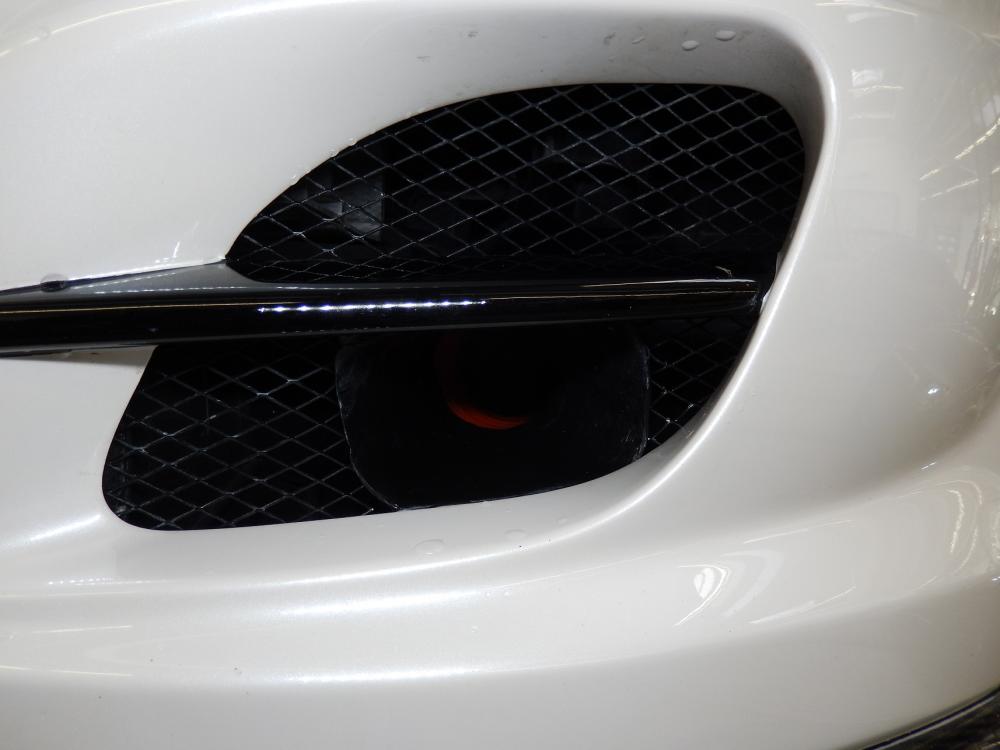

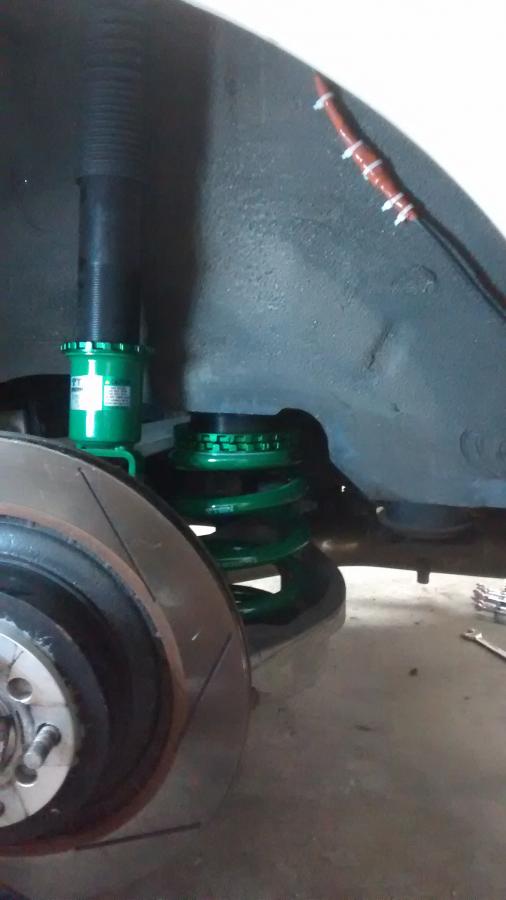

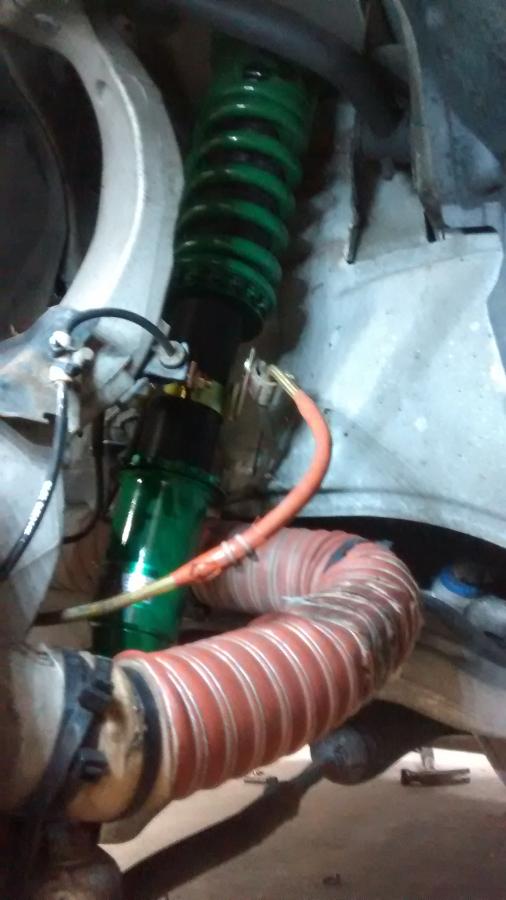

I Also added Tein Mono Sport Suspension with EDFC Active Pro and GPS along with a custom fabricated 3" Brake Cooling kit.

I have also installed the RJM Clutch pedal for better engagement with my SPEC Stage 2+ Clutch and flywheel and added the Z1 HD CSC kit to pull the CSC out of the transmission.
