Default PLX Kiwi Wifi, Dash Command, iPhone 4

So I've been looking to better monitor and follow what's going on with my car, and I stumbled across the PLX Kiwi Wifi OBD-II module. Then my App Store genius suggestions included the program Dash Command. Putting two and two together, I decided to buy them both and try them out. I've borrowed a friend's Scangauge II and it's nice but simplistic. I'm into aesthetics and like the visual experience Dash Command gives, so I went that route.

While waiting the two days for my Amazon Prime ordered PLX to be delivered, I started reading the PLX and Dash Command forums. Frankly, I freaked out. Every post in those forums is about a problem such as how the PLX and Dash Command don't communicate, the interface is too slow, the car's PIDs aren't recognized...the list goes on and on. I was sweating bullets waiting to see where I'd fall in that problem heap.

So the PLX arrived today and I downloaded Dash Command. The PLX was $150 and DC another $50, so I was nervous about my questionable $200 investment. Well, fear not my friends. The PLX plugs right into the OBD-II port and comes with a ~6ft cord. I popped the side footwell panel off (the one that incorporates the fuse box access door) and the plastic cover off the side rail along the bottom edge of the door and ran the wire behind these. It's simple to run the wire and have it exit the side rail at about mid-driver's seat. Then I Velcro'd the PLX control box to the side of the driver's seat. It gives easy access to turn the PLX on/off if you choose (OBD port gives full time power, so a long storage could kill the battery if you leave the PLX on), and I can just rip it off the velcro if I need to look at it. Install complete!

Setting up the iPhone is as simple as turning on Wifi, connecting to the PLX and entering a static IP and DNS. Then you fire up the DC program and click 'Connection'. It found my PLX immediately and I was off and running.

First thing I noticed is that the RPM doesn't read instantaneously and has about a 1 second lag. Frankly, this is not as big a deal as people make it to be...no one is going to look at RPM on this device instead of the RPM dial in the dash directly in front of you! DC logs information well and has a robust default interface with impressive MPG calculations and just about every gauge you could desire. There is a trick though to get full functionality. You have to enter a vehicle setup for your specific car. This is easy to do on the second screen of the DC menu. It takes a little time, but you enter the curb weight, wheel circumference, gear ratios, redline rpm, idle rpm, drag coefficient, etc etc. Once you do this, DC will then calculate as many variables as possible and display information in many more of the available gauges.

As I just got this, I'll be using it more over the next few days/weeks and will report back. The only down side I can see to this thing is that you have to actively turn it on, connect, and use it when you're in the car. The alternative is ScanGauge II where you just plug it in and it turns on/off automatically requiring no user intervention. The trade off is a very appealing interface on DC. Everything comes at a price.









__________________
2013 Cadillac V-Wagon, RIP Z

Last edited by spearfish25; 04-06-2011 at 06:19 PM.
spearfish25 is offline   Reply With Quote
Old 04-05-2011, 10:28 PM   #2 (permalink)
Premium Member

TreeSemdyZee's Avatar

Join Date: Dec 2009
Location: Kentuck-IANA
Age: 59
Posts: 4,875
Drives: '09 370 & ‘14 Juke
Rep Power: 27408
TreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond reputeTreeSemdyZee has a reputation beyond repute
Default

Sounds pretty cool. Just curious. Where does the Wifi come into play? Is it between the unit and your iPhone. I know. Dumb question, I'm trying to visualize the setup.
TreeSemdyZee is offline   Reply With Quote
Old 04-05-2011, 10:48 PM   #3 (permalink)
Base Member

supunna_picta's Avatar

Join Date: Mar 2011
Location: Englewood, CO
Posts: 102
Drives: Red 370z
Rep Power: 14
supunna_picta is on a distinguished road
Default

I just bought this setup but it was the Kiwi Bluetooth version and an android powered phone running Torque (~$5US, pretty cheap for the power the app has). Look into other apps in the iPhone market as I think there were about 4 or 5 on the kiwi website but for different platforms.

The logging in Torque is pretty cool for monitoring vehicle stats on trips or at the track with a OTA upload as an excel file. I think I even saw other software for track map overlays that when coupled with the GPS, OBDII Data and accelerometer in your phone/kiwi gives you a buttload of track data as you do lap after lap.

For android users: Torque — OBD2 Performance and Diagnostics for your Vehicle

The wireless OBDII connector:
PLX Kiwi Bluetooth Buy Now- Connect your Droid mobile device to your car's OBD2 OBDII Port

There should be some settings for interval/smoothing for RPM and other 'fast' data (like g-meter). Have you noticed any cool, unexpected PID's for the Z? I've only used mine on our WRX (picking up my Z on Friday).
__________________
2011 Touring/Sport/6mt | winter: 2009 WRX
supunna_picta is offline   Reply With Quote
Old 04-05-2011, 10:57 PM   #4 (permalink)
Base Member

supunna_picta's Avatar

Join Date: Mar 2011
Location: Englewood, CO
Posts: 102
Drives: Red 370z
Rep Power: 14
supunna_picta is on a distinguished road
Default

DashCommand is a little pricey but has a very nice interface and dash gauges and it looks like it has a lite version of the Track mapper. Very cool - if the Android version is as good as the iPhone I might have to pick it up!

Do you know if it does 0-60 and 1/4 mile measurements?
__________________
2011 Touring/Sport/6mt | winter: 2009 WRX
supunna_picta is offline   Reply With Quote
Old 04-05-2011, 11:21 PM   #5 (permalink)
A True Z Fanatic

Red__Zed's Avatar

Join Date: Jul 2010
Location: window seat
Posts: 28,940
Drives: Mostly on two wheels
Rep Power: 119
Red__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond reputeRed__Zed has a reputation beyond repute
Default

Should allow for a very clean setup. Interested to see how it works out.
Red__Zed is offline   Reply With Quote
Old 04-06-2011, 05:58 AM   #6 (permalink)
A True Z Fanatic

spearfish25's Avatar

Join Date: Mar 2009
Location: Naples, FL
Posts: 4,117
Drives: to work
Rep Power: 1856
spearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond repute
Send a message via AIM to spearfish25
Default

The PLX gives a wifi link of the OBDII info to the iPhone via an adhoc wifi network. So you don't plug your phone into anything.

I'll keep an eye out for interesting PIDs. I did notice the software tries to break data into right, left, or average. Strangely, right and left are never the same. For example my left intake temp says 120F and the right says 80F. Same thing happens for catalyst temp, MAP, MAF, etc. Not sure where it's getting the second value from or why they differ.

No 1/4mi or 0-60 that I've seen. It is supposed to map your track laps and give color overlays of g forces. I'll keep you guys posted as I test it more.
__________________
2013 Cadillac V-Wagon, RIP Z
spearfish25 is offline   Reply With Quote
Old 04-06-2011, 09:37 AM   #7 (permalink)
A True Z Fanatic

docaam's Avatar

Join Date: Nov 2009
Location: Dubai
Posts: 2,532
Drives: Z34/240z/Hakosuka
Rep Power: 28
docaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond reputedocaam has a reputation beyond repute
Default

Any screen shots
docaam is offline   Reply With Quote
Old 04-06-2011, 11:39 AM   #8 (permalink)
Track Member

puckshaw's Avatar

Join Date: Nov 2009
Location: Charlotte, NC
Posts: 620
Drives: 09 PW 370Z Touring
Rep Power: 16
puckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to all
Default

I picked out the same hardware and software as you and was going to place my order in the next week or so. I had read about the troubles too and was worried it was going to be a disappointment so I'm glad to see it actually works well.

Can you list out all the parameters that can be monitored for our car? I heard that we have stock wideband sensors and can read A/F from our OBDII. Can you confirm that?

Thanks!
puckshaw is offline   Reply With Quote
Old 04-06-2011, 02:11 PM   #9 (permalink)
A True Z Fanatic

Join Date: Aug 2009
Location: N/A
Posts: 76,801
Drives: N/A
Rep Power: 141520
kenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond repute
Default

spearfish- that's pretty cool. please post up picts.
kenchan is offline   Reply With Quote
Old 04-06-2011, 03:51 PM   #10 (permalink)
A True Z Fanatic

djpathfinder's Avatar

Join Date: Mar 2010
Location: Edmonton, Canada
Posts: 12,910
Drives: 2012 GT-R BE
Rep Power: 733
djpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond reputedjpathfinder has a reputation beyond repute
Default

I've had the PLX used with Rev on my iPhone for about to read and clear codes. It's worked well with a 2002 Maxima, 2005 FX45, 2007 Z4 M Coupe and the 370Z of course. I haven't played around with all the accessory functions much, does sound like there's a lot of cool stuff.
__________________
2012 GT-R Black Edition Jet Black
2010 370Z 40th Anniversary // SOLD
djpathfinder is offline   Reply With Quote
Old 04-06-2011, 03:52 PM   #11 (permalink)
A True Z Fanatic

Join Date: Aug 2009
Location: N/A
Posts: 76,801
Drives: N/A
Rep Power: 141520
kenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond repute
Default

spearfish is scratching his head how to take picture while camera (iphone) is what needs to be photographed...
kenchan is offline   Reply With Quote
Old 04-06-2011, 06:14 PM   #12 (permalink)
A True Z Fanatic

spearfish25's Avatar

Join Date: Mar 2009
Location: Naples, FL
Posts: 4,117
Drives: to work
Rep Power: 1856
spearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond repute
Send a message via AIM to spearfish25
Default

Quote:
Originally Posted by kenchan View Post
spearfish is scratching his head how to take picture while camera (iphone) is what needs to be photographed...
LOL. I did have a momentary 'WTF am I going to do to get a picture' thought. Then I started clicking screen shots. I use the ProClip to hold the iPhone on the passenger knee pad...no magic there.

It looks to monitor:
RPM
Speed
Acceleration
HP, Torque (neither of which seem close to accurate currently)
Fuel flow
Fuel level
A/F ratio (lamda)
Catalyst temp
Intake temp
Timing
Fuel trims
Throttle position
MAP
MAF
MPG (calculated based on all kinds of ****)
Tracks time in each gear, Distance in each gear
CO2 emissions

Couple things that are odd or not working:
- Ambient temp doesn't work
- Torque and HP are obviously untrustworthy and calculated. The figures are just stupid and I'd prefer it wasn't included.
- It knows the gear you're in based on your drive ratios (you type in), RPM, and RPM limits (you enter the redline, min RPM, and shift point). I don't know what makes it consider the gear to be 'wrong'. I'm going to play with the shift point RPM since my 6th gear highway time is similar to the 'wrong gear time' and I was probably at 3100 RPM with the shift point set at 3k rpm. I bumped it up to 4k and we'll see what happens.

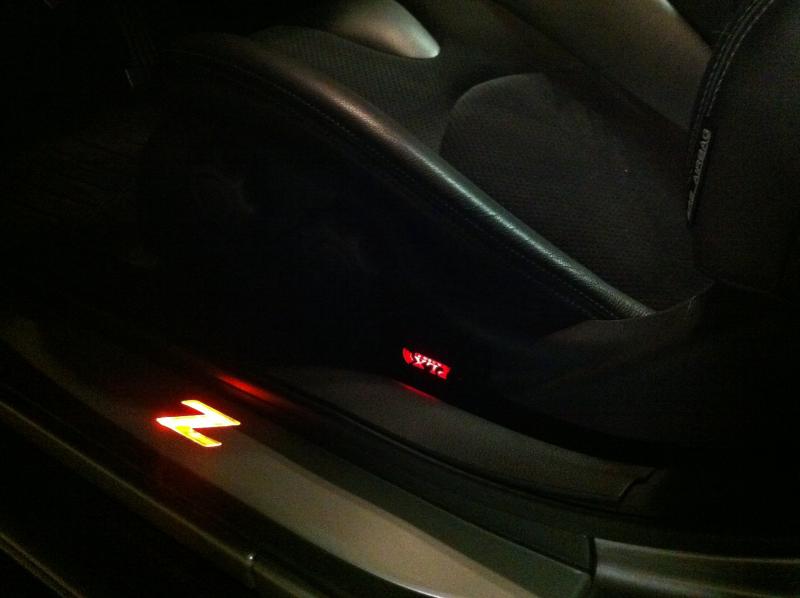

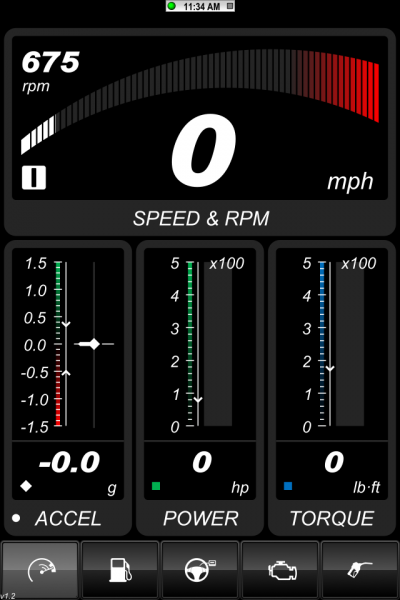

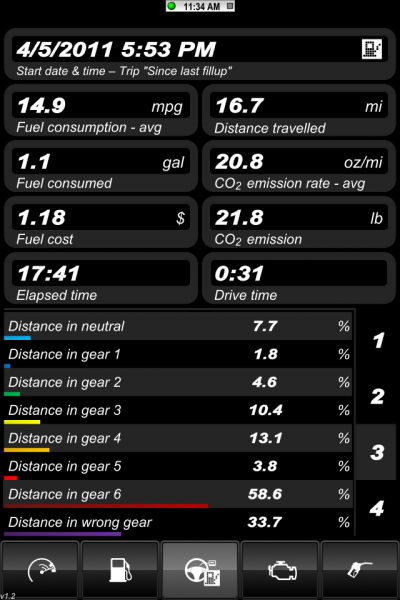

Here are some shots: You can see the PLX mounted with Velcro on the driver's seat for easy access. Also, this is the default dashboard skin. There are many others you can download, although I think this is by far the most robust. Also, you can make your own if you can figure out their software.









__________________
2013 Cadillac V-Wagon, RIP Z

Last edited by spearfish25; 04-06-2011 at 08:33 PM.
spearfish25 is offline   Reply With Quote
Old 04-06-2011, 06:54 PM   #13 (permalink)
A True Z Fanatic

Join Date: Aug 2009
Location: N/A
Posts: 76,801
Drives: N/A
Rep Power: 141520
kenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond repute
Default

hahaha. Dayam, looks good!
kenchan is offline   Reply With Quote
Old 04-07-2011, 08:55 AM   #14 (permalink)
A True Z Fanatic

fuct's Avatar

Join Date: May 2009
Location: Sugar Land
Posts: 3,692
Drives: 97' Ranger :)
Rep Power: 23
fuct has much to be proud offuct has much to be proud offuct has much to be proud offuct has much to be proud offuct has much to be proud offuct has much to be proud offuct has much to be proud offuct has much to be proud offuct has much to be proud offuct has much to be proud of
Default

wow, your in the wrong gear alot!!!!! (oops just reread your post)

and check out the time on your phones screen shots! 11:34 hell
fuct is offline   Reply With Quote
Old 04-07-2011, 11:58 AM   #15 (permalink)
Track Member

puckshaw's Avatar

Join Date: Nov 2009
Location: Charlotte, NC
Posts: 620
Drives: 09 PW 370Z Touring
Rep Power: 16
puckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to allpuckshaw is a name known to all
Default

Nice! Thanks for posting the details up! +rep
