Default DIY: illuminated kick plates color change

ok, so I read on the other threads here that you couldnt change the color of the illuminated kick plates because it doesnt have a bulb. However, doing electronics for LVMPD for a living and not accepting "NO" for an answer in general, I went ahead and changed the colors and decided to do a complete DIY for anyone else interested.

This is something I only recommend for experienced DIY'ers. If you have never done a DIY with simple electronics before, you may damage any part of the kick plates and it could render it ugly or unusable.

Anyhow, here's how it all began, I ordered a PG 370z and didnt like the idea of having an orange light with a silver car, so i decided to rip apart a kick plate and see what kind of LED i would need to turn the orange into white LED's.

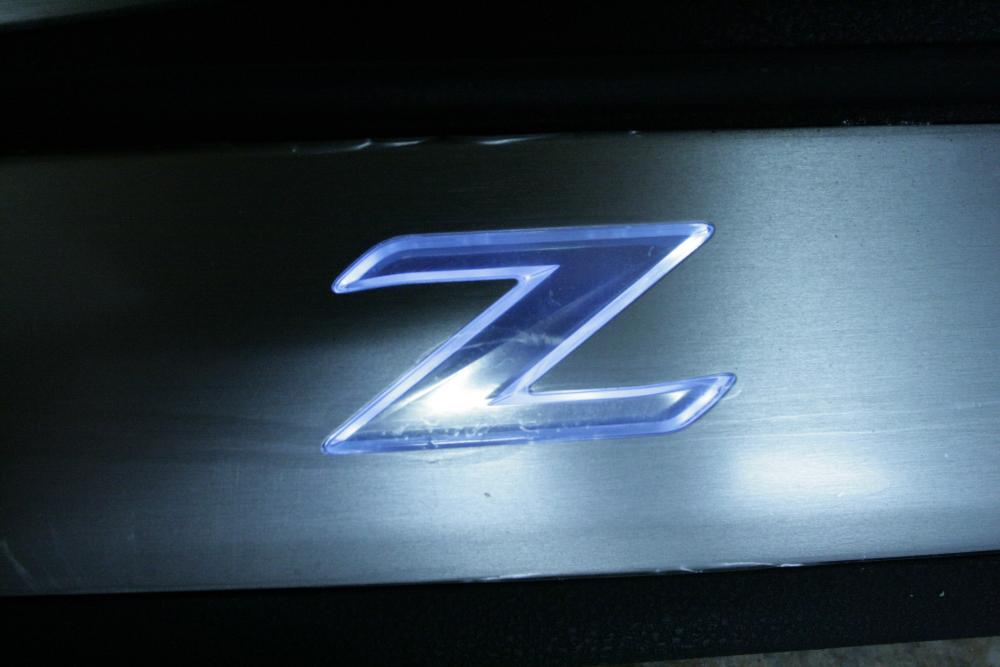

picture of the old color:


Now flip it upside down and you'll see tabs that need to be bent upwards to allow the plastic peice to slip off:


upclose of the tabs after i had them flipped up:

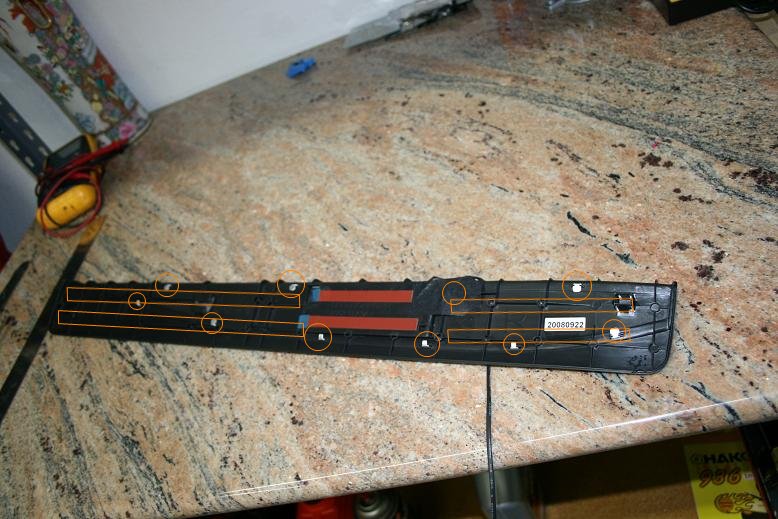

For reference, all of the circles are tabs that need to be bent. Yes there is a tab under the cloth tape in the picture below. And the rectangular boxes are where the glue/double sided tape is located. the glue is holding the aluminum top piece to the plastic bottom piece.


once you get the tabs open, carefully pry the ends open and then scrape the double sided tape off that holds the two pieces together:






You need to make sure you are very careful when you stick something in between the two to open it up. Use something long and flat and dont allow any sharp points to hit the metal part or else you'll cause damage to be visable from the other side,
[

once you get it off, this is what you will see (use this image to see where you need to seperate the double sided tape without poking the aluminium:


Now, lift the tape off the box thats on the metal section and then cut the caulking that is holding it on:






once you cut the glue off and pry the "box" off, this is what you will have:


Now you need to pry the metal cover from the "box" open, and take the plastic Z out:




carefully cut away the LED board from the plastic Z. It is also held on by clear caulking, so carefully cut it away and then you'll have two LED boards per side, I circled the actual LED's that need replacement:









Those items that I have circled and look white, thats the LED and its a 1mm LED. I used the white LED's here: SMD LED (UT-692NW)
You can use any of the color LED's on that website, or any site, just make sure its a SMD LED around 1mm.
This is where the hard part comes because you need to solder off the old LED's and solder on the new ones, I am not to be held accountable and am warning anyone who isnt familiar with this not to do the soldering. these are very small parts and can easily be messed up.

When you have your new LED's on, make sure the LED's work. before you REVERSE THE ORDER of everything. putting it back together is the easy part, just make sure you have clear caulking in hand to glue the parts back together.

if you have any questions i'll try to answer them, I love my new illuminated kick plates and cant wait to put them in my car (gotta wait for it to arrive first ha!)





OH YEAH, dont forget the rep points if you found this useful, took me a while to get the pics uploaded and posted on here with this DIY

and a BIG THANK YOU!!!! TO VIPOR, for hosting these images for all of you to see!!

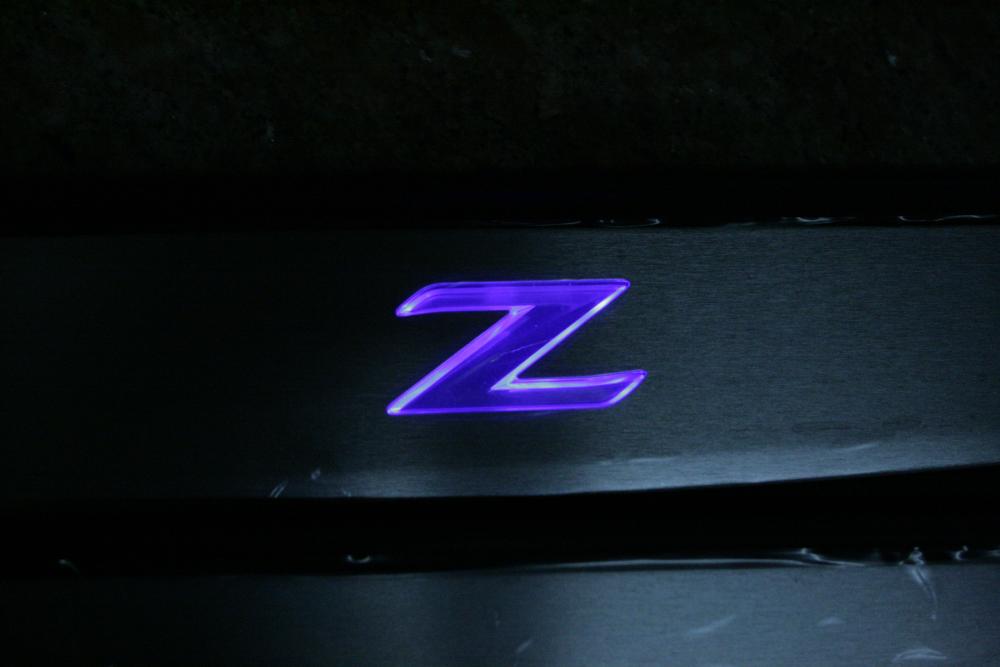

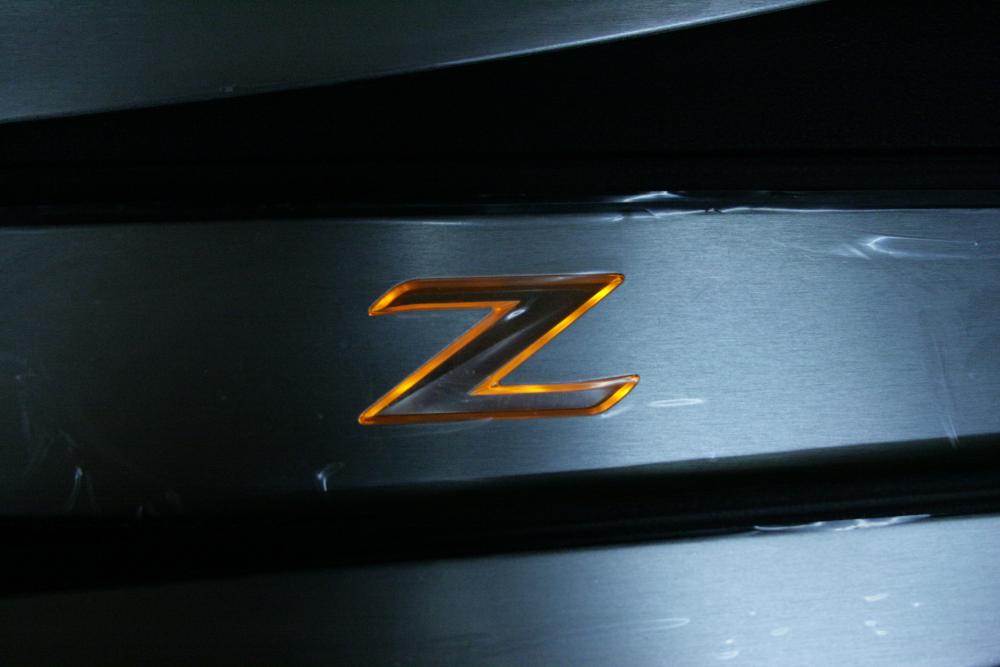

the other colors:




Last edited by Cjanik; 11-04-2009 at 12:07 AM.
Cjanik is offline   Reply With Quote
Old 06-24-2009, 08:49 PM   #2 (permalink)
A True Z Fanatic

k20z3's Avatar

Join Date: May 2009
Location: Denver CO
Age: 29
Posts: 2,146
Drives: 2006 Civic SI HFP
Rep Power: 400
k20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond reputek20z3 has a reputation beyond repute
Default

Good man someone should enjoy this
Chaddrift likes this.
__________________

2006 RALLYE RED HONDA CIVIC SI HFP
Clint's Helpful Photoshop Hints!
k20z3 is offline   Reply With Quote
Old 06-24-2009, 09:03 PM   #3 (permalink)
Administrator

AK370Z's Avatar

Join Date: Sep 2008
Location: NJ
Posts: 9,917
Drives: 09 370Z MB Sports M6
Rep Power: 10
AK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond repute
Default

Absolutely amazing! Two thumbs up. I respect your courage to do such mod.
__________________
The370Z Signature Pictures ll Want to rock our forum decals on your car? Then click here! ll How to Embed YouTube Videos In a Post
STOP! (Hammertime) ll Become a Premium Member Click HERE ll F.A.Q.
Are You a Nissan Dealer? Click Here to Become A "Supporting Dealer" and Start Listing Your 370Zs In Our Inventory Section
My Monterey Blue Z ll My Exhaust --> My Intake --> G3
Nissan's Official Response Regarding Oil Temp Issue: CLICK HERE
Need a Set of Cheap Winter wheels /Tires? Then Visit The Banner Link Below and Place Your Order. You'll Help Keep The370Z Alive.
AK370Z is offline   Reply With Quote
Old 06-24-2009, 09:18 PM   #4 (permalink)
Base Member

Join Date: May 2009
Location: San Antonio, TX
Age: 35
Posts: 67
Drives: 05 RSX-S
Rep Power: 201
vater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond reputevater has a reputation beyond repute
Send a message via AIM to vater
Default

very nice work. So you mentioned you don't have the car yet...where did you order the iKick plates from ?
vater is offline   Reply With Quote
Old 06-24-2009, 09:39 PM   #5 (permalink)
A True Z Fanatic

ejrives's Avatar

Join Date: Apr 2009
Location: Illinois
Posts: 1,449
Drives: 09-6MT-T/S/N
Rep Power: 13
ejrives is a glorious beacon of lightejrives is a glorious beacon of lightejrives is a glorious beacon of lightejrives is a glorious beacon of lightejrives is a glorious beacon of lightejrives is a glorious beacon of light
Send a message via Skype™ to ejrives
Default

+1
__________________

"In a time of universal deceit, telling the truth is a revolutionary act."
Stillen G3 CAI || 35% tints || FI CBE coming soon...
ejrives is offline   Reply With Quote
Old 06-24-2009, 09:41 PM   #6 (permalink)
Track Member

Cjanik's Avatar

Join Date: May 2009
Location: Las Vegas
Posts: 578
Drives: N/A
Rep Power: 12
Cjanik has a spectacular aura aboutCjanik has a spectacular aura about
Default

Quote:
Originally Posted by vater View Post
very nice work. So you mentioned you don't have the car yet...where did you order the iKick plates from ?
I got it from Welcome To The Z Store! Nissan-Datsun 240Z-260Z-280Z-280ZX-300ZX(Z31/Z32)-350Z-370Z Parts!

that site has some very good prices in comparison to other places.
Cjanik is offline   Reply With Quote
Old 06-25-2009, 09:22 PM   #7 (permalink)
Track Member

Join Date: May 2009
Location: SoCal
Posts: 887
Drives: BMW 335i Sport
Rep Power: 12
VCuomo will become famous soon enoughVCuomo will become famous soon enough
Default

Hmmm... I wonder how bright blue LEDs would work out?????.....
VCuomo is offline   Reply With Quote
Old 06-25-2009, 11:10 PM   #8 (permalink)
Track Member

Cjanik's Avatar

Join Date: May 2009
Location: Las Vegas
Posts: 578
Drives: N/A
Rep Power: 12
Cjanik has a spectacular aura aboutCjanik has a spectacular aura about
Default

^^ there are some very bright blue LED's out now. I think it would be a darkish sky blue.
Cjanik is offline   Reply With Quote
Old 06-25-2009, 11:32 PM   #9 (permalink)
A True Z Fanatic

phelan's Avatar

Join Date: Apr 2009
Location: CA
Age: 34
Posts: 9,514
Drives: Scoobaroo
Rep Power: 3401
phelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond repute
Default

i'd be all over this with red LEDs, but the fear of breaking the IKP would overwhelm me...

excellent job with the DIY, though, gotta give rep
phelan is offline   Reply With Quote
Old 06-25-2009, 11:42 PM   #10 (permalink)
A True Z Fanatic

SoCal 370Z's Avatar

Join Date: Feb 2009
Location: US of A
Posts: 2,842
Drives: Answers
Rep Power: 29
SoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond repute
Thumbs up

Rep points all the way! You're the first to do this who has posted on the forum!
__________________
( Click to show/hide )
SoCal 370Z is offline   Reply With Quote
Old 06-26-2009, 11:03 AM   #11 (permalink)
A True Z Fanatic

phelan's Avatar

Join Date: Apr 2009
Location: CA
Age: 34
Posts: 9,514
Drives: Scoobaroo
Rep Power: 3401
phelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond repute
Default

Quote:
Originally Posted by Cjanik View Post
This is where the hard part comes because you need to solder off the old LED's and solder on the new ones, I am not to be held accountable and am warning anyone who isnt familiar with this not to do the soldering. these are very small parts and can easily be messed up.
Cjanik, question: how did you solder these LEDs on? It looks waaaay too small to use a soldering gun, did you use an oven to work with them?
phelan is offline   Reply With Quote
Old 06-26-2009, 11:15 AM   #12 (permalink)
Track Member

Cjanik's Avatar

Join Date: May 2009
Location: Las Vegas
Posts: 578
Drives: N/A
Rep Power: 12
Cjanik has a spectacular aura aboutCjanik has a spectacular aura about
Default

No, I used a soldering Iron because the tip is small enough to just touch the solder patch on the LED's side. The contact patch where the solder is on the board is big enough that you just have to touch the solder and it will melt the LED loose on one side, then repeat for the other side of the LED.

when i put the new LED down, I did not use new solder, I just layed the LED down, used needle nose pliers to hold it in place, and then heated up the two solder spots again, which made contact to the LED's sides and that was it.


if you look at the last picture of the LED board I took, (the really blown up one), you can see that the contact patch is as big, if not bigger than the LED itself. plenty of room to touch the tip of the soldering iron with.

Last edited by Cjanik; 06-26-2009 at 11:17 AM.
Cjanik is offline   Reply With Quote
Old 06-26-2009, 12:27 PM   #13 (permalink)
Car Audio Installer

bigaudiofanat's Avatar

Join Date: Jun 2009
Location: New Castle DE
Posts: 8,312
Drives: 2012 Infiniti G37x
Rep Power: 848
bigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond reputebigaudiofanat has a reputation beyond repute
Send a message via AIM to bigaudiofanat Send a message via Yahoo to bigaudiofanat Send a message via Skype™ to bigaudiofanat
Default

Quote:
Originally Posted by AK370Z View Post
Absolutely amazing! Two thumbs up. I respect your courage to do such mod.
Hmm we need to do this to your car I got the skills for led's
__________________
Need help with car audio or electronics? Let me know!! Also were all my installs will be posted. Need Help Let Me Know
Direct email address reimermatt@gmail.com
Owner of: Dynamic Mobile Audio
bigaudiofanat is offline   Reply With Quote
Old 06-26-2009, 01:22 PM   #14 (permalink)
A True Z Fanatic

phelan's Avatar

Join Date: Apr 2009
Location: CA
Age: 34
Posts: 9,514
Drives: Scoobaroo
Rep Power: 3401
phelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond repute
Default

Quote:
Originally Posted by Cjanik View Post
No, I used a soldering Iron because the tip is small enough to just touch the solder patch on the LED's side. The contact patch where the solder is on the board is big enough that you just have to touch the solder and it will melt the LED loose on one side, then repeat for the other side of the LED.

when i put the new LED down, I did not use new solder, I just layed the LED down, used needle nose pliers to hold it in place, and then heated up the two solder spots again, which made contact to the LED's sides and that was it.


if you look at the last picture of the LED board I took, (the really blown up one), you can see that the contact patch is as big, if not bigger than the LED itself. plenty of room to touch the tip of the soldering iron with.
Oh, seriously? I didn't look hard enough, I guess.

...Okay, that's it, some red LEDs are coming my way. Thanks again for the write up and inspiration
phelan is offline   Reply With Quote
Old 06-26-2009, 04:27 PM   #15 (permalink)
Track Member

Cjanik's Avatar

Join Date: May 2009
Location: Las Vegas
Posts: 578
Drives: N/A
Rep Power: 12
Cjanik has a spectacular aura aboutCjanik has a spectacular aura about
Default

^^ post pictures when your done! I was contemplating red ones for a while then decided to go with white. Would like to see what the red looks like.
Cjanik is offline   Reply With Quote
