Talking sixpax Journal

Modifications and Technical Information

2010 Nissan 370Z Touring Black Cherry 7-Speed Automatic with Paddle Shifters

One of only forty (40) produced in this configuration, according to the unofficial production build calculator.

Engine Management

UPREV Engine Management Solutions
Current Dyno: 323.9 rwHP 280.6 rwTQ
ECU Maps: 93 Octane, 91 Octane

Engine

3.7L V-6 Double Overhead Cam with VVT (VQ37)
Kinetix Racing High Velocity Intake Manifold **
Custom Cork Manifold and TB Gaskets
Z-1 Motorsports 25 Row SETRAB Oil Cooler Kit
Z-1 Motorsports MOCAL Thermostatic Adapter
Z-1 Motorsports Oil Cooler Upper Mount Kit
Unorthodox Racing Aluminum Crank Pulley
Unorthodox Racing Aluminum Alternator Pulley
Gates Racing K070810RB Serpentine Belt - Micro-V High Performance V-Ribbed Belt
CJ Motorsports Billet Fuel Tap and Pressure Gauge
Circuit Sports DIS Ignition Amplifier System
Stillen Grounding Kit
K&N Twin Typhoon Cold Air Intakes
Thermo-Tek Cool Tube Intake Tube Heat Sleeves
Enjuku Racing Gold Foil Coated Heat Shields
Saikou Michi Dual Oil Catch Cans
Koyo 1.3 Bar High Pressure Racing Radiator Cap
Z-1 Motorsports Silicone Radiator Hoses
Z-1 Motorsports Silicone Heater Hoses
Z-1 Motorsports Silicone Radiator Overflow Hoses
Z-1 Motorsports Silicone CAI Breather Hoses
Nissan Motorsports (NISMO) Ratcheting Oil Filler Cap
TiTek M12 Titanium Magnetic Oil Drain Plug
Z-1 Motorsports Hydraulic Hood Struts
Custom Painted Strut Tower Brace
Future: Z-1 Motorsports Power Steering Cooler
Future: CSF Aluminum Radiator
Future: JUN Motorsports High Lift Cams
Future: ARP Studs

Exhaust

ARK Performance Grip 2V2 Cat Back System with Burnt Titanium Tips
Berk Technologies (HFCs)
Future: Tomei Expreme DE Headers & Test Pipes

Brakes

EBC USR Ultimax Black Slotted Rotors
EBC Bluestuff NDX Brake Pads (Street)
EBC Yellowstuff Brake Pads (Track)
Wilwood Vinyl Coated and Braided Stainless Steel Brake Lines
Stillen Motorsports Front Brake Cooling Kit
Auto Craft RHD Japan Brake Booster Reserve Canister (Firewall Mounted)
Motul RBF 600 Racing Brake Fluid
Motive 1107 Power Bleeder

Suspension

ARK DT-P Racing Coilovers
Springs: 12 kg/mm (F) 11 kg/mm (R)
Pillow Ball Mounts
16 Level Dampening Adjustments
SPL Pro Titanium Rear Camber Arms
Hotchkis Sway Bar (F) 35mm
Hotchkis Sway Bar (R) Adjustable (3-Way) 28.5mm
Hotchkis CNC Billet Sway Bushings
SPL Pro Front Endlinks with 1/2" FK Bearings
SPL Pro Front Endlinks with 1/2'' FK Bearings
SPL Pro Titanium Rear Traction Arms
Future: SPL Eccentric Lockout Kit
Future: SPL PRO Front Camber Arms

Interior

Modified Interior Rear Coilover Access Holes
Corbeau VX-2000 Racing Seats
Corbeau Custom Dual Lock Brackets
Corbeau 4 Point Harness Belts
Future: Robispec Racing Harness Bar
Future: AFR and Oil Pressure Gauges

Exterior

Empire Graphics custom motor sports design
Custom Front Fascia Fang Air Ducts ***
JDM F-1 Style Rear Brake Light
Kahtec Smart Blink Module
Plasti-Dipped Black Emblems
Custom Kimberly-Clark's Evolution® Car Cover
Stillen Front Fascia Canards
Stillen Front Fascia Splitter with Adjustable Turnbuckles
Aero Jacket Carbon Fiber Rear Vortex Generators
Custom Aluminum Mounting Plates
Kognition Designs 68" GT Carbon Fiber Adjustable Rear Wing
AoA Adjustable from 5-12 Degrees
Hotchkis CNC Billet Quick Release Hood Pins

Wheels and Tires

H&R Trak Spacers 15mm (R)
Vertini Racing Drift Gold Wheels
(F)19x9.0 5x114.3 (R) 19x10.5 5x114.3
Michelin Pilot Super Sports
(F) 255/35/19 (R) 295/30/19
NRG Black Chrome Aluminum Open End Lug Nuts

Notes:

** This is a rare prototype piece, only three were ever made. They were all slightly different in design, mostly in the chamber size. We are not certain which of three we have.

*** Feed air from the front fascia opening to the stock air box inlets to feed cold air to the CAIs
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 04-28-2014 at 08:17 PM.
sixpax is offline   Reply With Quote
Old 01-30-2012, 04:03 PM   #2 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

....couple shots at the dealer before I picked it up. It was on the showroom floor, and had to wait awhile to get it outside. Had 19.4 miles on it, never been titled and was purchased on 05/25/2011.





First thing I did was get the windows tinted at a place here locally, and that turned out to be a disaster. More on that later.

...then at 5,000 miles I decided to buy it some presents...an Ark Grip version 2 CBE, some Berk HFCs and a K&N Typhoon intake:

__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 03-24-2012 at 11:45 AM.
sixpax is offline   Reply With Quote
Old 01-30-2012, 04:04 PM   #3 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

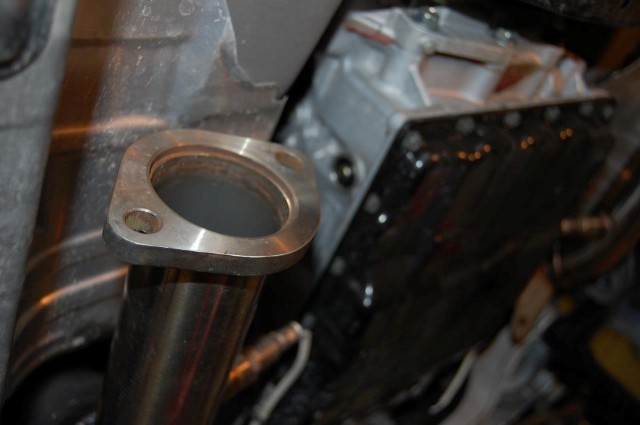

Berk HFC installation on 01/28/2012. One thing we had to do to reach the top cat bolt on the driver side in a straight shot was unhook the steering shaft at the bottom so we could kick it to the right a little. I never read where anyone else had to do that so I guess my car is slightly weird. Besides that, all the bolts broke free pretty easy.



...mounted with the O2 sensor reconnected.



__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 04-21-2012 at 09:03 PM.
sixpax is offline   Reply With Quote
Old 01-30-2012, 04:05 PM   #4 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

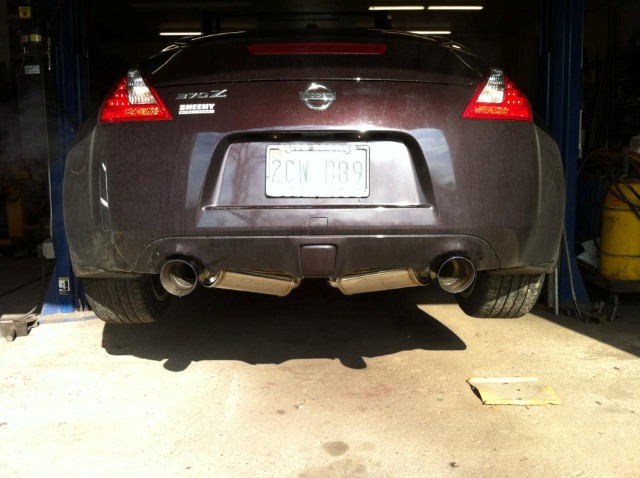

ARK Grip 2V2 installation on 01/28/2012.



Have to do a better job of getting things to line up ... I went backwards it seems, tightening from the HFCs back to the tips. Going to try to loosen everything back up, and tighten from the tips back to the HFCs.



...readjusted everything 2/2/2012. This is as good as it gets. A big improvement I think. Having a lift helps a great deal. I had this done at Fast Line Performance in Brandywine, Maryland. The owner is a pretty smart cat who loves his job so the car was in good hands. The easiest thing he did, was a tall stand that had a flat metal bar welded to it horizontally, like a shelf. He loosened the back hangar bolts, and the bolts at the first pipe joint, and then raised the "shelf" with a piece of carpeting on it up to the point that it was holding both cans in the same spot. Then tightened everything back up. Slight bend of the left side rear hangar was necessary, that was done by locking a giant pipe wrench on the hangar, and then sliding a long metal tube over the end of the wrench for leverage, and then carefully easing it to where we wanted it. Only took about 30 minutes. I left a happy camper.



...from a lower angle...looks perfect



...gotta love those burnt tips. Damn the car is filthy though.

__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 04-22-2012 at 09:03 AM.
sixpax is offline   Reply With Quote
Old 01-30-2012, 05:59 PM   #5 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

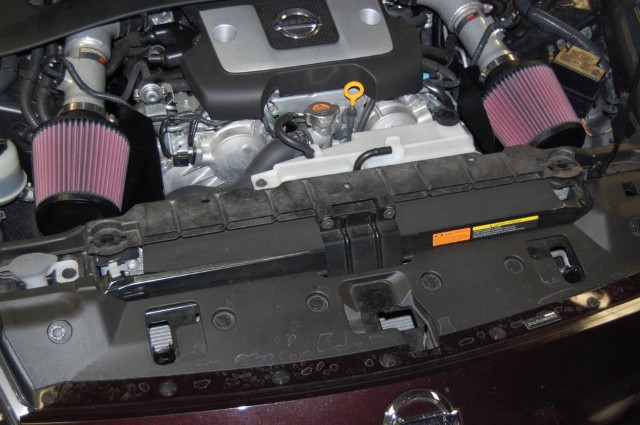

K&N Typhoon installed on 01/28/2012...

Stock intakes all removed. Had the MAF sensors all wrapped up pretty good to keep them clean and safe. If I had to do it again, I would remove them entirely and stick them in plastic baggies just to be safer.



...all done with installing. I didn't put the supplied rubber edging around the heat shields yet. Might leave it off, looks kind of stock they way it is. The hood comes no where near touching them, and they don't rattle on anything so not sure what the purpose is of the rubber they supplied. Had to cut a few inches of one off the hoses, passenger side, as it was so long it was kinking a little too much.

__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 04-21-2012 at 09:10 PM.
sixpax is offline   Reply With Quote
Old 01-30-2012, 08:19 PM   #6 (permalink)
A True Z Fanatic

Join Date: Apr 2011
Location: Los Gatos, CA
Posts: 1,027
Drives: Lexus CT
Rep Power: 12
anthonyy will become famous soon enough
Default

nice progress
anthonyy is offline   Reply With Quote
Old 01-30-2012, 09:01 PM   #7 (permalink)
@GaleForce370z Instagram

GaleForce's Avatar

Join Date: Aug 2011
Location: Ontario, Canada
Posts: 21,749
Drives: Varis Arising II
Rep Power: 51861
GaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond reputeGaleForce has a reputation beyond repute
Default

My car was like that when I put the HFC on. I should have unbolted the steering shaft but I had already farted around with it for so long that I was determined to do it without. I can be a stubborn SOB sometimes. lol

You have some good parts there, making nice progress! Enjoy!
__________________
GaleForce is offline   Reply With Quote
Old 01-30-2012, 09:32 PM   #8 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Quote:
Originally Posted by anthonyy View Post
nice progress
Thanks !
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 01-30-2012, 09:34 PM   #9 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Quote:
Originally Posted by GaleForce View Post
My car was like that when I put the HFC on. I should have unbolted the steering shaft but I had already farted around with it for so long that I was determined to do it without. I can be a stubborn SOB sometimes. lol

You have some good parts there, making nice progress! Enjoy!
Thanks ! We had no correct combination of swivels we could come up with to get enough of a grip on the thing to break it loose, so had no choice really but to remove the spline at the bottom of the shaft and move it out of the way. Least I know the car is not crooked or something !
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 02-02-2012, 07:19 PM   #10 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Updated a new comparison photo above after adjusting the ARK today. Lined up way better than it was but still not "perfect". Also verified the stamp date on the flanges are 12/2011 so it is indeed a V2. Not sure if the ding indicated in the other photo added above would be significant enough to cause any issues with getting the thing to line up better. It's way better than it was anyway.
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 02-02-2012 at 07:35 PM.
sixpax is offline   Reply With Quote
Old 02-04-2012, 05:44 AM   #11 (permalink)
A True Z Fanatic

Unique_Z's Avatar

Join Date: Dec 2010
Location: Brunei
Posts: 1,515
Drives: 370Z, 180SX
Rep Power: 14
Unique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to behold
Default

the car looks awesome! can you do a cold start, revvings and take off vid? i'm on the fence for this ark 2v2
__________________
My Z Build
UniqueZ
Unique_Z is offline   Reply With Quote
Old 02-04-2012, 10:47 PM   #12 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Quote:
Originally Posted by Iwan72 View Post
the car looks awesome! can you do a cold start, revvings and take off vid? i'm on the fence for this ark 2v2
Thanks !

I am not much of a video production guy, but I can try to do something. There are lots of sound and video clips out there already. I listened and watched crap loads of them before I decided on the ARK.

Your car looks good as well ! I think with that diffuser you have the ARK would look pretty cool.
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 02-04-2012, 11:05 PM   #13 (permalink)
A True Z Fanatic

Unique_Z's Avatar

Join Date: Dec 2010
Location: Brunei
Posts: 1,515
Drives: 370Z, 180SX
Rep Power: 14
Unique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to beholdUnique_Z is a splendid one to behold
Default

Quote:
Originally Posted by sixpax View Post
Thanks !

I am not much of a video production guy, but I can try to do something. There are lots of sound and video clips out there already. I listened and watched crap loads of them before I decided on the ARK.

Your car looks good as well ! I think with that diffuser you have the ARK would look pretty cool.
Yeah, that's why i'm on the fence bcause of that crap load of vids..i only watch from ARK own youtube channel..

Thanks for the suggestion dude
__________________
My Z Build
UniqueZ
Unique_Z is offline   Reply With Quote
Old 02-09-2012, 06:39 PM   #14 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Made an appointment at Hill's Garage in Baltimore on 2/25/2012 to get an UPREV tune, a few dyno runs, and maybe another goodie or two installed if I get them in time. Looking forward to that so I can at least know it is tuned with the stuff bolted on already. Car seems to be running strong, but I am hoping they can make it better. I guess I need to figure out what maps I want.

Hope to get good enough results to post them up.
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 02-09-2012, 07:43 PM   #15 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 12
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

I just noticed something about the K&N looking at pictures in the install manual. It looks like the plastic thing I circled in the picture using my mad paint skills is supposed to be removed ? What the hell is that thing, and does it hurt anything ? Looks like with it removed the routing of the hose remains unchanged.

__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 04-21-2012 at 09:06 PM.
sixpax is offline   Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
ClemsonWill's Journal ClemsonWill Member's 370Z Gallery 507 07-07-2017 10:24 AM
O&G's Journal O&G Member's 370Z Gallery 648 02-16-2017 04:30 PM
Glokwork's Journal Glokwork Member's 370Z Gallery 486 10-12-2013 03:39 PM
Red6spd's Journal red6spd Member's 370Z Gallery 13 12-13-2011 11:07 AM
Z BEST Journal Z BEST Member's 370Z Gallery 26 01-09-2011 04:19 PM


All times are GMT -5. The time now is 03:41 AM.


Powered by vBulletin® Version 3.8.4
Copyright ©2000 - 2021, Jelsoft Enterprises Ltd.
Search Engine Optimization by vBSEO 3.6.0 PL2
