Default Another BP turbo build

Thought I would bring this post from my journal over here as I'll be part of the FI crowd soon.

After lots of thought I've finally decided the Z will be getting boosted
She will continue to be my daily driver so I've got my fingers crossed everything goes smoothly.

For any of you with experience boosting the Z my ears are wide to all thoughts & experiences, any advice is much appreciated. Expecting a bit of an adventure here but the more I know going in the better. So, onto my parts list.

Updated: 07/25/17
Motor is staying stock (for now)
BP Single Turbo kit - COMP 800HP twin-scroll, TBB, etc.
HKS EVC-6 Boost Controller
GaleForce Premium A-Pillar
INNOVATE Boost / Wideband Gauge
AEM Wideband

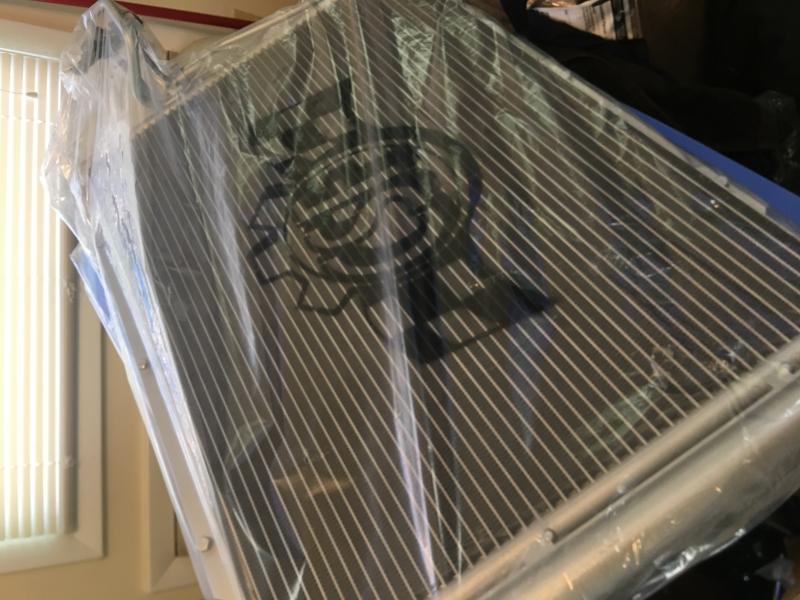

CSF triple pass Radiator
Z1 34 row Oil Cooler
OS Giken GT Twin Disk Clutch
RJM Adjustable Pedal
ZSpeed CMAK CSC Delete *** Making an attempt to install the kit around this ***
Ecutek Software
PTP Lava Turbo bag
ARK Grip V2
Daily Tires: Michelin PS4S
Powder Coat going on IC piping
Heat wrapped hot side piping

As far as the tune I am on Ecutek already & will just need to hop on the dyno for a retune. Here is what I'm thinking as far as my maps are concerned;
At least until I work up some funds for an engine re-build I'm thinking of starting with something like a 6psi waste gate spring in. While I want to believe that I will control myself, I'm not so sure I can. If I am correct having the 6psi spring paired with the EBC should give me up to 12pounds of boost which should be PLENTY for now.
Again she's the daily driver so looking for conservative tune as far as timing, etc. Depending on what type of numbers we are seeing on the dyno may decide to go a little less conservative.
TUNE 1: SMOKEY TIRE MODE
Med or High boost – NO Traction Control (TC)
TUNE 2: TRAVEL / DAILY
Low boost (~6psi) – Ecutek TC
[TUNE W/NO BOOST CONTROLER??? This will allow me to have a safe map to use if the BC shoots the ****? Talk to Frank.]
TUNE 3: DAILY
Med boost (~8psi) – Ecutek TC
TUNE 4: RACE
High boost (~10-12psi) – Ecutek TC

Will follow up with updates! Goodies are showing up daily


GaleForce and YzGyz like this.
__________________
13' 370Z Sport 6MT - BP Turbo

Last edited by zashburn; 07-27-2017 at 08:42 PM.
zashburn is offline   Reply With Quote
Old 04-28-2017, 10:56 AM   #2 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

Don't just rely on ceramic coating on hot parts. Coat and then wrap, or just use wrap.
2011 Nismo#91 likes this.
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Old 04-28-2017, 11:04 AM   #3 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Be mindful of your install and get a good tune, should be great for a DD. =)
It's always a good idea to have a beater though... once you DIY a turbo kit you will always tinker =)

Edit: Make sure your tuner has experience with boosted Zs... There are a lot of tuners that can tune an NA Z without blowing it up... The pool who can do the same with a boosted car is much smaller.

Edit#2: I see you're in baltimore(and referred to Frank) so I assume you are getting tuned at Hill's Garage... AFAIK they do have experience with boosted Z's and I have only heard good things.
zashburn likes this.
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.

Last edited by Jayhovah; 04-28-2017 at 11:13 AM.
Jayhovah is offline   Reply With Quote
Old 04-28-2017, 11:09 AM   #4 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

Also, get some Thermotec sleeve for the wastegate lines. If you melt those, your car will be insanely fast for a few seconds, and then make a very expensive noise.
trogersz34 and BettyZ like this.
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Old 04-28-2017, 11:11 AM   #5 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Quote:
Originally Posted by Chuck33079 View Post
Also, get some Thermotec sleeve for the wastegate lines. If you melt those, your car will be insanely fast for a few seconds, and then make a very expensive noise.
Channeling your inner solidus, eh?
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
Old 04-28-2017, 11:13 AM   #6 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

Yeah, he had that really bite him in the ***. That's modifying cars for you - spend an extra $250 early in the build, or another $10k later.
Jayhovah and zashburn like this.
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Old 04-28-2017, 11:19 AM   #7 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Quote:
Originally Posted by Chuck33079 View Post
Yeah, he had that really bite him in the ***. That's modifying cars for you - spend an extra $250 early in the build, or another $10k later.
For sure. Super nice guy, btw.... helped me test my laser jammers. Best cop on the forum!

Overall, it's a good idea to go completely overboard with heat protection. My engine compartment is so crinkly/shiny with the stuff that it looks like it's covered in aluminum foil to keep the aliens/government from reading its thoughts.

I do wonder about the turbo blanket though. Highly effective in keeping the heat from the turbine from damaging other things, but Corky Bell believe's that they significantly reduce the life of the turbo itself. This may be different in the case of the COMP since the bearings are ceramic and can handle a lot of heat... Just some food for thought. OP, I am not saying you should go without it... That is another thing solidus found out the hard way when the heat from his turbine melted his engine wiring harness. That guy has had some bad luck.
Chuck33079 and zashburn like this.
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
Old 04-28-2017, 11:24 AM   #8 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

CB is always right about everything, but I'd rather have to rebuild a turbo than rewire a car. Also, his definition of hard use and mine are miles apart. I'm sure it does reduce turbo life, but on a street car where you blast through a few gears and then cruise I'll bet it's negligible. I had the turbo wrapped on my old STI for a long time, and never had any issues. I would bag a water-cooled turbo in a heartbeat. An old oil-cooled one, not so much.
Jayhovah and YzGyz like this.
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Old 04-28-2017, 11:27 AM   #9 (permalink)
Base Member

Join Date: Nov 2016
Location: Baltimore MD
Posts: 45
Drives: 13' 370Z Pearl 6MT
Rep Power: 8
zashburn is on a distinguished road
Default

Quote:
Originally Posted by Chuck33079 View Post
Don't just rely on ceramic coating on hot parts. Coat and then wrap, or just use wrap.
Indeed, Sasha just told me the same thing. Original I thought ceramic coating would do the job. Think I will just be wrapping it

Quote:
Originally Posted by Chuck33079 View Post
Also, get some Thermotec sleeve for the wastegate lines. If you melt those, your car will be insanely fast for a few seconds, and then make a very expensive noise.
Well said lol. This is a perfect example of those little things I was looking to find out BEFORE the install. Many thanks to you sir
Jayhovah likes this.
__________________
13' 370Z Sport 6MT - BP Turbo
zashburn is offline   Reply With Quote
Old 04-28-2017, 11:28 AM   #10 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Quote:
Originally Posted by Chuck33079 View Post
CB is always right about everything, but I'd rather have to rebuild a turbo than rewire a car. Also, his definition of hard use and mine are miles apart. I'm sure it does reduce turbo life, but on a street car where you blast through a few gears and then cruise I'll bet it's negligible. I had the turbo wrapped on my old STI for a long time, and never had any issues. I would bag a water-cooled turbo in a heartbeat. An old oil-cooled one, not so much.
Right on... I still think about doing it for mine and was getting ready to order a pair when I saw Bell's commentary. Are your twins currently snuggied?

OP - sorry for the hijack... but all the best discussion happens in FI subforum build threads =)
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
Old 04-28-2017, 11:29 AM   #11 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

Nope, there's not a whole lot of room under the heat shields. They're coated, and everything aft is now wrapped. I had just coated stuff, and when I had my clutch replaced things were starting to get a little crispy.
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Old 04-28-2017, 11:31 AM   #12 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Quote:
Originally Posted by Chuck33079 View Post
Nope, there's not a whole lot of room under the heat shields. They're coated, and everything aft is now wrapped. I had just coated stuff, and when I had my clutch replaced things were starting to get a little crispy.
How many miles between tender and crispy? Last time I inspected things looked good, but it had only been 10k miles.
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
Old 04-28-2017, 11:33 AM   #13 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

20k-ish maybe?
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Old 04-28-2017, 11:35 AM   #14 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Quote:
Originally Posted by Chuck33079 View Post
20k-ish maybe?
Thanks... I will keep an eye on it. Any quantifiable or even feel-only results on the ceramic coating? My hotsides are still beautiful bare burnt orange cast iron.
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
Old 04-28-2017, 11:37 AM   #15 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

It's hard to tell with as hot as these run. It might be cooler. It might also just look cooler since everything's black. The placebo effect is still an effect, dammit.
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
BP turbo build/advice hc_416 Forced Induction 563 05-22-2020 10:33 AM
Turbo Build davidson_z34 Forced Induction 33 11-12-2015 07:45 PM
Big build single turbo G37 SRperformance Forced Induction 9 10-11-2012 05:01 PM
Twin Turbo Build LafitteZ 40th Anniversary 370Z 42 10-05-2011 09:58 AM


All times are GMT -5. The time now is 12:28 PM.


Powered by vBulletin® Version 3.8.4
Copyright ©2000 - 2024, Jelsoft Enterprises Ltd.
Search Engine Optimization by vBSEO 3.6.0 PL2
