Default DIY: Parking Light LED Install

OK, so I changed my parking lights today with LED bulbs from V-LED.

Here is the link to buy the bulbs:
2 V-LEDS 6K WHITE 194 13 LED LIGHT BULBS 158 168 2825
2 V-LEDS 6K WHITE 194 13 LED LIGHT BULBS 158 168 2825

This is real easy and only took 5 minutes per side, and that included taking pictures

Not much to say about the install that you can't see from following the pictures below.
The best way to access these bulbs is through the wheel arch.

Starting at the drivers side, turn the wheels full lock to the right,
this will give you access to pull the liner back.

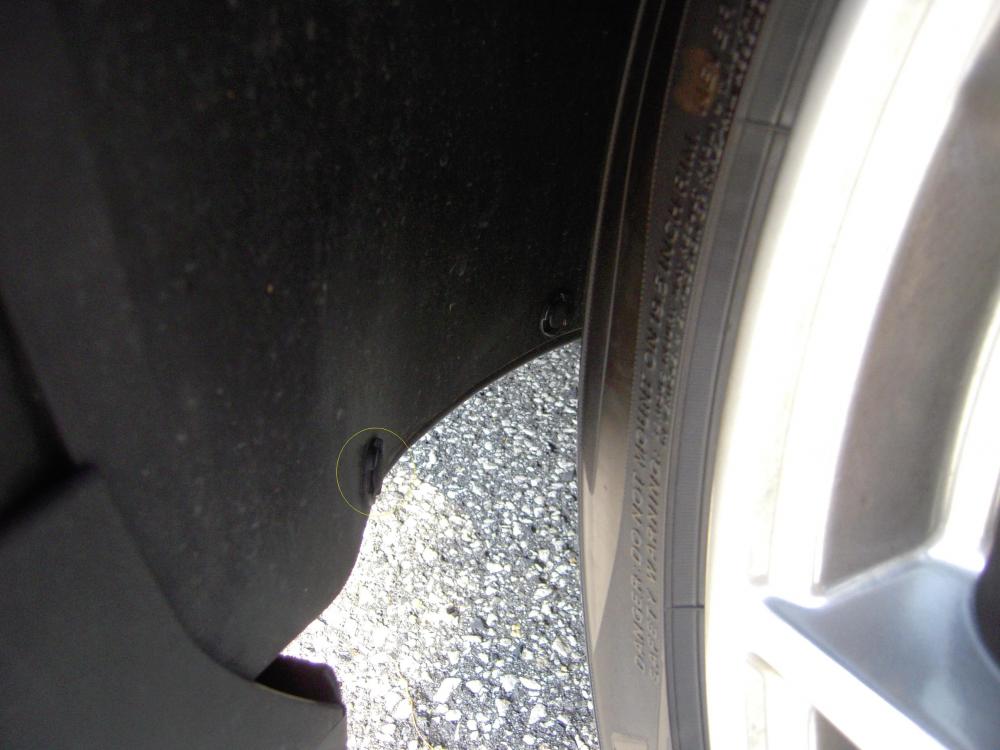

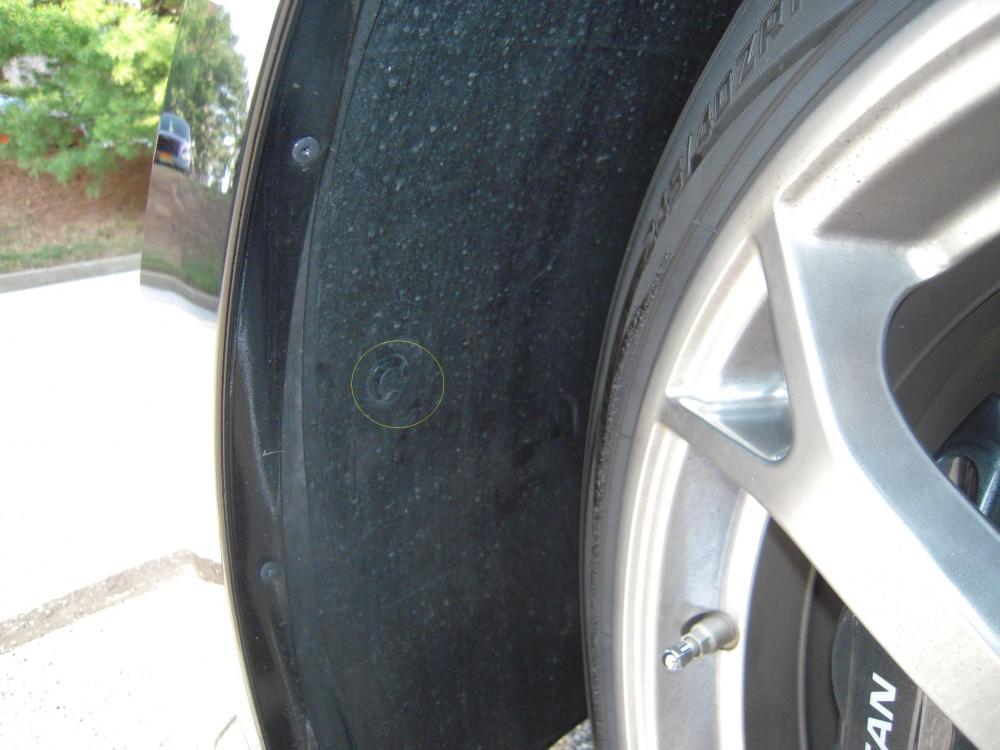

Remove 2 clips as shown in the pics, one is at the middle edge of the liner, the other is the lower edge of the liner.
Just pop these out with a flat blade screwdriver, and be gentle.

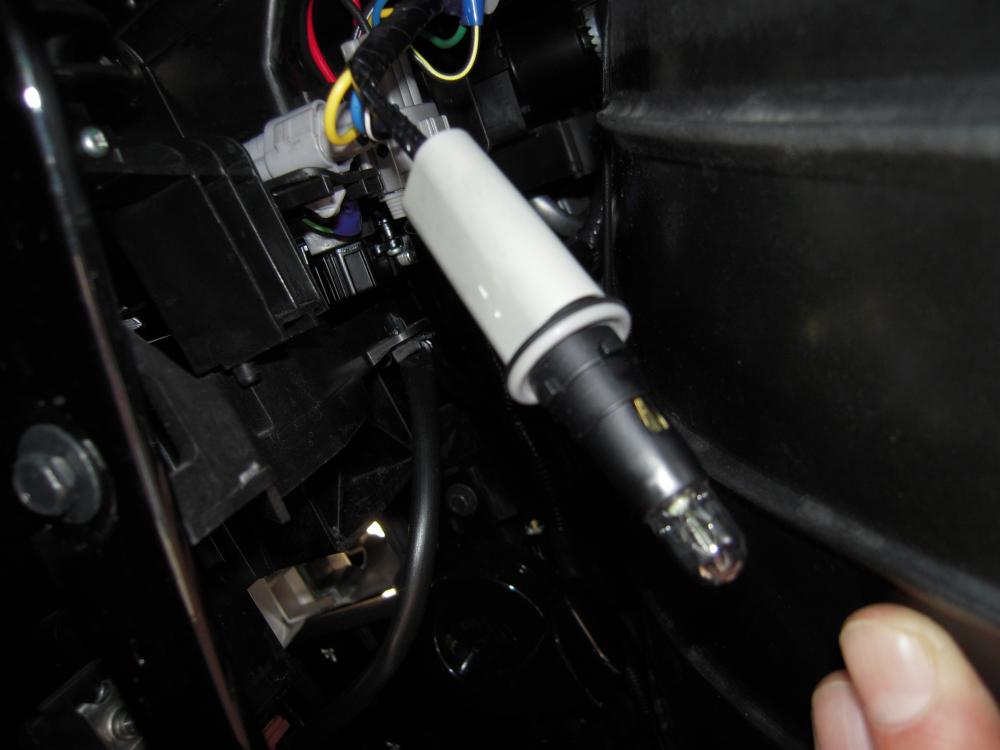

Locate and remove the parking light, remember... lefty loosey, righty tighty
If you look closely at the pictures, I have circled the liner clips, and the parking bulb in yellow.

NOTE:
Now LED lights have voltage polarity, so although the bulb will fit in either way round, it will only function if it's in correctly.

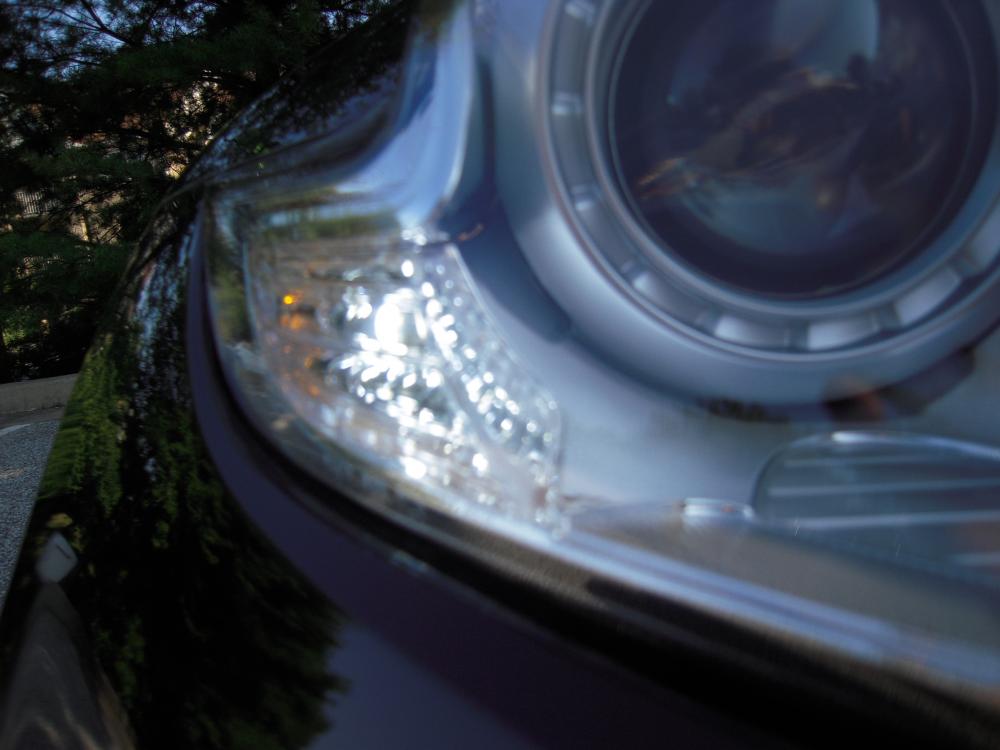

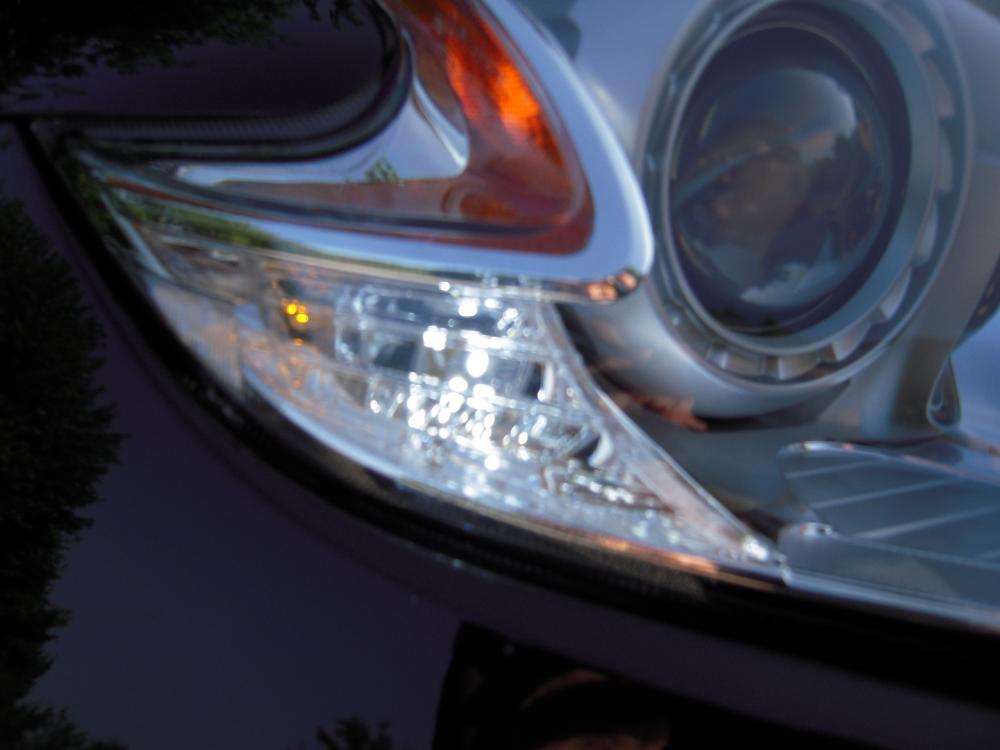

After putting the bulb in, turn the lights on to test it as shown in the pics, BEFORE you put it all back together.

Now replace the liner and complete the process on the passanger side.
Remember to turn the wheels full lock to the left this time.

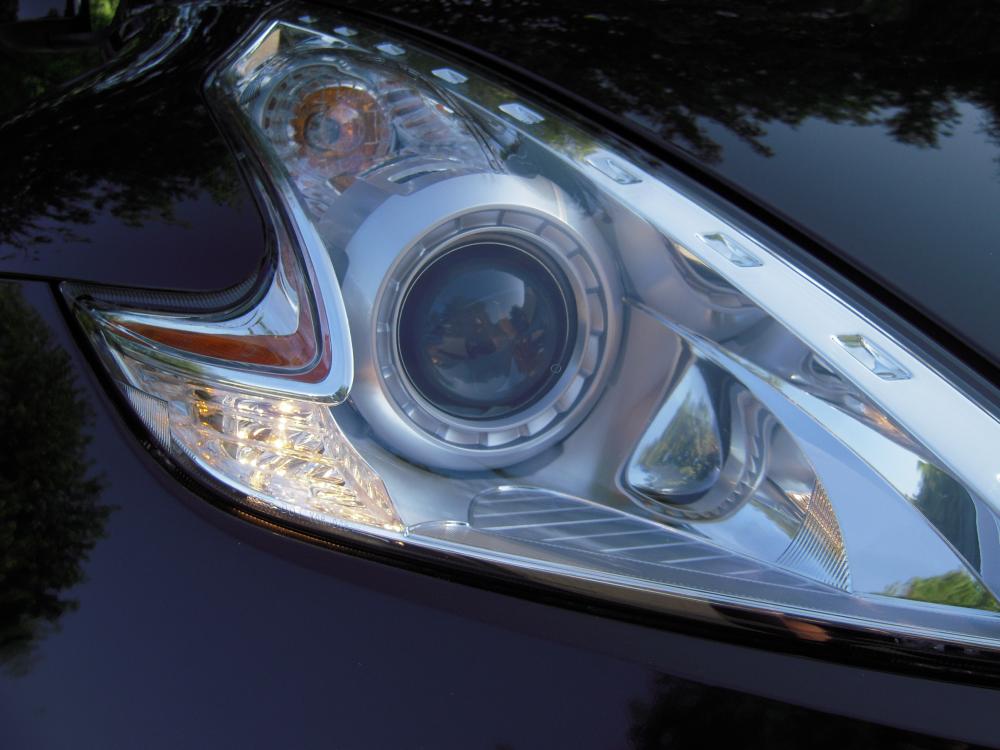

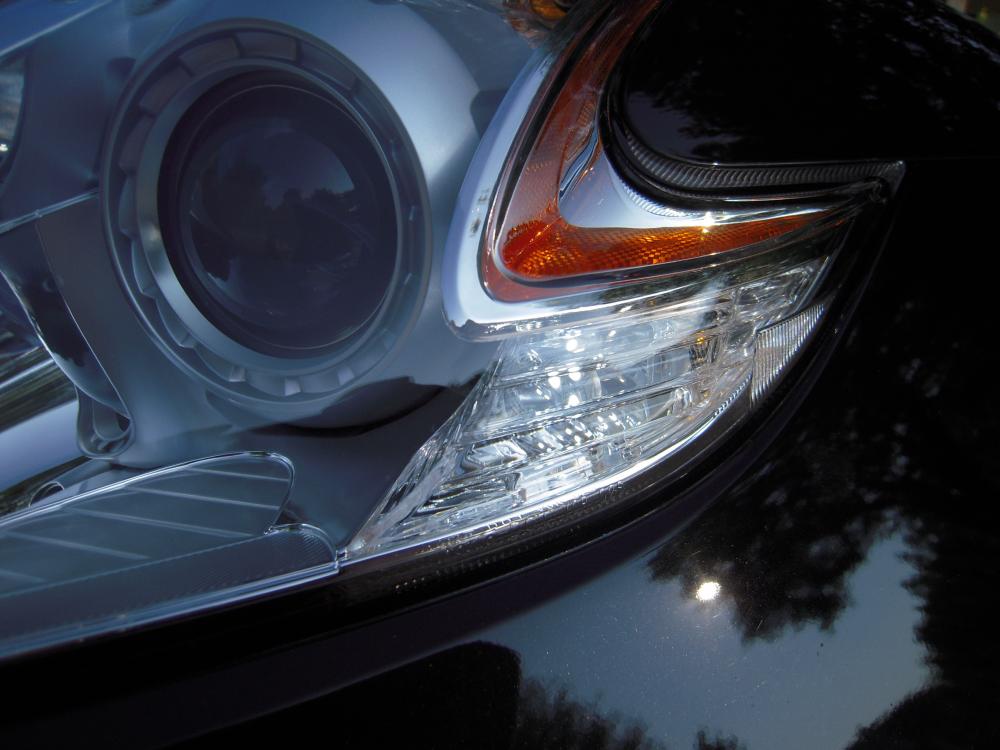

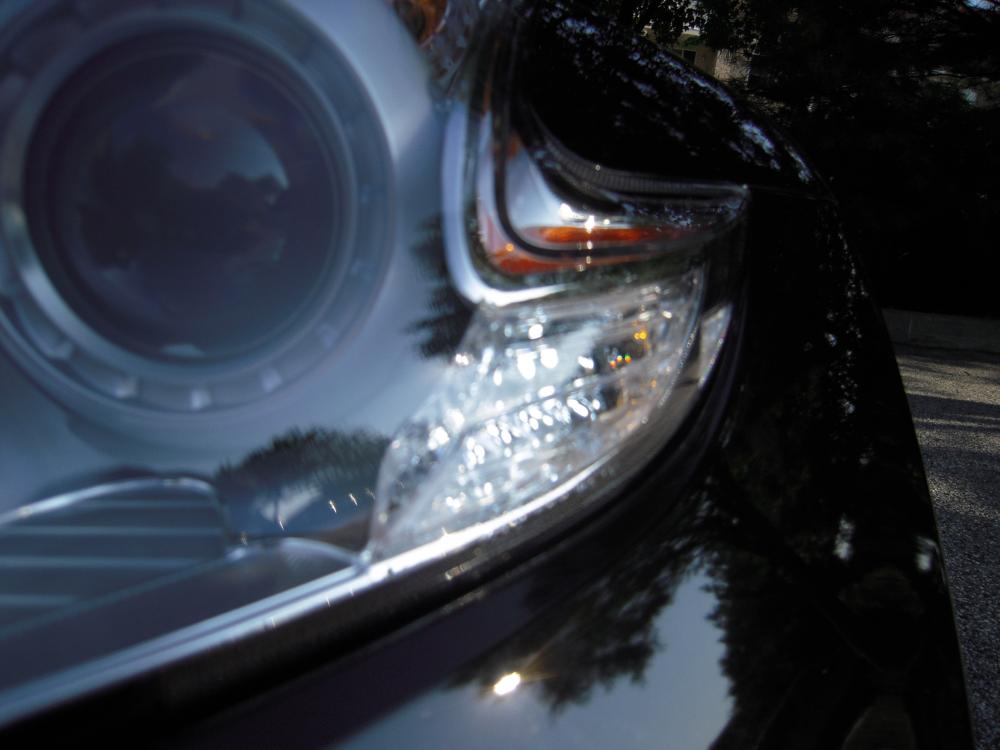

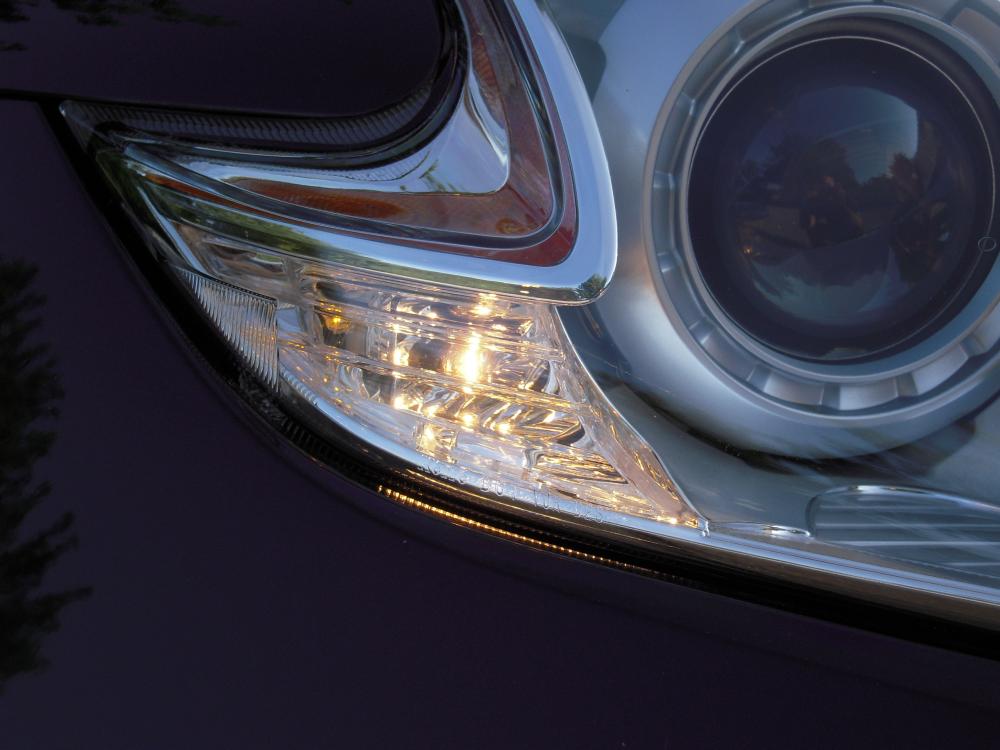

Some before-and-after pics also included:























Hope it helps,
TROOPER
370zBoyz likes this.
__________________
Darren
"Guv Motors Passion Wagon"

Last edited by TROOPER; 08-07-2010 at 08:29 AM.
TROOPER is offline   Reply With Quote
Old 08-07-2010, 08:45 AM   #2 (permalink)
Base Member

Join Date: Jul 2010
Location: Florida
Posts: 14
Drives: 10 -370Z - PG 7AT
Rep Power: 11
Brannisa is on a distinguished road
Default

Thanks Trooper! Its always nice to see some pictures on the install.
Brannisa is offline   Reply With Quote
Old 08-07-2010, 08:48 AM   #3 (permalink)
A True Z Fanatic

TROOPER's Avatar

Join Date: Jun 2010
Location: Baltimore, MD
Posts: 1,297
Drives: Your Tax Dollars
Rep Power: 13
TROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to behold
Default

Well as my dear Mom always says, you can always say thank you with flowers.

I say you could do it better with +1 REP
__________________
Darren
"Guv Motors Passion Wagon"
TROOPER is offline   Reply With Quote
Old 08-07-2010, 01:13 PM   #4 (permalink)
A True Z Fanatic

fullmonty's Avatar

Join Date: Nov 2009
Location: Dirty Jersey
Posts: 7,763
Drives: 370 Touring/Sport
Rep Power: 29
fullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond reputefullmonty has a reputation beyond repute
Default

Cool write up, I just ordered these the other night!
+1
__________________
fullmonty is offline   Reply With Quote
Old 08-10-2010, 12:43 PM   #5 (permalink)
Base Member

Joka4411's Avatar

Join Date: May 2010
Location: Baltimore Md
Posts: 131
Drives: 40th anniver 370Z
Rep Power: 11
Joka4411 is on a distinguished road
Default

Cool, I just ordered them last night ,Cant wait till they arrive.
Joka4411 is offline   Reply With Quote
Old 08-10-2010, 01:42 PM   #6 (permalink)
A True Z Fanatic

TROOPER's Avatar

Join Date: Jun 2010
Location: Baltimore, MD
Posts: 1,297
Drives: Your Tax Dollars
Rep Power: 13
TROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to behold
Default

Quote:
Originally Posted by Joka4411 View Post
Cool, I just ordered them last night ,Cant wait till they arrive.
Good luck... I've just ordered LEDs for my tail lights, but there's already a DIY for that.
But I might take some pictures anyway.

__________________
Darren
"Guv Motors Passion Wagon"
TROOPER is offline   Reply With Quote
Old 08-11-2010, 08:31 AM   #7 (permalink)
Base Member

Join Date: Jun 2010
Location: PA
Posts: 30
Drives: '11 Mustang GT/CS
Rep Power: 11
madonps is on a distinguished road
Default

Very nice thanks! But do they match the OEM low beams? Or are they a different color?
madonps is offline   Reply With Quote
Old 08-11-2010, 08:31 AM   #8 (permalink)
Base Member

Join Date: Jun 2010
Location: PA
Posts: 30
Drives: '11 Mustang GT/CS
Rep Power: 11
madonps is on a distinguished road
Default

Quote:
Originally Posted by TROOPER View Post
Good luck... I've just ordered LEDs for my tail lights, but there's already a DIY for that.
But I might take some pictures anyway.

Which part of the taillights?
madonps is offline   Reply With Quote
Old 08-11-2010, 08:44 AM   #9 (permalink)
A True Z Fanatic

TROOPER's Avatar

Join Date: Jun 2010
Location: Baltimore, MD
Posts: 1,297
Drives: Your Tax Dollars
Rep Power: 13
TROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to behold
Default

Quote:
Originally Posted by madonps View Post
Which part of the taillights?
LED/Bulb...LOL .... How many parts are there??
__________________
Darren
"Guv Motors Passion Wagon"
TROOPER is offline   Reply With Quote
Old 08-11-2010, 08:52 AM   #10 (permalink)
Base Member

Join Date: Jun 2010
Location: PA
Posts: 30
Drives: '11 Mustang GT/CS
Rep Power: 11
madonps is on a distinguished road
Default

Quote:
Originally Posted by TROOPER View Post
LED/Bulb...LOL .... How many parts are there??
Reverse light/Turn signal?
madonps is offline   Reply With Quote
Old 08-11-2010, 09:07 AM   #11 (permalink)
A True Z Fanatic

TROOPER's Avatar

Join Date: Jun 2010
Location: Baltimore, MD
Posts: 1,297
Drives: Your Tax Dollars
Rep Power: 13
TROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to behold
Default

Quote:
Originally Posted by madonps View Post
Reverse light/Turn signal?
OOPS my bad LOL... I meant I had ordered LEDs for my license plate light
__________________
Darren
"Guv Motors Passion Wagon"
TROOPER is offline   Reply With Quote
Old 08-11-2010, 09:09 AM   #12 (permalink)
A True Z Fanatic

m4a1mustang's Avatar

Join Date: Feb 2009
Location: Northern VA
Posts: 55,372
Drives: on two wheels
Rep Power: 3602
m4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond repute
Default

wewt! +1
__________________
- Steve
MAZOC Meet Thread
Zs & Coffee - Saturdays at 10AM in Fairfax, VA and Columbia, MD (Click the banner!)
LIKE us on Facebook!
m4a1mustang is offline   Reply With Quote
Old 08-12-2010, 12:32 AM   #13 (permalink)
Base Member

Join Date: Mar 2010
Location: Melbourne
Posts: 78
Drives: 370z Roadster!
Rep Power: 11
Mr370z is on a distinguished road
Default

thanks for this Trooper.. will order some when they are back in stock!.. would alos love to know exactly which LEDs your ordered for your licence plate too. Can you give me a link to the exact ones!

And pls do a DIY thread for that too!! your a champ!
Mr370z is offline   Reply With Quote
Old 08-12-2010, 06:52 AM   #14 (permalink)
A True Z Fanatic

TROOPER's Avatar

Join Date: Jun 2010
Location: Baltimore, MD
Posts: 1,297
Drives: Your Tax Dollars
Rep Power: 13
TROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to beholdTROOPER is a splendid one to behold
Default

Quote:
Originally Posted by Mr370z View Post
thanks for this Trooper.. will order some when they are back in stock!.. would alos love to know exactly which LEDs your ordered for your licence plate too. Can you give me a link to the exact ones!

And pls do a DIY thread for that too!! your a champ!
Here's the link to my album for the license plate install (no DIY)
Nissan 370Z Forum - TROOPER's Album: DIY: License Plate LED Install

Here's a link to the License Plate DIY by AK370Z
DIY: License Plate LED bulb Installation

This link to the DIY also contains the link to the V-LEDS website for the bulbs
__________________
Darren
"Guv Motors Passion Wagon"
TROOPER is offline   Reply With Quote
Old 08-12-2010, 07:28 AM   #15 (permalink)
Base Member

Join Date: Jun 2010
Location: PA
Posts: 30
Drives: '11 Mustang GT/CS
Rep Power: 11
madonps is on a distinguished road
Default

Very nice thanks! But do they match the OEM low beams? Or are they a different color?
