Old 05-11-2017, 02:12 PM   #1 (permalink)
A True Z Fanatic

Nut_N_Much's Avatar

Join Date: Dec 2011
Location: Pensacola Florida
Posts: 1,696
Drives: Awesome Car
Rep Power: 26
Nut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond repute
Talking DIY: Dash Pad Removal

I have a 2009 370z Sport and I do all my own work on it. I let some folks barrow my car and someone used a bad cleaner on my dash and it has cracked all over. I searched around for a DIY and didn't find much. So I hope this helps.

There are only 5 mounting points for the dash pad:
(2) 10mm bolts under the windshield L/R side under the senors
(2) Phillips head screws; 1 on each side. They are under the speakers L/R side
(1) 12mm bolt under the glove box. This bolts the air bag to the car. You will leave air bag attached to dash.

So there are ton's of DIY's to remove everything thats not the dash:
Steering wheel; this is what i used from Mr&Mrs: DIY: Steering Wheel Removal

Stereo panel removal: [URL="http://www.the370z.com/diy-section-do-yourself/20361-diy-bose-touring-stereo-non-nav-ipod-interface-upgrade-isimple-media-gateway.html"]

If you haven't done it already down load the 370z Manual. It will have exploded views of all the dash panels. Remember this is Dash removal, not cubby, glove box, gauge, turn signal removal.

Image shows were the left side 10mm bolt and screw locations are. I already have the dash out. It's easier to show you there locations this way. Remove these to pull the dash.

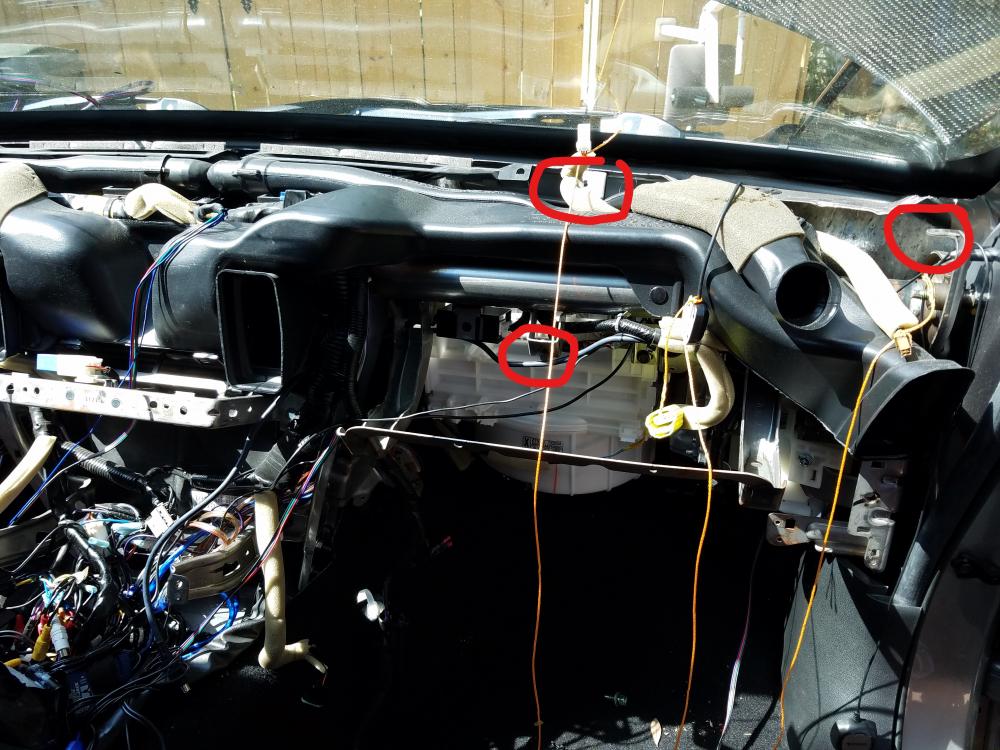

This image shows the right side 10mm bolt, screw under speaker and airbacg 12mm bolt in center of glove box area. Remove these to pull dash.


These are the 2 screws on the lower center dash. Most of the mounting was removed during the stereo removal and center console removal.


So that's it, easy right. The hard part is the 200 wire harness plugs you need to disconnect before pulling out the dash. Also go slow on removing covers and panels. I removed the drivers seat to get better access under the dash to squeeze clips to loosen the dash and panels up.

Once the dash is out it is a good time to mod gauges, pull lighting mod wire, modify radio, install new steering wheel etc.. You have full access and use it to run wiring for future builds.

New Dash Install:

So i have string attached to all the wiring i need to access to to install sensor, speakers, GPS etc. It made it way easier to get the pad in quickly.

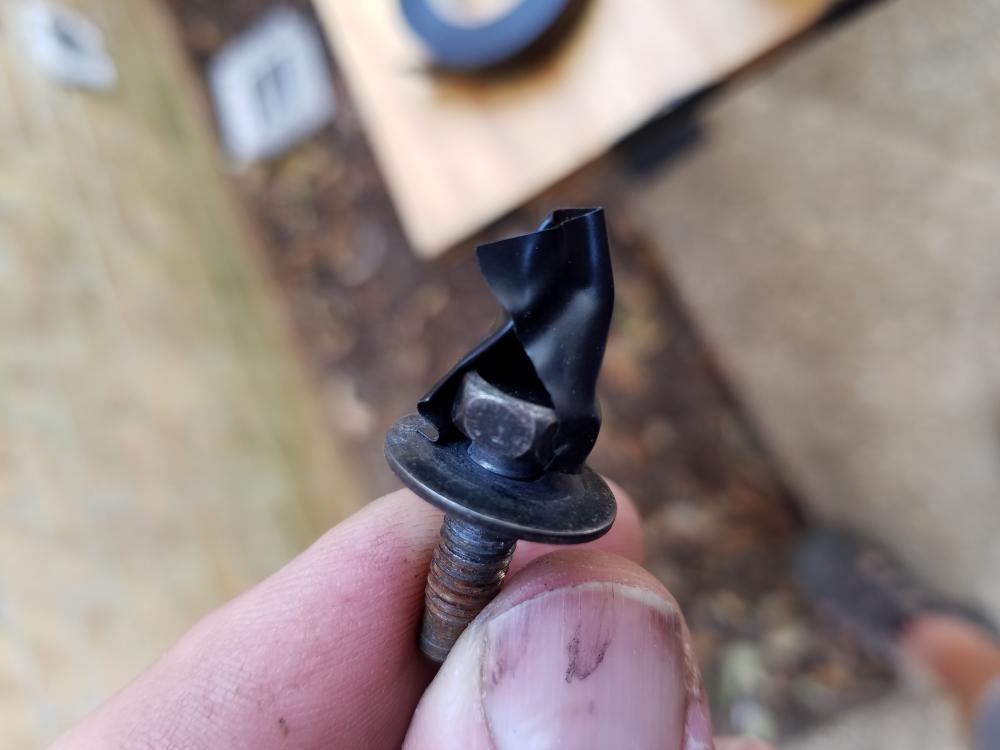

These 2 bolts under the glass i used elec tape and wrapped the head of the bolt; it held the bolt in the 10mm socket with out dropping it into the abyss of my dash.

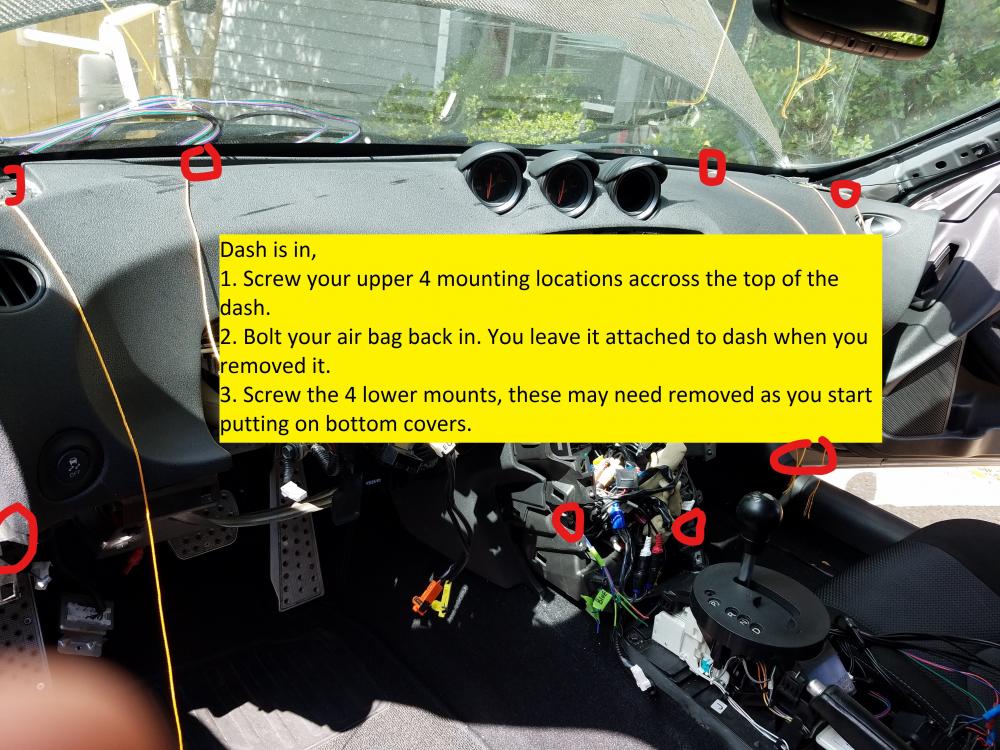

When you have the top bolts in and the screws under the left & right speakers in, don't forget about the air bag bolt 12mm and the 2 screws on the center dash.

Left Side:
Start installing your blinkers, paddle shiffter (for AT) then gauge cluster in that order.
Next install your column wrap. You want this on before steering wheel and airbag.
Next the lower panel, install VDC plug, Vent and plug, and the PITA Hood latch wire and OBD Plug. That wraps up the drivers side. I did my seat, A-Piller, kick plates last.

Right Side:
Plug in the Airbag
Plug in & Mount speaker
Plug in and mount dash vent and sensor
Start mounting glove box, ensure you plug in the light and power to plug.

I'm unfuc_ing my stereo right now but will update this after I'm done. Just install your stereo then cubby panels and plug in the GTR Start button.

If your stereo reconnect is good and you have no extra plugs go ahead and install the battery. Put your wife in the drivers seat and tell here to close her eyes and start the car lol..

If you missed anything your gauges and OBD will tell you. Trace it down and plug it in.

I know this isn't showing all areas of the dash but most of us wouldn't do this with out some understanding of interior panels and basic understanding of cars. Removal was 2 days for me (Bad Back). Install was 1 day after running lighting wires and switches for body and headlight mods.

Good luck! Download the manual and take lots of pictures to remember types of screws and bolts that go in specific spots.



Nut_N_Much is offline   Reply With Quote
Old 05-11-2017, 02:18 PM   #2 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

Wow, so cool, thanks!
Nut_N_Much likes this.
scope22 is offline   Reply With Quote
Old 05-11-2017, 02:30 PM   #3 (permalink)
A True Z Fanatic

JARblue's Avatar

Join Date: Mar 2011
Location: Austin, TX
Age: 43
Posts: 36,449
Drives: 11 Z34, 98 E36 M3
Rep Power: 2684440
JARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond reputeJARblue has a reputation beyond repute
Default

What a chore. Nicely done
onzedge and Nut_N_Much like this.
__________________

2011 370Z 6MT Sport Gun Metallic | ARC | CJM | Ecutek | FI | Fujimura | R2C | SPL | Stillen | TWM | Z1 | ZSpeed |
JARblue is offline   Reply With Quote
Old 05-11-2017, 03:17 PM   #4 (permalink)
A True Z Fanatic

old guy's Avatar

Join Date: Apr 2015
Location: S.E. Michigan
Age: 67
Posts: 2,706
Drives: 13 magma touring
Rep Power: 2684368
old guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond reputeold guy has a reputation beyond repute
Default

two thumbs up!
Nut_N_Much likes this.
old guy is offline   Reply With Quote
Old 05-12-2017, 01:26 PM   #5 (permalink)
A True Z Fanatic

eastwest2300's Avatar

Join Date: May 2010
Location: South FL
Posts: 90,799
Drives: '16QX70/'21 Supra3.0
Rep Power: 2684549
eastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond reputeeastwest2300 has a reputation beyond repute
Default

nice write up. thanks for posting.
Nut_N_Much likes this.
__________________
Infiniti QX70 & Toyota Supra 3.0 Premium
eastwest2300 is offline   Reply With Quote
Old 05-13-2017, 03:57 AM   #6 (permalink)
A True Z Fanatic

axmea?'s Avatar

Join Date: Apr 2012
Location: SoCal
Posts: 6,233
Drives: WELL ZED PW 6MT
Rep Power: 53240
axmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond reputeaxmea? has a reputation beyond repute
Default

Nice write up. I've always wondered who'd want to rip out their dash and share with the rest of us. Removing the dash from cars in the early 2000's and the 90's is so much easier. I've done this for stereo installs in the past but now it's just too much work. Thanks for sharing. Rep't.
Nut_N_Much likes this.
__________________

>MyZ's Album< NISMO Convert/ECUTEK/Takeda CAI/F.I. HFC NR CB Carbon/F.I. 34 Row Oil Cooler/4.08 Final Drive /Powertrix+Swifts/Hotchkis/SPL/Whiteline/TWM/Zoom Engineering/EVO-R/AeroJacket Vented CF Fenders + CF Spoiler/Avant Garde-WORK/NST/Morimoto Halo/STi Clear Lenses/Carbon Signal Automotive/RJM Performance/ZSpeed Clutch Flywheel CSC delete
axmea? is offline   Reply With Quote
Old 07-18-2017, 07:43 AM   #7 (permalink)
Base Member

McLovin2010's Avatar

Join Date: Aug 2014
Location: Yorktown, VA
Posts: 68
Drives: 15 370z white manual
Rep Power: 39
McLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond repute
Default

There should be more than just 5, also one near the hood release and the wire to remove that, as well as two bolts one on each side of the knee guard after those are off and on the right side of the glove box as well as the one inside. Oh and don't forget the HELL clips that are tiny barbed plastic plugs that get destoryed when pulled out the are up by the sensors near the glass almost impossible to pull out from under the dash so i just driller through them.
Nut_N_Much likes this.
__________________
Fast Intentions stage 2 TT kit| Specialty Z clutch kit|FI 34 Row oil cooler|Fast 500E fuel return |Aquamist Methanol kit|3.3 Quaife diff|Ported Manifolds|Poly mounts|Defi 3 gauge cluster swap| 3in Motordyne x-pipe Catback |4100Nex|JL XD1000/5v2 |Fx165 Focal|JL 10w3v3|
McLovin2010 is offline   Reply With Quote
Old 07-23-2017, 02:35 PM   #8 (permalink)
A True Z Fanatic

Nut_N_Much's Avatar

Join Date: Dec 2011
Location: Pensacola Florida
Posts: 1,696
Drives: Awesome Car
Rep Power: 26
Nut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond repute
Default

Quote:
Originally Posted by McLovin2010 View Post
There should be more than just 5, also one near the hood release and the wire to remove that, as well as two bolts one on each side of the knee guard after those are off and on the right side of the glove box as well as the one inside. Oh and don't forget the HELL clips that are tiny barbed plastic plugs that get destoryed when pulled out the are up by the sensors near the glass almost impossible to pull out from under the dash so i just driller through them.
Yes you are right, there are a bunch of small things that need to happen like removing the hole center console. However the images are for the dash only and the rest are already DIY to death in this forum.

A major PITA to do, so glad I did it and not shop. To many ways to break stuff and cut corners.
B&W_Evader likes this.
Nut_N_Much is offline   Reply With Quote
Old 07-23-2017, 09:37 PM   #9 (permalink)
Base Member

McLovin2010's Avatar

Join Date: Aug 2014
Location: Yorktown, VA
Posts: 68
Drives: 15 370z white manual
Rep Power: 39
McLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond reputeMcLovin2010 has a reputation beyond repute
Default

Quote:
Originally Posted by Nut_N_Much View Post
Yes you are right, there are a bunch of small things that need to happen like removing the hole center console. However the images are for the dash only and the rest are already DIY to death in this forum.

A major PITA to do, so glad I did it and not shop. To many ways to break stuff and cut corners.
agreed, i would never trust a shop to do this cleanly, i don't trust people with my car lol
Nut_N_Much and overtureZ like this.
__________________
Fast Intentions stage 2 TT kit| Specialty Z clutch kit|FI 34 Row oil cooler|Fast 500E fuel return |Aquamist Methanol kit|3.3 Quaife diff|Ported Manifolds|Poly mounts|Defi 3 gauge cluster swap| 3in Motordyne x-pipe Catback |4100Nex|JL XD1000/5v2 |Fx165 Focal|JL 10w3v3|
McLovin2010 is offline   Reply With Quote
Old 09-22-2017, 02:18 PM   #10 (permalink)
Track Member

B&W_Evader's Avatar

Join Date: Aug 2011
Location: CA
Posts: 972
Drives: slower than before
Rep Power: 386
B&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond reputeB&W_Evader has a reputation beyond repute
Default

You are a madman! I slid out the dash in my 240 once. Don't remember why I was getting in there but I do remember seeing more connections than I wanted to deal with. So... I slid it back in and skipped whatever I was thinking about.
Nut_N_Much likes this.
__________________
|RIP|6spd-sport|OSG-LSD|XP8|RBF600|Eibach Sways|RE-71R|FI-34Row|Gen3-CAI|Yaw P.S.|
B&W_Evader is offline   Reply With Quote
Old 12-05-2017, 11:36 AM   #11 (permalink)
Base Member

GrayGhost's Avatar

Join Date: Sep 2017
Location: Florida
Posts: 106
Drives: 40TH
Rep Power: 7
GrayGhost is on a distinguished road
Default

Where did you get the new dash from and may I ask how much you paid? My dash is cracking as well and luckily it's only in inconspicuous places but i want to plan for the future.


Sent from my iPhone using Tapatalk
Nut_N_Much likes this.
GrayGhost is offline   Reply With Quote
Old 01-03-2018, 01:34 PM   #12 (permalink)
A True Z Fanatic

Nut_N_Much's Avatar

Join Date: Dec 2011
Location: Pensacola Florida
Posts: 1,696
Drives: Awesome Car
Rep Power: 26
Nut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond reputeNut_N_Much has a reputation beyond repute
Talking

Quote:
Originally Posted by GrayGhost View Post
Where did you get the new dash from and may I ask how much you paid? My dash is cracking as well and luckily it's only in inconspicuous places but i want to plan for the future.


Sent from my iPhone using Tapatalk
I bought the dash from a salvage yard in Tampa. It was a 2015 NISMO so it had all the gauges and managed to pick up the darker trim for door handles and vents all for 400.00.
Jayhovah likes this.
Nut_N_Much is offline   Reply With Quote
Old 01-03-2018, 01:47 PM   #13 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

Quote:
Originally Posted by Nut_N_Much View Post
I bought the dash from a salvage yard in Tampa. It was a 2015 NISMO so it had all the gauges and managed to pick up the darker trim for door handles and vents all for 400.00.
Do you happen to remember which yard? I usually go to Turbo Toys in Tampa as they usually have Z stuff.
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
