Default Nav build

Just thought i'd share my nav project, if you want to see more, check out my album, its almost done, it looks rough because I took leather off because i'll get the whole thing reupholstered for a seamless look.

Result at this point is wrapped in copper carbon fiber:
I added a notch on the right to expose light sensor
Deleted 2 buttons above shifter which will be relocated to the console






This is what orange leather which i decided against:




I started with base 370z dash trim with cubby and a double din adapter
Removed all leather stuff
Cutoff top of double din
Cutoff cubby to the same thickness as the double din walls, glued everying with some J-b kwick

Manufactured cradle with some 12x12 sheets of plastic so that i can mount the tablet flush.

Placed cradle inside and sanded down everything

Applied 3 layers of bondo and sanding between applications and its ready for uphostery

So i dont like the step lip look, so i glued in some dense foam board trimmed excess

And a layer of bondo

Also decided to do that shifter bezel since i dont like the OEM look


Test fitting:
cv129, 1st, Luciano13 and 3 others like this.

Last edited by scope22; 11-04-2016 at 11:46 AM.
scope22 is offline   Reply With Quote
Old 01-15-2016, 01:20 PM   #2 (permalink)
A True Z Fanatic

RonRizz's Avatar

Join Date: Aug 2011
Location: Pine grove, Pa
Posts: 2,132
Drives: 2 feet, 3 pedals
Rep Power: 6774
RonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond reputeRonRizz has a reputation beyond repute
Default

looking good...
__________________
P99rs Head Unit--- Amps- 2 Pioneer Prs800d --- Zapco ST1000MX---Zapco ST-4XSQ---- SI BM mk5 Subs---SI TM65v2 Midbass--- SI M3 mids--- SI M25 xbl2 tweeters ----- 2016 MECA street class 3rd place at world finals
RonRizz is offline   Reply With Quote
Old 01-17-2016, 02:29 AM   #3 (permalink)
Base Member

Join Date: Feb 2012
Location: Queens,NY & Atlanta,GA
Posts: 131
Drives: '11 370z 7AT
Rep Power: 13
Stailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to behold
Default

What kind of tablet are you using? Whenever I'm back in Georgia, do you mind if I met up to see this thing and ask for advice?
__________________
2011 Black Cherry 370Z Touring+Sport 7AT | Motordyne Shockwave E370 | Berk HFC | Stillen Gen III | Hotchkis Sways | ONEighty Headlights | UpRev Tuned by RAD
Atlanta, GA & Queens, NY - Stailey's Build Journal
Stailey is offline   Reply With Quote
Old 01-17-2016, 10:26 AM   #4 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

Yea man I'll pm you my number
I'm using sony Xperia z2 bought it used for 250 it has fm radio gps its thin and light and good sound quality

Quote:
Originally Posted by Stailey View Post
What kind of tablet are you using? Whenever I'm back in Georgia, do you mind if I met up to see this thing and ask for advice?
scope22 is offline   Reply With Quote
Old 01-17-2016, 10:34 AM   #5 (permalink)
Base Member

Join Date: Feb 2012
Location: Queens,NY & Atlanta,GA
Posts: 131
Drives: '11 370z 7AT
Rep Power: 13
Stailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to behold
Default

After reading this last night I went order crazy and got a bezel off eBay, a single din of eBay, a Sony Xperia x4 tablet, a case I can modify, plastic, bondo... Haha
__________________
2011 Black Cherry 370Z Touring+Sport 7AT | Motordyne Shockwave E370 | Berk HFC | Stillen Gen III | Hotchkis Sways | ONEighty Headlights | UpRev Tuned by RAD
Atlanta, GA & Queens, NY - Stailey's Build Journal
Stailey is offline   Reply With Quote
Old 01-17-2016, 11:23 AM   #6 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

lol, i didn't mention but you do need some tools, table or flooring saw is a must and a dremel tool and power sander, but good news is that is pretty cheap, just labor intensive, damn wanted to get a z4 too but seemed too expensive for a car build...

Quote:
Originally Posted by Stailey View Post
After reading this last night I went order crazy and got a bezel off eBay, a single din of eBay, a Sony Xperia x4 tablet, a case I can modify, plastic, bondo... Haha

Last edited by scope22; 01-17-2016 at 11:25 AM.
scope22 is offline   Reply With Quote
Old 01-17-2016, 11:41 AM   #7 (permalink)
Premium Member

Jayhovah's Avatar

Join Date: May 2013
Location: St. Pete, FL
Posts: 3,848
Drives: 520whp Fire Breather
Rep Power: 86950
Jayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond reputeJayhovah has a reputation beyond repute
Default

This is what I wanted to do!!! I was going to use a single DIN head unit though to handle the bluetooth calling as I couldn't figure an elegant solution to handle handsfree calling using the tablet alone. Are you planning on doing calls?

I am most likely just going to wait for the Valkerie or Brainiac solutions.. though the price tag is a lot bigger than what you are doing. =)
__________________
2013 Gun Metallic Sport - Gamma V3 Twin Turbogized
DIY Gamma V3 TT Install * Jayhovah's Gamma V3 TT Install Pic'Z and Vid'Z * DIY: Washer Reservoir for the Boosted
Quote:
Originally Posted by redondoaveb
You've got a twin turbo sound system, I think you met your audio goals.
Jayhovah is offline   Reply With Quote
Old 01-17-2016, 02:36 PM   #8 (permalink)
Base Member

Join Date: Feb 2012
Location: Queens,NY & Atlanta,GA
Posts: 131
Drives: '11 370z 7AT
Rep Power: 13
Stailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to beholdStailey is a splendid one to behold
Default

Yeah, I'm still gathering supplies. Are you pairing this with a single din had unit in the glove compartment?
__________________
2011 Black Cherry 370Z Touring+Sport 7AT | Motordyne Shockwave E370 | Berk HFC | Stillen Gen III | Hotchkis Sways | ONEighty Headlights | UpRev Tuned by RAD
Atlanta, GA & Queens, NY - Stailey's Build Journal
Stailey is offline   Reply With Quote
Old 01-17-2016, 02:53 PM   #9 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

Thats crazy...i have 3.5mm jack from tablet to rca going to amps for sound, for this tablet 3.5mm jack acts as an antena for FM radio so i'm going to get a 15' of ti and run on top of windshield under headliner, if you want usb music, then you can connect usb from glove box to tablet, you may need a hub if you're connection a few things

Quote:
Originally Posted by Stailey View Post
Yeah, I'm still gathering supplies. Are you pairing this with a single din had unit in the glove compartment?

Last edited by scope22; 01-17-2016 at 02:56 PM.
scope22 is offline   Reply With Quote
Old 01-17-2016, 10:34 PM   #10 (permalink)
A True Z Fanatic

DeliriousClam's Avatar

Join Date: May 2015
Location: NJ
Age: 30
Posts: 3,758
Drives: 12 Base Sport
Rep Power: 54271
DeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond reputeDeliriousClam has a reputation beyond repute
Default


Really though that's really impressive curious to see the end result
__________________
Stillen, AAM, Shine Auto, Fujimora, Swift, EVO-R, Carbon Fiber Element, Nitrous Outlet
MECP Advanced: CEA26671
Most of what I post here are artistic works of fiction and falsehood. Only a fool would take anything I post here as fact.
DeliriousClam is offline   Reply With Quote
Old 01-19-2016, 01:42 PM   #11 (permalink)
Base Member

night blade's Avatar

Join Date: Apr 2015
Location: Pickering, Ontario
Posts: 131
Drives: 2016 Nissan 370Z
Rep Power: 9
night blade is on a distinguished road
Default

Where can you get a dash kit with an opening for the 2-din + glove box to fit a 10" tablet?!

Other than what the OP did, if someone sold a kit I might just try another android tablet install, have one in my 2012 Kia Sportage with a single din JVC X50BT stereo behind it.

Works well most of the time, but it was really a PITA to configure properly.
__________________
2016 Nissan 370z Base 6MT Pearl White | RJM Performance
2012 Kia Sportage 6AT (the short bus)
night blade is offline   Reply With Quote
Old 01-19-2016, 09:34 PM   #12 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

Quote:
Originally Posted by night blade View Post
Where can you get a dash kit with an opening for the 2-din + glove box to fit a 10" tablet?!

Other than what the OP did, if someone sold a kit I might just try another android tablet install, have one in my 2012 Kia Sportage with a single din JVC X50BT stereo behind it.

Works well most of the time, but it was really a PITA to configure properly.
Checkout Tesla build, thats the closest to a kit as you're going to get.
scope22 is offline   Reply With Quote
Old 01-19-2016, 09:45 PM   #13 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

Quote:
Originally Posted by Jayhovah View Post
This is what I wanted to do!!! I was going to use a single DIN head unit though to handle the bluetooth calling as I couldn't figure an elegant solution to handle handsfree calling using the tablet alone. Are you planning on doing calls?

I am most likely just going to wait for the Valkerie or Brainiac solutions.. though the price tag is a lot bigger than what you are doing. =)
all of these tablets have built in bluetooth so i dont see why it wouldn't work...but i guess i'll do some research now that you mention it
scope22 is offline   Reply With Quote
Old 02-17-2016, 10:51 PM   #14 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

Started CAD design, here is initial partial rendering


Last edited by scope22; 03-18-2017 at 06:26 PM.
scope22 is offline   Reply With Quote
Old 06-12-2017, 09:14 PM   #15 (permalink)
A True Z Fanatic

scope22's Avatar

Join Date: Apr 2012
Location: Roswell, GA
Posts: 1,179
Drives: wife crazy
Rep Power: 54
scope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond reputescope22 has a reputation beyond repute
Default

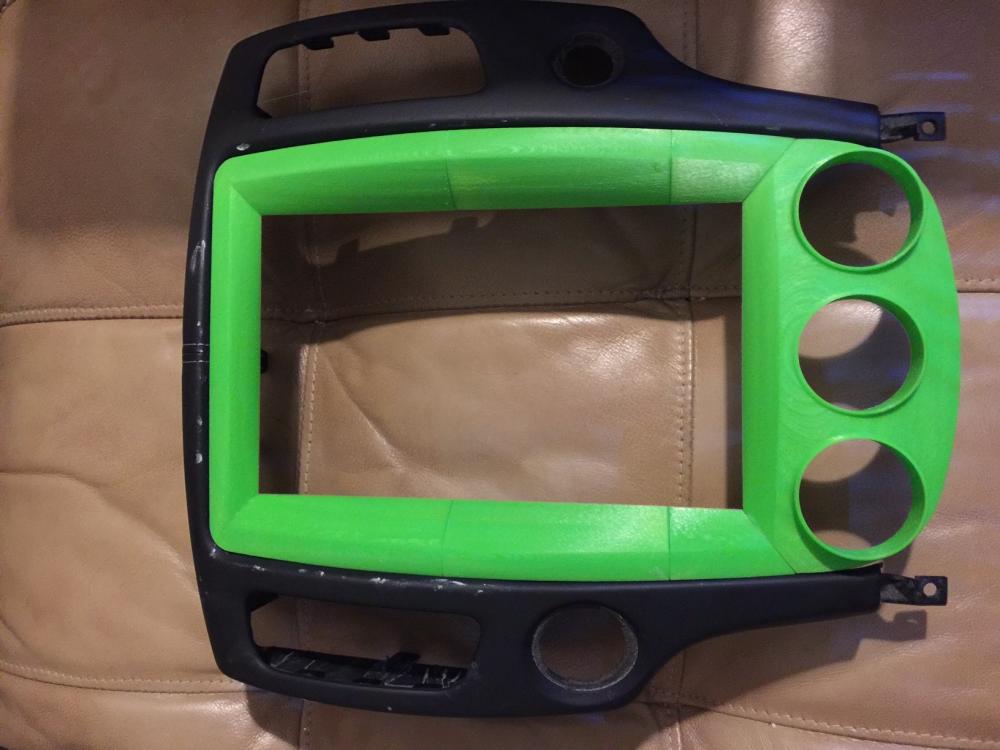

baby steps, probably 3 more months and i'll have it all done, calling/music via bluetooth, steering wheel controls...ect
mults likes this.

Last edited by scope22; 06-12-2017 at 09:18 PM.
