Homemade Tire Rack

I built a rack for my tires to be stored on during winter. It turned out really good! I welded together some 1/8" angle iron and painted it black. I

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Wheels & Tires


Like Tree9Likes

Reply

LinkBack Thread Tools Display Modes
Old 03-06-2010, 06:42 PM   #1 (permalink)
A True Z Fanatic

wheee!'s Avatar

Join Date: Sep 2009
Location: Mod Capital of Canada
Age: 57
Posts: 7,354
Drives: cars. lots of cars.
Rep Power: 40181
wheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond repute
Smile Homemade Tire Rack

I built a rack for my tires to be stored on during winter. It turned out really good! I welded together some 1/8" angle iron and painted it black. I drilled some holes and used some chain to support the weight. Bolted it onto the stud in the wall with Lag bolts and, voila! Instant tire rack!

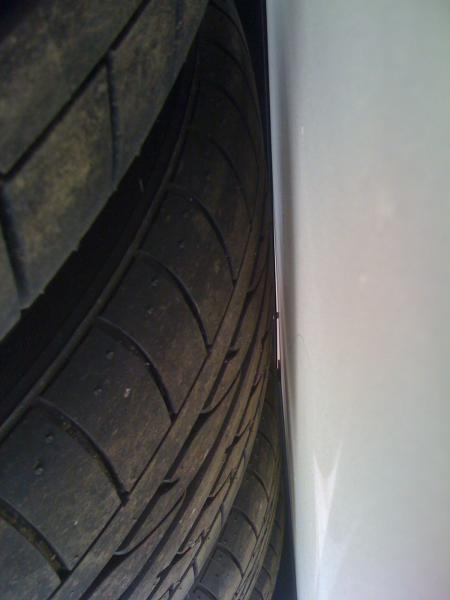

This one shows the small amount of space left between the tire and wall to avoid marking the drywall.





Here is the quick build until I can get a complete DIY up:

You will need:

4 x 4' lengths of 1/8" angle iron (fits sport wheels and tires for width)
2 x 2' lengths of 1/8" angle iron (Vertical setions)
2 x 20" lengths of 1/8" angle iron (extensions from wall)

Approx 5' of chain and 4 chain connectors

2 x 3/8" x 1" bolts with lock nuts

welder and paint

How to:

TOP SECTION

Lay the two vertical wall pieces (2') down first. Place the two horizontal 4' sections on top of these (overlapping) at the top and bottom of the vertical pieces, square up and tack into place.

Drill holes in the top sections for the chain to go thru. Try and be accurate for both sides to make it even.

BOTTOM SECTION

Grind the ends of the 20" pieces that will nestle into the rack so that they can rotate up INTO the vertical section for storage. In other words, round off the square end that will rotate so that it will not interfere with the rotation.

Place the two 20" pieces on the table and lay the 4' sections (that support the tires) over these (overlap). The first piece of angle iron is tacked at 8" from the wall and the second piece is at the end of the 20" section. That leaves a 12" "cup" for the tires to sit in and the tires DO NOT touch the wall. Square them up and tack into place. I made this section SLIGHTLY thinner (width wise) than the top section so it could rotate up and into the top section for storage when not in use. To do this I ground off 1/4 " from one end of the 4' sections on the bottom.

Line up the rounded ends with the top section, clamp into place and drill a hole thru both sections and bolt together at the bottom corner. Ensure you have proper clearance for rotation. Drill holes for chain in corners.

FINISHING

Paint the entire piece to prevent rust and to make it purdy. Add shiny chain with link adapters to top and bottom corner holes, making sure that the bottom assembly is SLIGHTLY tilted toward the wall.

Find the studs in your wall and drill holes thru the angle iron in the appropriate locations and Lag bolt to wall. Ensure assembly is level.

and YOU ARE DONE!

Hope this helps. I built mine in about 4 hours. I know it is not perfect and is far from a commercial item, but it looks good and is very strong and functional. I will redo this as a DIY with photos when time permits.

cheers!
JARblue and LAVA like this.
__________________

H&R / Stillen / Berk / HKS / Swift / Michelin / UpRev / SPC / Amuse Rep / Seibon / Fringe XVO / TWM / more...
My Journal

Last edited by wheee!; 03-25-2010 at 05:59 PM. Reason: added bottom view pics
wheee! is offline   Reply With Quote
Old 03-06-2010, 07:03 PM   #2 (permalink)
Track Member

dlmartin81's Avatar

Join Date: Dec 2008
Location: Chalfont, PA
Age: 42
Posts: 923
Drives: 09 370Z
Rep Power: 607
dlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond reputedlmartin81 has a reputation beyond repute
Default

I like that. It looks professionally done. Looks like you even painted it.
dlmartin81 is offline   Reply With Quote
Old 03-06-2010, 08:55 PM   #3 (permalink)
Track Member

Join Date: Mar 2009
Location: Socal
Posts: 914
Drives: MY09 MB 6MT
Rep Power: 374
tbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond reputetbonesteak has a reputation beyond repute
Default

awesome job!!! looks very nice.
tbonesteak is offline   Reply With Quote
Old 03-06-2010, 09:46 PM   #4 (permalink)
Base Member

cdawg410's Avatar

Join Date: May 2009
Location: alexandria, va
Posts: 238
Drives: 2009 370z
Rep Power: 15
cdawg410 will become famous soon enough
Default

gonna need you to wash and dress those wheels soldier!!

Looks excellent, great job! Unfortunately I live in a condo so I'll have to convince my wife to let me build one and hang it above the bed.
cdawg410 is offline   Reply With Quote
Old 03-06-2010, 09:57 PM   #5 (permalink)
Track Member

Nikon FM's Avatar

Join Date: Jan 2009
Location: Snoqualmie WA
Posts: 973
Drives: 03 996TT Porsche
Rep Power: 606
Nikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond repute
Default

Quote:
Originally Posted by wheee! View Post
I built a rack for my tires to be stored on during winter. It turned out really good! I welded together some 1/8" angle iron and painted it black. I drilled some holes and used some chain to support the weight. Bolted it onto the stud in the wall with Lag bolts and, voila! Instant tire rack!






Oh I like this! Can you provide dimensions? I'm going to build one too. My garage is a pretty tight squeeze and this idea is great!
__________________

Buddy Revell: "One man's sooner is another man's later"
Nikon FM is offline   Reply With Quote
Old 03-06-2010, 10:43 PM   #6 (permalink)
Track Member

schrack150's Avatar

Join Date: Jan 2010
Location: Wheeling, West Virginia
Age: 37
Posts: 590
Drives: 09 370z PW
Rep Power: 16
schrack150 will become famous soon enough
Default

nice....ship or can i pick it up
________
Lovely Wendie99

Last edited by schrack150; 04-11-2011 at 02:20 AM.
schrack150 is offline   Reply With Quote
Old 03-07-2010, 06:51 AM   #7 (permalink)
A True Z Fanatic

ZCarMan's Avatar

Join Date: Jun 2009
Location: MD
Posts: 4,488
Drives: 09 Z34, 13 F-150
Rep Power: 25
ZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant futureZCarMan has a brilliant future
Default

Well done!
__________________
Jon
Swift | SPC | Stillen | Motordyne | AAM | Cobb | Hawk | Volk Racing | Bridgestone
Green Demon Eyes
ZCarMan is offline   Reply With Quote
Old 03-07-2010, 07:28 AM   #8 (permalink)
A True Z Fanatic

spearfish25's Avatar

Join Date: Mar 2009
Location: Naples, FL
Posts: 4,117
Drives: to work
Rep Power: 1855
spearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond reputespearfish25 has a reputation beyond repute
Send a message via AIM to spearfish25
Default

Looks great. The only thing I would add is a back-board that goes along the wall. You're going to have four tire marks on the dry wall...
__________________
2013 Cadillac V-Wagon, RIP Z
spearfish25 is offline   Reply With Quote
Old 03-07-2010, 08:03 AM   #9 (permalink)
Track Member

3SeventyZ's Avatar

Join Date: Dec 2008
Location: MD/DE
Posts: 626
Drives: 350Z, 370Z, SRT8
Rep Power: 475
3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute3SeventyZ has a reputation beyond repute
Default

nice!
__________________

2009 Magnetic Black 370Z Sport 6MT
3SeventyZ is offline   Reply With Quote
Old 03-07-2010, 10:21 AM   #10 (permalink)
A True Z Fanatic

ChrisSlicks's Avatar

Join Date: Mar 2009
Location: North East
Posts: 6,203
Drives: 09 370Z Sport M6
Rep Power: 652
ChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond repute
Default

Looks good! I need one that holds 16 tires/wheels please.
MagmaRed370z likes this.
ChrisSlicks is offline   Reply With Quote
Old 03-07-2010, 10:22 AM   #11 (permalink)
The370Z.com Sponsor

Mike's Avatar

Join Date: Jun 2009
Location: Loganville, GA
Posts: 5,944
Drives: 370z
Rep Power: 2185
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

great job!
__________________
NISSAN: 75 280Z / 86 300ZX GLL /87 Sentra SE / 03 350Z / 23 Z
Porsche: 93 968 / 23 Macan GTS / 93 968
Mike is offline   Reply With Quote
Old 03-07-2010, 10:29 AM   #12 (permalink)
A True Z Fanatic

m4a1mustang's Avatar

Join Date: Feb 2009
Location: Northern VA
Posts: 55,385
Drives: on two wheels
Rep Power: 6962
m4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond reputem4a1mustang has a reputation beyond repute
Default

That's really cool, good job. But you should clean off your wheels and tires before you put them up there to make them look nice and purdy.
__________________
- Steve
MAZOC Meet Thread
Zs & Coffee - Saturdays at 10AM in Fairfax, VA and Columbia, MD (Click the banner!)
LIKE us on Facebook!
m4a1mustang is offline   Reply With Quote
Old 03-07-2010, 10:51 AM   #13 (permalink)
Track Member

Join Date: Apr 2009
Location: Houston,Tx
Posts: 721
Drives: 2009 370Z Base 6MT
Rep Power: 506
B1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond reputeB1nks has a reputation beyond repute
Default

I'm pleasantly surprised at how well this looks, good job !
B1nks is offline   Reply With Quote
Old 03-07-2010, 11:54 AM   #14 (permalink)
A True Z Fanatic

wheee!'s Avatar

Join Date: Sep 2009
Location: Mod Capital of Canada
Age: 57
Posts: 7,354
Drives: cars. lots of cars.
Rep Power: 40181
wheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond reputewheee! has a reputation beyond repute
Default

Quote:
Originally Posted by cdawg410 View Post
gonna need you to wash and dress those wheels soldier!!

Looks excellent, great job! Unfortunately I live in a condo so I'll have to convince my wife to let me build one and hang it above the bed.
OK OK! I was VERY busy that day and had just enough time to hang the rack! The tires and wheels were in plastic bags STRAIGHT from the dealer as I had them install the winter tires there. I had no idea they were so mucky! I noticed it too and I feel a little embarrassed....


Quote:
Originally Posted by spearfish25 View Post
Looks great. The only thing I would add is a back-board that goes along the wall. You're going to have four tire marks on the dry wall...
Not at all. The rack is designed with angle iron and the bottom rack is spaced 8" from the back and the front one is 20" from the wall, leaving a perfect hollow for the tires to rest in. There is a approximately 3/4" between the rubber and the wall. NO CONTACT!

Thanks for all the positive feedback! I will post the dimensions/instructions here soon. Got to go to church this morning.....
__________________

H&R / Stillen / Berk / HKS / Swift / Michelin / UpRev / SPC / Amuse Rep / Seibon / Fringe XVO / TWM / more...
My Journal
wheee! is offline   Reply With Quote
Old 03-07-2010, 02:51 PM   #15 (permalink)
Track Member

kdoske's Avatar

Join Date: Jul 2009
Location: Louisiana
Posts: 541
Drives: 800whp Unicorn FI Z
Rep Power: 16
kdoske is on a distinguished road
Default

looks great!
kdoske is offline   Reply With Quote
