1 vs 2 muffler exhaust design

Maybe a stupid question, but it seems to me that the most efficient design would be the one with the least restrictions, turns, etc and get the exhaust out as

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Engine & Drivetrain > Intake/Exhaust


Reply

LinkBack Thread Tools Display Modes
Old 01-20-2009, 10:31 PM   #1 (permalink)
Base Member

Join Date: Jan 2009
Location: Colorado
Posts: 14
Drives: Wrangler Rubicon Unl
Rep Power: 16
JeepGuy is on a distinguished road
Default 1 vs 2 muffler exhaust design

Maybe a stupid question, but it seems to me that the most efficient design would be the one with the least restrictions, turns, etc and get the exhaust out as quickly as possible (without having no back pressure at all of course).

So why is it that we're seeing so many styles that seem to have a single shared muffler for the two pipes (eg Nismo and HKS) versus 2 individual mufflers a la Mine's and EXAS Evo.

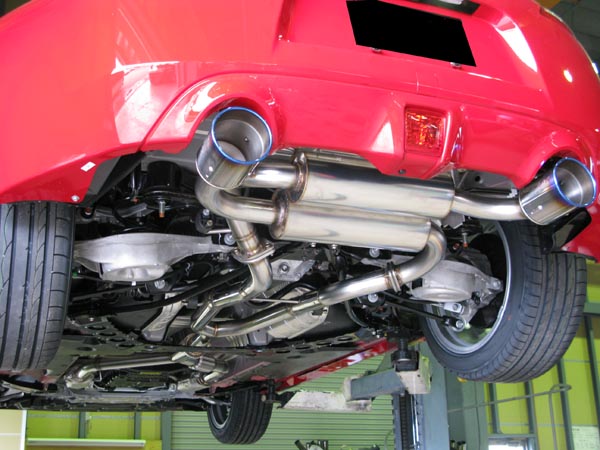

Single Muffler


Two Mufflers


I'm sure eventually dyno's will tell the tale of what works best, I'm just wondering why we would have the different takes on this, or if one method would be clearly superior.

Also, why no options like this yet
JeepGuy is offline   Reply With Quote
Old 01-21-2009, 05:11 AM   #2 (permalink)
Base Member

Nismo 370z's Avatar

Join Date: Jan 2009
Location: LA, California
Posts: 91
Drives: 2012 GM Nismo 370z
Rep Power: 481
Nismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond reputeNismo 370z has a reputation beyond repute
Default

The main difference would be the sound. But i assume that a true dual with straight through mufflers would yeild more power. Correct me if im wrong.
Nismo 370z is offline   Reply With Quote
Old 01-21-2009, 09:20 AM   #3 (permalink)
Enthusiast Member

JoeyD's Avatar

Join Date: Jan 2009
Location: Raeford, NC
Posts: 305
Drives: 09 NISMO 370Z
Rep Power: 186
JoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond repute
Default

I thought you would only want 0 back pressure on a turbo application. Right? Isn't back pressure related to torque? I am also fairly certain that you should have some type of cross-over (x-pipe or h-pipe) in order to balance the two banks of the engine.
JoeyD is offline   Reply With Quote
Old 01-21-2009, 11:09 AM   #4 (permalink)
The370Z.com Sponsor

Jon@Altered's Avatar

Join Date: Dec 2008
Location: Washington, D.C.
Posts: 135
Drives: Nissan 350Z
Rep Power: 284
Jon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond reputeJon@Altered has a reputation beyond repute
Default

Quote:
Originally Posted by JeepGuy View Post

Also, why no options like this yet

I recognize that photo; I shot it! Actually, our 3 inch True Dual Exhaust is designed specifically for the twin turbo charged VQ35/37 engine to achieve the greatest exhaust velocity for better mid-range boost response and high-RPM power. With turbo cars, the straightest exhaust path is the best way to allow the turbos to run at their maximum efficiency, which over course, helps the car produce more peak power. For N/A applications, the 3 inch turbo exhaust works well with supporting modifications(i.e. High Flow Cats/Test Pipes, ECU Flash/Tuning), however it does tend to shift the powerband to higher RPMs. We are in the process of developing a 2.5 inch true dual exhaust for the 370Z, and it will be very similar to our current 350Z 2.5 inch exhaust, shown here:




And hey OP, there is no such thing a stupid question! Ask away!

-Jon
__________________
“Being second is to be the first of the ones who lose.” ~ Ayrton Senna

Jon@Altered is offline   Reply With Quote
Old 01-21-2009, 11:48 AM   #5 (permalink)
A True Z Fanatic

Endgame's Avatar

Join Date: Nov 2008
Location: Phoenix
Posts: 1,613
Drives: Nothing Now!
Rep Power: 223
Endgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond reputeEndgame has a reputation beyond repute
Default

That dual 350Z exhaust is sweet....
Endgame is offline   Reply With Quote
Old 01-21-2009, 02:17 PM   #6 (permalink)
Track Member

Nikon FM's Avatar

Join Date: Jan 2009
Location: Snoqualmie WA
Posts: 973
Drives: 03 996TT Porsche
Rep Power: 606
Nikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond reputeNikon FM has a reputation beyond repute
Default Like the true dual

However, the real proof of the system will be the dyno numbers.............can't wait to see them.
__________________

Buddy Revell: "One man's sooner is another man's later"
Nikon FM is offline   Reply With Quote
Old 01-21-2009, 08:04 PM   #7 (permalink)
A True Z Fanatic

Crash's Avatar

Join Date: Dec 2008
Location: Los Angeles
Posts: 1,853
Drives: 02 Corvette Z06
Rep Power: 589
Crash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond reputeCrash has a reputation beyond repute
Default

Right. I wouldn't want LESS back pressure until I got my turbos installed. The last thing this car needs is to LOSE torque!

I'll be leaving the stock exhaust on until I get my turbos.
__________________
2002 Corvette Z06 - Totaled
2003 Corvette Z06 50th Anniversary
Crash is offline   Reply With Quote
Old 01-22-2009, 03:33 AM   #8 (permalink)
A True Z Fanatic

TerribleONE's Avatar

Join Date: Jan 2009
Location: Socal
Posts: 10,203
Drives: WOT
Rep Power: 5850
TerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond reputeTerribleONE has a reputation beyond repute
Default

exhausts WILL gain HP and TQ on a NA set up...
TerribleONE is offline   Reply With Quote
Old 01-22-2009, 09:33 AM   #9 (permalink)
Enthusiast Member

JoeyD's Avatar

Join Date: Jan 2009
Location: Raeford, NC
Posts: 305
Drives: 09 NISMO 370Z
Rep Power: 186
JoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond repute
Default

That is COMPLETELY dependent on the exhaust system. It is much easier to lose HP and Torque than it is to gain it. That was a fairly assanign comment actually. Too little back pressure and you WILL lose torque.
JoeyD is offline   Reply With Quote
Old 01-22-2009, 12:55 PM   #10 (permalink)
Base Member

Join Date: Jan 2009
Location: Florida
Posts: 22
Drives: 370Z
Rep Power: 16
370ZDreamer is on a distinguished road
Default

Quote:
Originally Posted by Jon@Altered View Post
I recognize that photo; I shot it! Actually, our 3 inch True Dual Exhaust is designed specifically for the twin turbo charged VQ35/37 engine to achieve the greatest exhaust velocity for better mid-range boost response and high-RPM power. With turbo cars, the straightest exhaust path is the best way to allow the turbos to run at their maximum efficiency, which over course, helps the car produce more peak power. For N/A applications, the 3 inch turbo exhaust works well with supporting modifications(i.e. High Flow Cats/Test Pipes, ECU Flash/Tuning), however it does tend to shift the powerband to higher RPMs. We are in the process of developing a 2.5 inch true dual exhaust for the 370Z, and it will be very similar to our current 350Z 2.5 inch exhaust, shown here:




And hey OP, there is no such thing a stupid question! Ask away!

-Jon

Great looking exhaust, I have a question though. I come from a muscle car background, particularly Mustangs and the difference between having a dual exhaust with a crossover vs without one is significant. You even find differences between different types of crossovers.

It doesnt look like you have a crossover in your system. Any particular reason why? Does this V6 engine family not react the same as a V8 engine with their exhaust pulses?
370ZDreamer is offline   Reply With Quote
Old 01-22-2009, 12:57 PM   #11 (permalink)
Base Member

Join Date: Jan 2009
Location: Florida
Posts: 22
Drives: 370Z
Rep Power: 16
370ZDreamer is on a distinguished road
Default

Quote:
Originally Posted by JoeyD View Post
That is COMPLETELY dependent on the exhaust system. It is much easier to lose HP and Torque than it is to gain it. That was a fairly assanign comment actually. Too little back pressure and you WILL lose torque.

Absolutely 100% correct, this happens on Mustangs too when you go with off-road exhaust. Good peak power in a narrow band up top but no balls down low.

Last edited by 370ZDreamer; 01-22-2009 at 01:01 PM.
370ZDreamer is offline   Reply With Quote
Old 01-22-2009, 01:28 PM   #12 (permalink)
Enthusiast Member

JoeyD's Avatar

Join Date: Jan 2009
Location: Raeford, NC
Posts: 305
Drives: 09 NISMO 370Z
Rep Power: 186
JoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond reputeJoeyD has a reputation beyond repute
Default

Quote:
Originally Posted by 370ZDreamer View Post
It doesnt look like you have a crossover in your system. Any particular reason why? Does this V6 engine family not react the same as a V8 engine with their exhaust pulses?

I think he mentioned this earlier but. The system in the pic is designed for a turbo application. V6 should still have some type of X-over in both NA and supercharged apps. In a turbo app. 0 back pressure is the goal thusly no x-over is really necessary.
__________________
When was the last time you did 230MPH in something with 4 seats?
JoeyD is offline   Reply With Quote
Old 01-23-2009, 12:45 PM   #13 (permalink)
Base Member

Join Date: Jan 2009
Location: Florida
Posts: 22
Drives: 370Z
Rep Power: 16
370ZDreamer is on a distinguished road
Default

Must have missed it. Thanks for the info!
