Forced Induction Finished Builds

tjaartk · 09-05-2011, 08:46 AM

Hi Guys,

Just finished the install

2009 370Z Stage 1 GTM SC
at 6000ft above sealevel - getting 6 psi with smaller pulley from Sam
(this pulley would give 8.5 psi theoretically at sea level)
Using free flow system with test pipe.

LOVE the conversion - congrats to Sam and GTM for a great kit.

theDreamer · 09-06-2011, 09:39 AM

Quote:

Originally Posted by tjaartk

Hi Guys,

Just finished the install

2009 370Z Stage 1 GTM SC
at 6000ft above sealevel - getting 6 psi with smaller pulley from Sam
(this pulley would give 8.5 psi theoretically at sea level)
Using free flow system with test pipe.

LOVE the conversion - congrats to Sam and GTM for a great kit.

Do you have a dyno of your numbers, want to update the list of builds. Also, do you have a manual or automatic?

Any other finished builds?

DIGItonium · 09-07-2011, 12:53 AM

Info

2009 370z
6MT
GTM Stage 2 TT Turn Key
5-6.5PSI

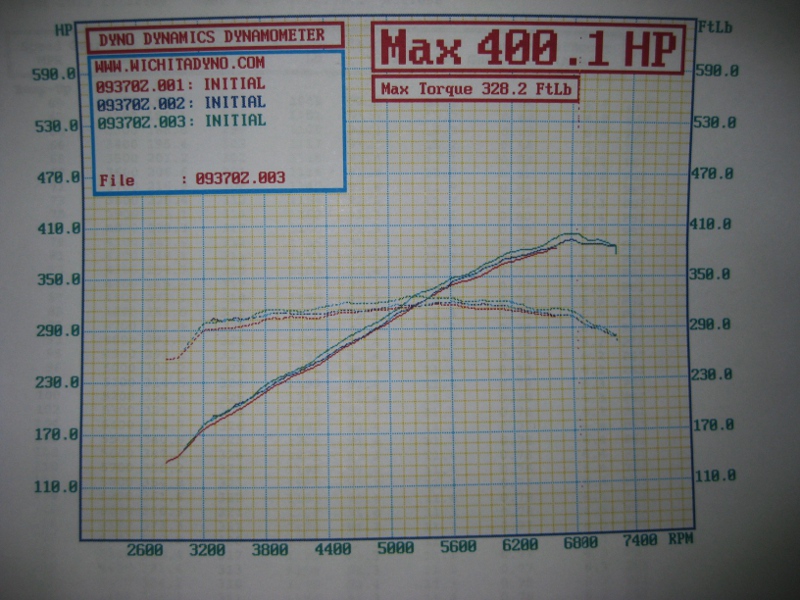

400HP & 328TQ
< 800 mi.

Hardware

GTM Stage 2 TT Turn Key Kit
GTM HD Oil Cooler
Fast Intentions HFC
Southbend DXD Stage 4 Clutch and Flywheel
ZSpeed CSC
NST Pulleys
Fast Intentions TDX with 12" Resonators & HFC

theDreamer · 09-07-2011, 12:05 PM

Have added about 5-6 more people today, if anyone knows more builds that I am missing please let me know. Remember to include these key items to help others:

-Year
-Kit used
-Current HP/Torque
-Current PSI
-Miles since kit installed
-Other upgrades (clutch/flywheel/engine/etc.), also include miles when these upgrades were completed with done after original FI install

tjaartk · 09-20-2011, 04:38 AM

Hi Guys,

Herewith my update:

2009 370Z with GTM SC stage 1
400 miles since install
Test pipes and free flow exhaust
Running at 6000 ft above sea level
Getting 6.3 PSI
330 hp to the wheels
261 ft-lbs to the wheels
Tested at 22 degrees C on dynojet

theDreamer · 09-29-2011, 02:02 PM

Updated the first page with a better layout for reading everything, not many options with vbulletin in making tables.
I know there are are few more builds being completed soon so post them up when you are done.

blackbird · 10-01-2011, 06:00 PM

2009 Base Model
GTM stage 2 Kit Installed and tuned by John at Z1
512 RWHP/ can;t find chart but high 400 torque
original at 8.5 upgraded to 10.5 PSI with Geiken clutch
Approx 10,000 Miles
Additional;
Z1: Oil Cooler, HKS EVC, MAF
NISMO: shocks, springs, Sway bars, Rear Spoiler, Rear Fascia.
Akebono brakes, Upgraded Z1 rotors and Ceramic pads
Nissan: Rays Wheels, 2011 Sport LSD & HD Axles (Broke original w/ Quaife LSD)
Bridgestone Pole Position 04 tires
Alpine speakers and Amp
Stillen: Front fascia, Under pulley, HFC, CBE
Powder coat wheels, 20% window tint, Painted door handles
OS Geiken Clutch
Kept OEM 18" wheels and Blizzaks for winter. They work fine.

blackbird · 10-01-2011, 06:02 PM

BTw have gone through 3 sensors, 2 for air flow and 1 something else like that. Light comes on, I go to dealer, they check and replace broke sensor. I don't really care what they are. has anyone else had any issue sensors??

theDreamer · 10-01-2011, 06:48 PM

Quote:

Originally Posted by blackbird

BTw have gone through 3 sensors, 2 for air flow and 1 something else like that. Light comes on, I go to dealer, they check and replace broke sensor. I don't really care what they are. has anyone else had any issue sensors??

Check the wiring and make sure nothing is contacting it directly which might be burning them up.

DIGItonium · 10-01-2011, 07:46 PM

Think a monospace font and "|" character would help?

blackbird · 10-17-2011, 12:19 PM

Dreamer: made suggestion to dealer mechanic. He checked all ground wires, a couple were a little dirty. He cleaned them and tightened and lines. So far so good! Thanks.

Dembflyr · 10-25-2011, 08:25 AM

Ok. I finally got on a dyno so here are the numbers for me.

2009
GTM Stage 1 Twin Turbo
474 WHP / 396 TQ
8 PSI
5000+ miles since install
Stock clutch / 34 row oil cooler with thermostatic plate / AFR gauge

theDreamer · 10-25-2011, 08:45 AM

Quote:

Originally Posted by Dembflyr

Ok. I finally got on a dyno so here are the numbers for me.

2009
GTM Stage 1 Twin Turbo
474 WHP / 396 TQ
8 PSI
5000+ miles since install
Stock clutch / 34 row oil cooler with thermostatic plate / AFR gauge

Nope, to late, not adding you.

KaienZ34 · 10-25-2011, 09:00 AM

Quote:

Originally Posted by theDreamer

Nope, to late, not adding you.

What a meany...

Dembflyr · 10-25-2011, 10:30 AM

Quote:

Originally Posted by theDreamer

Nope, to late, not adding you.

Well, in my defense, it does say "Finished Builds" and I don't think I'll ever be finished.
