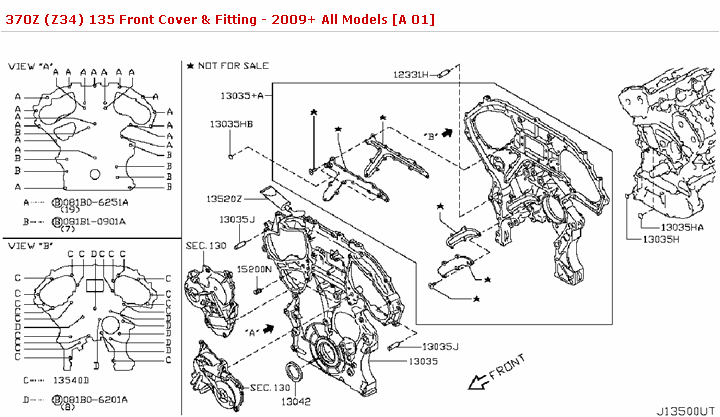

Front Engine Cover (Part 13035 and 13035+A)

I noticed last night that I have a small "chip" broken out of the rear side (13035+A) right on the seam where the two pieces come together. At work now,

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Engine & Drivetrain


Like Tree2Likes
  • 2 Post By 1slow370

Reply

LinkBack Thread Tools Display Modes
Old 04-23-2014, 01:27 PM   #1 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 15
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default Front Engine Cover (Part 13035 and 13035+A)

I noticed last night that I have a small "chip" broken out of the rear side (13035+A) right on the seam where the two pieces come together. At work now, but can post up a picture when I get home. It's in a spot where it would be impossible for me to have done it by dropping a tool on it or something ... no clue how it got there, or how long it has been there. Car has been running fine, though today is only the second day I have driven it since before winter. If there is a break and a piece missing at the top is it anything to worry about ?

__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax

Last edited by sixpax; 04-23-2014 at 01:59 PM.
sixpax is offline   Reply With Quote
Old 04-24-2014, 04:58 AM   #2 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 15
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

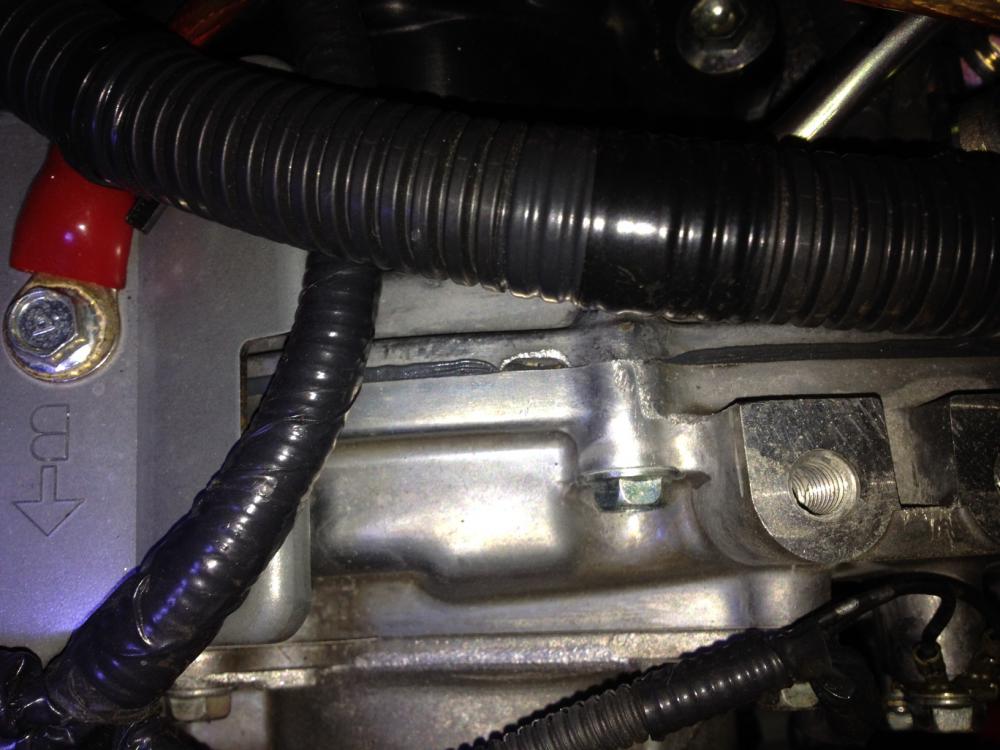

... here is a shot of the area ...

__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 04-24-2014, 06:44 AM   #3 (permalink)
A True Z Fanatic

Wonka2581's Avatar

Join Date: Nov 2012
Location: Chattanooga, TN
Posts: 3,083
Drives: MY WIFE CRAZY....
Rep Power: 2611
Wonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond reputeWonka2581 has a reputation beyond repute
Default

Thats really strange.....
__________________
"I have nothing to offer but blood, toil, tears and sweat""Winston Churchill"
Wonka2581 is offline   Reply With Quote
Old 04-24-2014, 06:47 AM   #4 (permalink)
A True Z Fanatic

Chuck33079's Avatar

Join Date: Nov 2011
Location: Houston
Posts: 12,265
Drives: 2011 370ztt
Rep Power: 29538
Chuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond reputeChuck33079 has a reputation beyond repute
Default

Has the motor ever been opened or the timing cover taken off? If not, that's really wierd. Maybe just hit it with some rtv and see if that's all you needed to do?
__________________
2011 MB Touring-Sport-6sp-Nav/GTM TT/FI TT TDX/JTran/Kosmic/Eibach/Hotchkis/SPC/CSF/RPS/SoThatsWhereAllMyMoneyWent
Chuck33079 is offline   Reply With Quote
Old 04-24-2014, 02:05 PM   #5 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 15
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Quote:
Originally Posted by Chuck33079 View Post
Has the motor ever been opened or the timing cover taken off? If not, that's really wierd. Maybe just hit it with some rtv and see if that's all you needed to do?
Never been opened ... I am the only owner ... 4 years old and just hit 19,000 miles ... I am clueless how or when that got there. I am guessing recently though because I am anal and am constantly looking at everything. I think that front piece is just like a giant dust and water shield to protect the timing stuff so I suppose I should just be able to RTV the hole and press on ?

I was hoping the crack wasn't creating from something inside hitting it so it broke not from me dropping something on it from the outside, but fromsoemthng hitting it on the inside. But I think if something inside hit it then I wouldn't even be able to start it. Runs fine.
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 04-24-2014, 03:06 PM   #6 (permalink)
A True Z Fanatic

1slow370's Avatar

Join Date: Aug 2009
Location: In the D
Posts: 3,732
Drives: v8 74 260z ;)
Rep Power: 7250
1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute
Default

that is not a chip it is one of the prey locations to seperate the two halves your case is perfectly fine also the front cover is sealed to contain the oil for the timing chains, it is not just a dust shield like on a car with a timing belt. lots of oil get sprayed inside that case. but again that is one of the factory pry locations on the vhr they all have a "chip" there
Chuck33079 and sixpax like this.
__________________
ANSWER PRICE LIST
Answers - - - - - - - - - - - - - - - - $0.75
Answers (requiring thought) - - - - $1.25
Answers (correct) - - - - - - - - - - $12.50

Last edited by 1slow370; 04-24-2014 at 03:08 PM.
1slow370 is offline   Reply With Quote
Old 04-24-2014, 03:11 PM   #7 (permalink)
A True Z Fanatic

sixpax's Avatar

Join Date: Dec 2011
Location: Maryland
Posts: 1,112
Drives: 2010 370Z NAG 7AT
Rep Power: 15
sixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of lightsixpax is a glorious beacon of light
Default

Quote:
Originally Posted by 1slow370 View Post
that is not a chip it is one of the prey locations to seperate the two halves your case is perfectly fine also the front cover is sealed to contain the oil for the timing chains, it is not just a dust shield like on a car with a timing belt. lots of oil get sprayed inside that case. but again that is one of the factory pry locations on the vhr they all have a "chip" there
Good to know thanks ... I am guessing that there should be RTV covering it though ? Maybe the piece there fell off and exposed the hole.
__________________
|| Build Journal || Follow Us: Web Site || Facebook ||
Quote:
"I got lapped by the pace car at Summit Point. Not many can say that." -- sixpax
sixpax is offline   Reply With Quote
Old 04-24-2014, 03:17 PM   #8 (permalink)
A True Z Fanatic

1slow370's Avatar

Join Date: Aug 2009
Location: In the D
Posts: 3,732
Drives: v8 74 260z ;)
Rep Power: 7250
1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute1slow370 has a reputation beyond repute
Default

most dont have rtv in that slot there is a pathway cut into the cover seam the rtv follows and it is below that notch.
