Arrow Stillen Underdrive Pulley - Review/Pics/Dyno/Vid

Review & Pics:

My friend and I installed the Stillen Underdrive Pulley this past Friday. The installation wasn't too bad overall. It took a total of about one hour, but that includes the time taken to get the car up on jack stands, remove the undertray, etc. The hardest part of the installation was getting the stock pulley off, because they torque the bolt from the factory really, really tight. My mechanic had to hold the starter in place with a pry bar while I loosened the stock pulley bolt with a torque wrench, and it took a lot of effort/strength to loosen that thing. It would have been easier if the car was on a lift, because I would've been able to use my body weight to pull down on the wrench. Doing it while laying on the ground though, I had to rely on muscle alone.

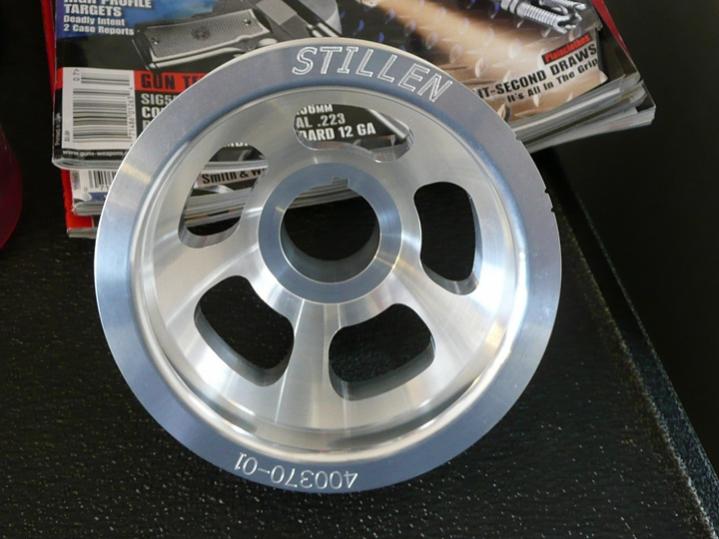

Here's the Stillen UD Pulley, front and rear:

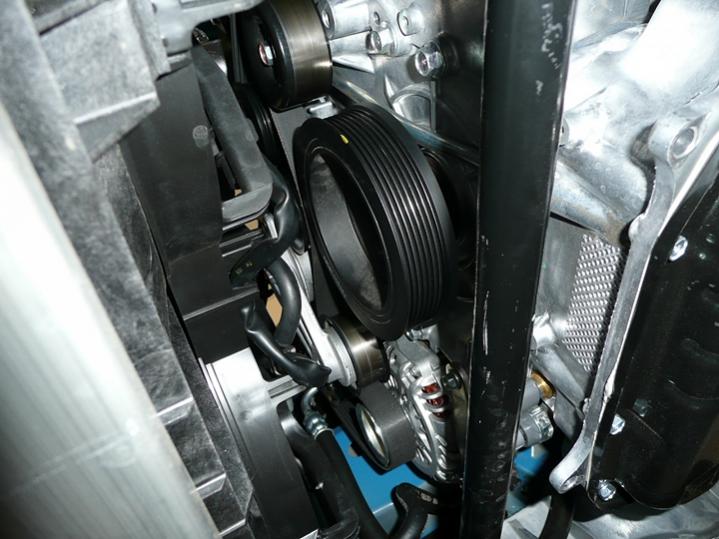

Here's the stock pulley, viewed from underneath the car:


We used a small gear puller slightly modified with one of the arms shortened (we were following wstar's lead on this, so credit goes to him (see wstar's Journal for more details if so desired)):

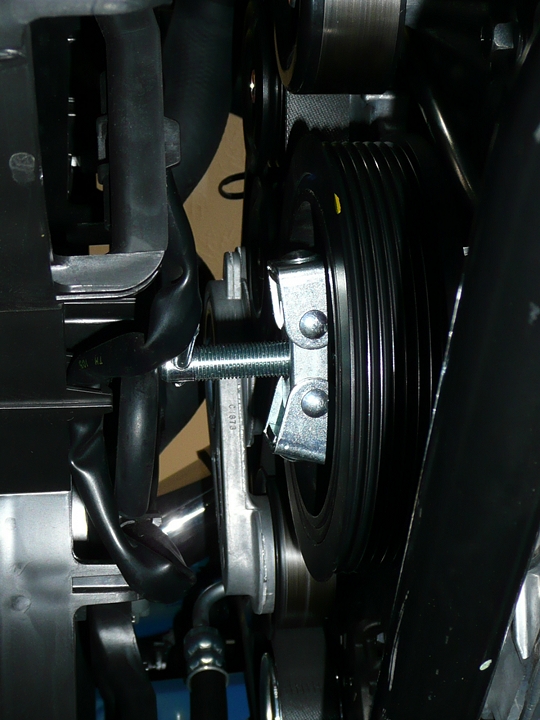

Stock pulley with the puller attached:

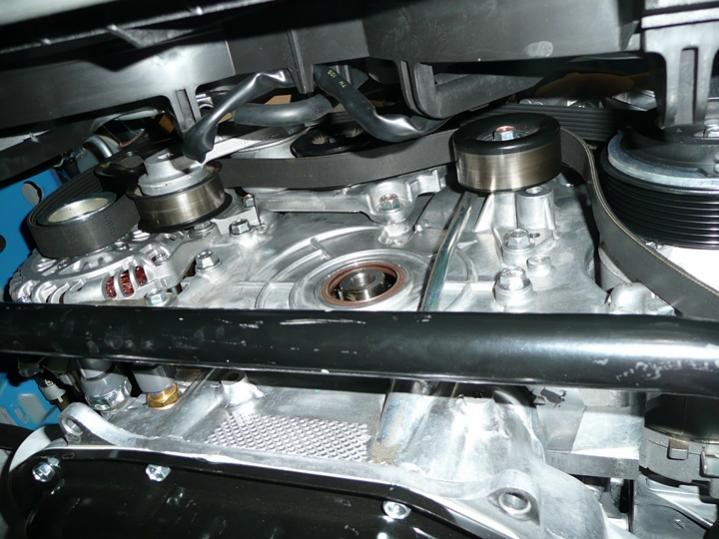

Here's how the engine looks after the stock pulley is removed:


And here's the new pulley, installed:


Driving Impressions:

My butt dyno hasn't noticed any huge gain per se. What is most noticeable to me, however, is that responsiveness has improved, especially off the line. Now, keep in mind that my Z is a 6MT. You know how when you launch off the line there's like a sort of momentary 'dead spot' or 'lag' when you initially engage the throttle and clutch? Well, this is where I notice the most change. That dead spot is virtually gone. My launches feel much more immediate now. The light goes green, I step on the gas and let the clutch out and BAM!! It's on! And I'm not even talking about hard launches. Just with regular around town type of driving, the responsiveness off the line is just more clean and crisp, if that makes any sense.

Also, you know how if you're driving with the AC off and then turn it on, you can actually feel the load the AC is putting on the engine? Like you can feel a bit of power being sucked away. Well, that feeling is noticeably reduced. It's not gone entirely, but it is reduced to a very significant degree.

Dyno:

Okay, enough with the butt dyno. Here's the real thing. I went and put my car back on a DynoJet this morning to see if there are any measurable gains from this thing.

Here's my previous DynoJet dyno:


Here's the updated one:


So peak HP goes up from 324.61whp to 330.23whp (+5.62). Peak torque also went up slightly, but I'd say that the peak torque increase is negligible. What is more significant, torque-wise, is the positive effect this has had on the curve. Compare the old and new torque curves carefully. It looks like I've gained back some of the low-end torque that I lost when I installed the headers. (This would be consistent with my perception of sharper response off the line.) Also, if you look at the top-end, it looks like the torque isn't dropping off as sharply as before! I'm keeping it up longer!!!

As for horsepower, I don't think a gain of 5.62 is half-bad, considering that I've already got the full intake and exhaust mods (i.e., my returns should be diminishing big time by now). All in all, I'm pleased with the results.

Video

YouTube - Stillen 370Z Underdrive Pulley Dyno Results
http://www.youtube.com/watch?v=Pog0uNl8jO8

Don't forget to rep if you found this informative/useful!
__________________
"There are no small accidents on this circuit." -- Ayrton Senna
316.8whp & 248 ft/lbs (Dyno Dynamics) | 319whp & 256 ft/lbs (DynoJet) (04/23/10)
Stillen G3 CAI, CBE, Pulley / F.I. LTH / GTSpec Ladder Brace / Setrab Oil Cooler / UpRev-tuned by Forged Perf.
semtex is offline   Reply With Quote
Old 05-20-2009, 01:28 PM   #2 (permalink)
The370Z.com Sponsor

Josh@STILLEN's Avatar

Join Date: Dec 2008
Location: Costa Mesa, CA
Posts: 1,197
Drives: 2004 G35 Coupe 6MT
Rep Power: 528
Josh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond reputeJosh@STILLEN has a reputation beyond repute
Default

I'm really disappointed you couldn't find a spectacular bedspread to shoot the product photos on.. boo!
Josh@STILLEN is offline   Reply With Quote
Old 05-20-2009, 01:31 PM   #3 (permalink)
A True Z Fanatic

ChrisSlicks's Avatar

Join Date: Mar 2009
Location: North East
Posts: 6,203
Drives: 09 370Z Sport M6
Rep Power: 648
ChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond repute
Default

I don't think you can fairly compare the low end on those charts, the previous dyno runs were started at higher RPM so you just see the spool up lag.

The high end you can see the distinct change, you picked up 10 ft/lbs at red-line which is impressive. Thanks to the reduced falloff you would probably see a benefit from bumping up the red-line slightly.
370Zsteve likes this.
ChrisSlicks is offline   Reply With Quote
Old 05-20-2009, 01:31 PM   #4 (permalink)
Track Member

ssqpolo's Avatar

Join Date: Jan 2009
Location: Florida
Posts: 882
Drives: '12 Black Nismo
Rep Power: 262
ssqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond reputessqpolo has a reputation beyond repute
Default

semtex journal is back at NUMERO UNO!! haha. congrats on the install.
ssqpolo is offline   Reply With Quote
Old 05-20-2009, 01:53 PM   #5 (permalink)
A True Z Fanatic

LiquidZ's Avatar

Join Date: Nov 2008
Location: Columbus, OH
Posts: 1,940
Drives: Mag. Black 2009 370Z
Rep Power: 699
LiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond reputeLiquidZ has a reputation beyond repute
Default

This is one mod any make of car that nobody dynos individually. Thank you for actually going about and doing it. Its good to see some hardcore proof of gains from an UD pulley.

Thanks man!
JCA92 likes this.
__________________
LiquidZ is offline   Reply With Quote
Old 05-20-2009, 01:56 PM   #6 (permalink)
A True Z Fanatic

semtex's Avatar

Join Date: Jan 2009
Location: Behind enemy lines
Age: 48
Posts: 5,995
Drives: People to drink
Rep Power: 27
semtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond repute
Default

Quote:
Originally Posted by ChrisSlicks View Post
I don't think you can fairly compare the low end on those charts, the previous dyno runs were started at higher RPM so you just see the spool up lag.

The high end you can see the distinct change, you picked up 10 ft/lbs at red-line which is impressive. Thanks to the reduced falloff you would probably see a benefit from bumping up the red-line slightly.
I'm only comparing the small bit from 2500-3000 rpm. I think it's fair to compare at those points. But prior to 2500 rpm I agree that it's due to the runs starting at different rpms. Having said that, the delta between the two from 2500 - 3000 rpm isn't much. But I'll take what I can get!
__________________
"There are no small accidents on this circuit." -- Ayrton Senna
316.8whp & 248 ft/lbs (Dyno Dynamics) | 319whp & 256 ft/lbs (DynoJet) (04/23/10)
Stillen G3 CAI, CBE, Pulley / F.I. LTH / GTSpec Ladder Brace / Setrab Oil Cooler / UpRev-tuned by Forged Perf.
semtex is offline   Reply With Quote
Old 05-20-2009, 01:56 PM   #7 (permalink)
A True Z Fanatic

wstar's Avatar

Join Date: Mar 2009
Location: Houston, TX
Posts: 4,018
Drives: too slow
Rep Power: 225
wstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond reputewstar has a reputation beyond repute
Default

Nice work man. You'll be hearing from my lawyer shortly re: theft of my patented gear puller modification
__________________
7AT Track Car!
Journal thread / Car setup details
wstar is offline   Reply With Quote
Old 05-20-2009, 01:58 PM   #8 (permalink)
A True Z Fanatic

semtex's Avatar

Join Date: Jan 2009
Location: Behind enemy lines
Age: 48
Posts: 5,995
Drives: People to drink
Rep Power: 27
semtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond repute
Default

Quote:
Originally Posted by Josh@STILLEN View Post
I'm really disappointed you couldn't find a spectacular bedspread to shoot the product photos on.. boo!
LOL....hey, I've got a stack of gun magazines for a backdrop this time. Gotta change it up every now and then, you know?

Quote:
Originally Posted by wstar View Post
Nice work man. You'll be hearing from my lawyer shortly re: theft of my patented gear puller modification
HA! I'd better get my checkbook ready for the royalty checks I'm gonna have to write, huh?
__________________
"There are no small accidents on this circuit." -- Ayrton Senna
316.8whp & 248 ft/lbs (Dyno Dynamics) | 319whp & 256 ft/lbs (DynoJet) (04/23/10)
Stillen G3 CAI, CBE, Pulley / F.I. LTH / GTSpec Ladder Brace / Setrab Oil Cooler / UpRev-tuned by Forged Perf.
semtex is offline   Reply With Quote
Old 05-20-2009, 02:03 PM   #9 (permalink)
A True Z Fanatic

ChrisSlicks's Avatar

Join Date: Mar 2009
Location: North East
Posts: 6,203
Drives: 09 370Z Sport M6
Rep Power: 648
ChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond reputeChrisSlicks has a reputation beyond repute
Default

Quote:
Originally Posted by semtex View Post
I'm only comparing the small bit from 2500-3000 rpm. I think it's fair to compare at those points. But prior to 2500 rpm I agree that it's due to the runs starting at different rpms. Having said that, the delta between the two from 2500 - 3000 rpm isn't much. But I'll take what I can get!
Yep, fair enough. Now that you have the software figured out you can overlay the old best run with the new best run to really compare.
ChrisSlicks is offline   Reply With Quote
Old 05-20-2009, 02:14 PM   #10 (permalink)
A True Z Fanatic

SoCal 370Z's Avatar

Join Date: Feb 2009
Location: US of A
Posts: 2,842
Drives: Answers
Rep Power: 28
SoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond reputeSoCal 370Z has a reputation beyond repute
Talking

Quote:
Originally Posted by Josh@STILLEN View Post
I'm really disappointed you couldn't find a spectacular bedspread to shoot the product photos on.. boo!
Ditto. Unless Semtex acquiesces and at least throws a cigar magazine into the mix I'll have to stop reading his threads and force him to return my journal.
__________________
( Click to show/hide )
SoCal 370Z is offline   Reply With Quote
Old 05-20-2009, 02:16 PM   #11 (permalink)
Enthusiast Member

Skorch's Avatar

Join Date: Feb 2009
Location: Phoenix, AZ
Posts: 469
Drives: 2012 370Z
Rep Power: 535
Skorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond repute
Default

Thanks for a great writeup. I wonder how the lightweight pulley would compare to the underdrive one in performance. I'm most likely supercharging my Z in the future so an underdrive pulley would be inaptopriate for me.
__________________
'12 370Z + Sport | Stillen Gen3 Intakes | Stillen UD Pulley | Motordyne M370 | FI Exhaust | FI HFCs | 4.08 Gears | Uprev tuned
Skorch is offline   Reply With Quote
Old 05-20-2009, 02:29 PM   #12 (permalink)
Base Member

ZforMe's Avatar

Join Date: Jan 2009
Location: Memphis TN
Posts: 238
Drives: 370Z Sport Auto PG
Rep Power: 11
ZforMe is on a distinguished road
Default

Quote:
Originally Posted by Skorch View Post
Thanks for a great writeup. I wonder how the lightweight pulley would compare to the underdrive one in performance. I'm most likely supercharging my Z in the future so an underdrive pulley would be inaptopriate for me.
Skorch, I was wondering the same thing, but have decided I will probably go underdrive for now then swap if the supercharger thing becomes a reality for me. I'm sure the underdrive will be a quick sale to a fellow forum member.
__________________
13.369 @ 102.73 Bone Stock. BERK HFC's installed 5/14/09 @ 1490miles, 13.212 @ 106.15. Cobb Post MAF Hoses installed 3/20/10 @ 5,043miles, future: FI exhaust with 18" res and s/s cans.
ZforMe is offline   Reply With Quote
Old 05-20-2009, 02:40 PM   #13 (permalink)
A True Z Fanatic

semtex's Avatar

Join Date: Jan 2009
Location: Behind enemy lines
Age: 48
Posts: 5,995
Drives: People to drink
Rep Power: 27
semtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond reputesemtex has a reputation beyond repute
Default

Quote:
Originally Posted by SoCal 370Z View Post
Ditto. Unless Semtex acquiesces and at least throws a cigar magazine into the mix I'll have to stop reading his threads and force him to return my journal.
*sigh* Tough crowd. Okay how's this? Surreal enough for you?

__________________
"There are no small accidents on this circuit." -- Ayrton Senna
316.8whp & 248 ft/lbs (Dyno Dynamics) | 319whp & 256 ft/lbs (DynoJet) (04/23/10)
Stillen G3 CAI, CBE, Pulley / F.I. LTH / GTSpec Ladder Brace / Setrab Oil Cooler / UpRev-tuned by Forged Perf.
semtex is offline   Reply With Quote
Old 05-20-2009, 02:46 PM   #14 (permalink)
A True Z Fanatic

phelan's Avatar

Join Date: Apr 2009
Location: CA
Age: 33
Posts: 9,514
Drives: Scoobaroo
Rep Power: 3401
phelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond reputephelan has a reputation beyond repute
Default

Quote:
Originally Posted by semtex View Post
*sigh* Tough crowd. Okay how's this? Surreal enough for you?

You, sir, just won every award there is on this forum.
phelan is offline   Reply With Quote
Old 05-20-2009, 02:51 PM   #15 (permalink)
Enthusiast Member

Skorch's Avatar

Join Date: Feb 2009
Location: Phoenix, AZ
Posts: 469
Drives: 2012 370Z
Rep Power: 535
Skorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond reputeSkorch has a reputation beyond repute
Default

One more question: how has the synchro rev-match responded to the pulley assuming that you have the sports package?
__________________
'12 370Z + Sport | Stillen Gen3 Intakes | Stillen UD Pulley | Motordyne M370 | FI Exhaust | FI HFCs | 4.08 Gears | Uprev tuned
Skorch is offline   Reply With Quote
