Combination Oil Sender. Why does no one talk about this?

I've been doing research on how folks run an oil pressure Guage. Seems to be 2 options: T the oem pressure port Use a sandwich plate for an aftermarket cooler

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Engine & Drivetrain


Like Tree28Likes
  • 1 Post By Iammeowwwwww
  • 5 Post By SonicVQ
  • 4 Post By 40 to 332
  • 4 Post By SonicVQ
  • 6 Post By phunk
  • 3 Post By SonicVQ
  • 2 Post By Averying
  • 1 Post By projectpanda
  • 2 Post By THE BULL

Reply

LinkBack Thread Tools Display Modes
Old 01-03-2022, 11:29 AM   #1 (permalink)
Base Member

Join Date: Feb 2021
Location: california
Posts: 32
Drives: 370z MR M6
Rep Power: 195
Iammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond repute
Default Combination Oil Sender. Why does no one talk about this?

I've been doing research on how folks run an oil pressure Guage.

Seems to be 2 options:
T the oem pressure port
Use a sandwich plate for an aftermarket cooler

What about a combination oil sender? Something like the link below:

https://www.rallysportdirect.com/par...saArIfEALw_wcB

In theory this would operate the dummy light and an oil pressure Guage without using 2 sensors and a T.
SeeThruHead likes this.
Iammeowwwwww is offline   Reply With Quote
Old 01-03-2022, 02:39 PM   #2 (permalink)
Track Member

SeeThruHead's Avatar

Join Date: Jun 2020
Location: Toronto
Posts: 715
Drives: Red '18 Sport Manual
Rep Power: 23497
SeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond reputeSeeThruHead has a reputation beyond repute
Default

probably because the t method doesn't mess with the 370z oem equipment in any way. And it's easier /shrug
__________________
My Build thread STH Build Plan Thread
Images too big fix here
SeeThruHead is offline   Reply With Quote
Old 01-03-2022, 11:07 PM   #3 (permalink)
Base Member

Join Date: Jan 2016
Location: Ontario
Posts: 230
Drives: G37 Sport
Rep Power: 6720
SonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond repute
Default

There is a third option:
Remove the low oil pressure switch (it turns on the light at < 5 psi!!)
and install the gauge.

As I see it, since you have a pressure gauge, you can detect low oil pressure before the light turns on... for example < 14 psi.

The oil pressure switch is not used by the ECM.

The oil pressure switch is wired directly to the IPDM/ER and when it sees low oil pressure, the contacts close and that ground the signal. Then the UPDM/ER sends a CAN bus message to the cluster to turn on the red low oil pressure light.

If the switch is unplugged, it never get grounded and the low oil pressure light will never turn on.
BUT you have the gauge, so nothing to worry about!

I did this on my G37 just over a year ago when I installed my oil pressure gauge.
phunk, JARblue, Rusty and 2 others like this.
SonicVQ is offline   Reply With Quote
Old 01-04-2022, 10:31 AM   #4 (permalink)
Enthusiast Member

Join Date: Apr 2013
Location: Kimberley, BC, CANADA
Posts: 435
Drives: 13 370Z BS M6 Sport
Rep Power: 11
40 to 332 is on a distinguished road
Default

Recognize that if you elect to go with the ProSport Oil Pressure Sensor, you'll need to install a 1/8 male BSPT to 1/8 female NPT adapter since the OEM port is BSP (i.e., metric).
JARblue, Rusty, ZoomZ and 1 others like this.
40 to 332 is offline   Reply With Quote
Old 01-04-2022, 02:45 PM   #5 (permalink)
Base Member

Join Date: Jan 2016
Location: Ontario
Posts: 230
Drives: G37 Sport
Rep Power: 6720
SonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond repute
Default

Quote:
Originally Posted by 40 to 332 View Post
Recognize that if you elect to go with the ProSport Oil Pressure Sensor, you'll need to install a 1/8 male BSPT to 1/8 female NPT adapter since the OEM port is BSP (i.e., metric).
Excellent add!

Note:
This older style and larger oil pressure sensor uses a flexible tube/bellows to push/pull a wiper/contact across a wire wound resistor. This results in a resistance of 3-160 ohms and only works with older analog gauges. From my experience, they are not accurate and don't work well for long, as they wear out quickly due to the constant moving of the "wiper"


Today, most pressure sensors are all electronic, temperature compensated and provide a voltage of 0.5 volts for 0 psi, to 4.5 volts for 150 psi. (or 4.5v @ 100 psi)

As you can imagine, the electronic pressure sensor are more accurate, quicker to respond and durable.
JARblue, Rusty, Optimiser and 1 others like this.
SonicVQ is offline   Reply With Quote
Old 01-05-2022, 10:07 PM   #6 (permalink)
A True Z Fanatic

Join Date: Mar 2009
Location: Chicago
Posts: 3,653
Drives: 370
Rep Power: 944523
phunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond reputephunk has a reputation beyond repute
Default

Quote:
Originally Posted by SonicVQ View Post
There is a third option:
Remove the low oil pressure switch (it turns on the light at < 5 psi!!)
and install the gauge.

As I see it, since you have a pressure gauge, you can detect low oil pressure before the light turns on... for example < 14 psi.

The oil pressure switch is not used by the ECM.

The oil pressure switch is wired directly to the IPDM/ER and when it sees low oil pressure, the contacts close and that ground the signal. Then the UPDM/ER sends a CAN bus message to the cluster to turn on the red low oil pressure light.

If the switch is unplugged, it never get grounded and the low oil pressure light will never turn on.
BUT you have the gauge, so nothing to worry about!

I did this on my G37 just over a year ago when I installed my oil pressure gauge.
I have expressed the same opinion for many years... the stock idiot light has no real purpose once there is a gauge in the car, especially a gauge with warning light and/or sound. Lots of people seem to be opposed to the idea of ditching that light. Of course a small part of me would slightly prefer it still work, but I have a much stronger preference to less clutter and crap in the engine bay if I can avoid it.

But here is the best reason to just put the pressure sensor on an oil sandwich plate: The cast upper pan is *extremely* thin and weak at the oil pressure port. Many many people have cracked the pan messing with the sensor or installing a different one. Let along hanging a large bulky one in that port like shown in the original post here, I feel like a good pothole will make that thing break the bung off the pan . So at this point, having cracked my own upper oil pan pressure bung, and knowing so many others that have, I am hesitant to screw with the stock sensor port at all now. Replacing that upper pan is a serious job that you do not want to have to do if the engine is in the car.
JARblue, Rusty, Optimiser and 3 others like this.
__________________
Charles @ CJ Motorsports : Website | Facebook | Instagram | YouTube
Home of the 9 second, stock longblock, stock drivetrain 6MT 370z. 9.91 @ 142mph
phunk is offline   Reply With Quote
Old 01-06-2022, 08:18 AM   #7 (permalink)
Base Member

Join Date: Jan 2016
Location: Ontario
Posts: 230
Drives: G37 Sport
Rep Power: 6720
SonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond reputeSonicVQ has a reputation beyond repute
Default

Quote:
Originally Posted by phunk View Post
Many many people have cracked the pan messing with the sensor or installing a different one. Let along hanging a large bulky one in that port like shown in the original post here, I feel like a good pothole will make that thing break the bung off the pan
Understood... I read about others having that same issue and not just on this engine.
Pegasus Auto Racing has an excellent article on NPT fitting and how much to tighten the tapered NPT fittings: https://www.pegasusautoracing.com/do...ocID=TECH00097

In a nutshell, they recommend any 1/8" NPT fitting only needs 1.5 - 3 turn from finger tight.
When I put in my pressure sensor, I used a thread sealer and did 1.5 turns and started the engine to check for leaks. I had a small drip, so I tightened an addition 1/2 turn, and all is good to this day.

In the spring I am going to put on a sandwich plate with a pressure sensor.
This will place the pressure sensor BEFORE the oil filter, and the factory located pressure sensor will measure the pressure AFTER the oil filter.

Then I will be able to test the pressure drop for different oil filters, by engine RPM and oil temperature.
I am really curious to see how much pressure drop difference there is between oil filters.
phunk, JARblue and Rusty like this.
SonicVQ is offline   Reply With Quote
Old 01-11-2022, 12:09 PM   #8 (permalink)
Enthusiast Member

Averying's Avatar

Join Date: May 2018
Location: Rhode Island
Posts: 396
Drives: '09 370Z, '03 G35
Rep Power: 11063
Averying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond reputeAverying has a reputation beyond repute
Default

Assuming you guys have aftermarket oil coolers with -AN lines, why not use an AN tee fitting with 1/8” npt like this? https://www.anhosefittings.com/an-ma...iABEgJO6PD_BwE

This gives you more flexibility when mounting the sensor (before/after oil cooler, driver or passenger side of car, and orientation of the sensor coming out of the fitting). I had to run this solution with my GTM oil filter relocation kit because the oil filter relocation lines blocked the OEM pressure sensor location. Haven’t had any issues at all.


Sent from my iPhone using Tapatalk
phunk and Rusty like this.
__________________
2009 Sport Touring | Platinum Graphite | GTM Stage 1 Supercharger | BC BR Coilovers | Hotchkis Swaybar | Z1 FUCAs | AME TM-02 Wheels | Z1 2-piece Front Rotors | Z1 Clutch & Flywheel | Invidia Gemini Catback | GTM Resonated Test Pipes
Averying is offline   Reply With Quote
Old 01-12-2022, 08:37 AM   #9 (permalink)
Base Member

projectpanda's Avatar

Join Date: Nov 2016
Location: Atlanta
Posts: 120
Drives: 10' G37S White 6MT
Rep Power: 8
projectpanda is on a distinguished road
Default

Quote:
Originally Posted by Averying View Post
Assuming you guys have aftermarket oil coolers with -AN lines, why not use an AN tee fitting with 1/8” npt like this? https://www.anhosefittings.com/an-ma...iABEgJO6PD_BwE

This gives you more flexibility when mounting the sensor (before/after oil cooler, driver or passenger side of car, and orientation of the sensor coming out of the fitting). I had to run this solution with my GTM oil filter relocation kit because the oil filter relocation lines blocked the OEM pressure sensor location. Haven’t had any issues at all.


Sent from my iPhone using Tapatalk
This is the same that I have choosen to run also. haven't installed it yet since engine is out.
Averying likes this.
__________________
RHM 75mm TB & ported up/low mani., 3" intakes/velocity stack, Z1 Headers, Motordyne ART pipes, HBP 3.5" exhaust, Tein MonoSport, SPL F/R arms, endlinks, and tie rods , Eibach sways, Z1 rotors F/R, diff bush., subframe collar, Bell Raceworks diff brace
projectpanda is offline   Reply With Quote
Old 06-06-2022, 04:15 PM   #10 (permalink)
Base Member

Join Date: Feb 2021
Location: california
Posts: 32
Drives: 370z MR M6
Rep Power: 195
Iammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond reputeIammeowwwwww has a reputation beyond repute
Default

Wow so many good replies! I forgot I commented in this post until now, as you can tell, I've not wired in a Guage yet lol.

Quote:
Originally Posted by Averying View Post
Assuming you guys have aftermarket oil coolers with -AN lines, why not use an AN tee fitting with 1/8” npt like this? https://www.anhosefittings.com/an-ma...iABEgJO6PD_BwE

This gives you more flexibility when mounting the sensor (before/after oil cooler, driver or passenger side of car, and orientation of the sensor coming out of the fitting). I had to run this solution with my GTM oil filter relocation kit because the oil filter relocation lines blocked the OEM pressure sensor location. Haven’t had any issues at all.


Sent from my iPhone using Tapatalk
I thought about this as well, I have a thermostatic sandwich plate from Z1, so I'm not sure if would be 100%accurate?
Iammeowwwwww is offline   Reply With Quote
Old 06-07-2022, 07:52 AM   #11 (permalink)
Base Member

Join Date: Apr 2021
Location: Florida
Posts: 217
Drives: G37S
Rep Power: 26847
THE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond reputeTHE BULL has a reputation beyond repute
Default

Well there's a 5th option however this one is a bit more expensive, requires a BSP adapter and wiring to adjust new values.

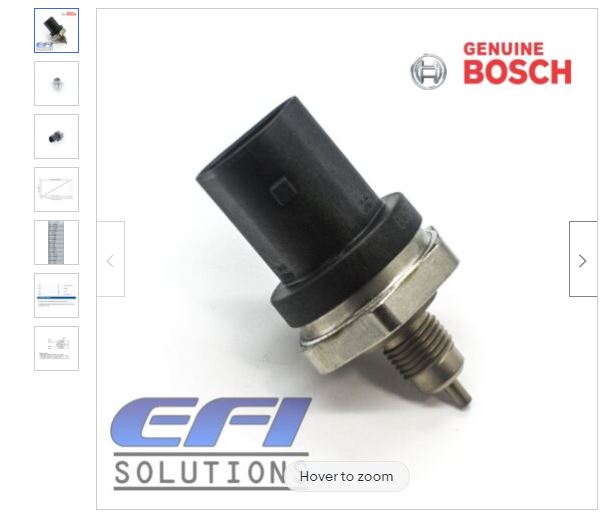

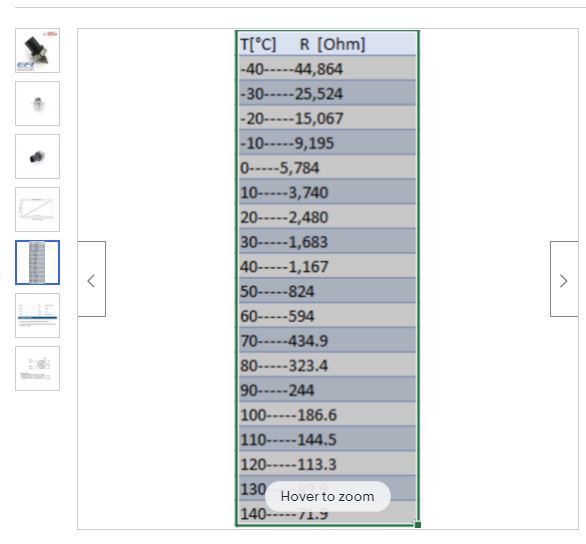

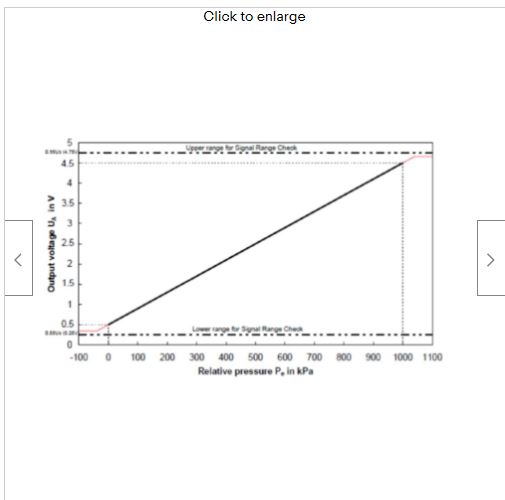

Haltech Bosch came out with a single physical sensor that reads temperature and pressure as well.

If the values can be adjusted via resistors it could technically work. In all reality the ECM would just need to see the same high oil temp voltages as the OEM. Under this condition it just serves as a monitor.

4 wires

$100-$130 sensor + connector

External Oil pressure monitoring device is required, it's possible that this same sensor can be connected to the A/C pressure switch or Evap pressure switch to display OIL PSI on ECUTEK.








sx moneypit and Iammeowwwwww like this.
THE BULL is offline   Reply With Quote
Old 07-08-2022, 06:40 AM   #12 (permalink)
Base Member

Join Date: Jun 2014
Location: Sydney Australia
Posts: 39
Drives: 12 Nissan 370Z M6
Rep Power: 10
Z34Life is on a distinguished road
Default

Quote:
Originally Posted by THE BULL View Post
Well there's a 5th option however this one is a bit more expensive, requires a BSP adapter and wiring to adjust new values.


Haltech Bosch came out with a single physical sensor that reads temperature and pressure as well.

If the values can be adjusted via resistors it could technically work. In all reality the ECM would just need to see the same high oil temp voltages as the OEM. Under this condition it just serves as a monitor.

4 wires

$100-$130 sensor + connector

External Oil pressure monitoring device is required, it's possible that this same sensor can be connected to the A/C pressure switch or Evap pressure switch to display OIL PSI on ECUTEK.








I am really curious about this application and how this would connect up to tablet gauges. Not sure if it would pick up temp and pressure appropriately via the ECU readings.
