Laser Interceptor Laser Jammer Installation

So I spanked me a 2010 PW 370z sport package and all and decided before I get into any trouble a laser jammer and radar detector would do the trick.

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > DIY Section (Do-It-Yourself)


Reply

LinkBack Thread Tools Display Modes
Old 04-21-2010, 06:49 PM   #1 (permalink)
Base Member

Join Date: Dec 2009
Location: plymouth
Posts: 55
Drives: 07 Explorer XLT
Rep Power: 15
antivirus6613 is on a distinguished road
Default Laser Interceptor Laser Jammer Installation

So I spanked me a 2010 PW 370z sport package and all and decided before I get into any trouble a laser jammer and radar detector would do the trick. I put the radar detector in the first day (V1) and then had the laser jammer in the trunk in the box waiting for a good day to install.

Unfortunately the second day I got a ticket 37mph over and it was a laser ticket...lesson learned. Time to put the jammers in.

First off the laser jammer is the "Laser Interceptor" which I have installed previously in a 2007 Ford Explorer and have no problems with it. JTG and JFG almost everytime, and the times a punchthrough (where the jammers lose impact) occurs is less than 200 feet so you still have a jam for a while. I got the LI Quad as police officers in my area shoot the front and rear of your car with laser.

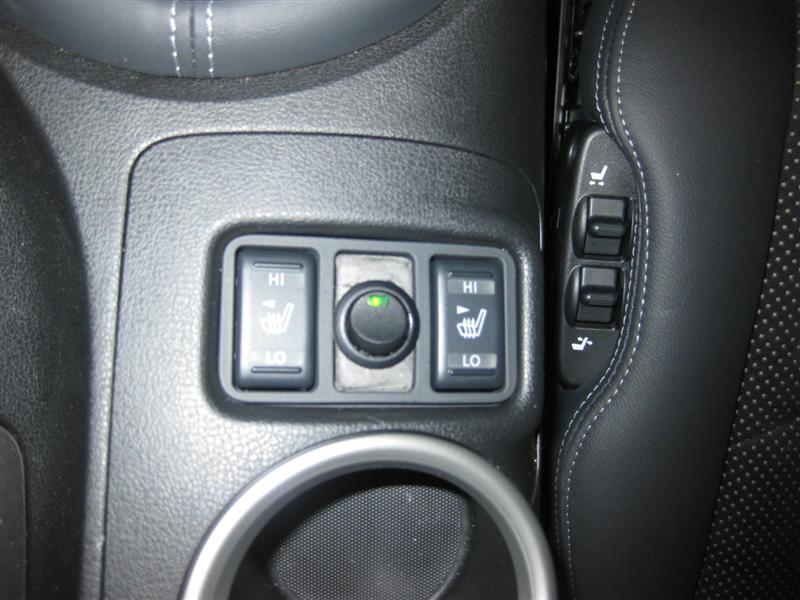

First step of installation is running the getting power to the CPU and routing the wires through the cabin. I took out the bank of middle switches and installed the kill switch in the center bank.

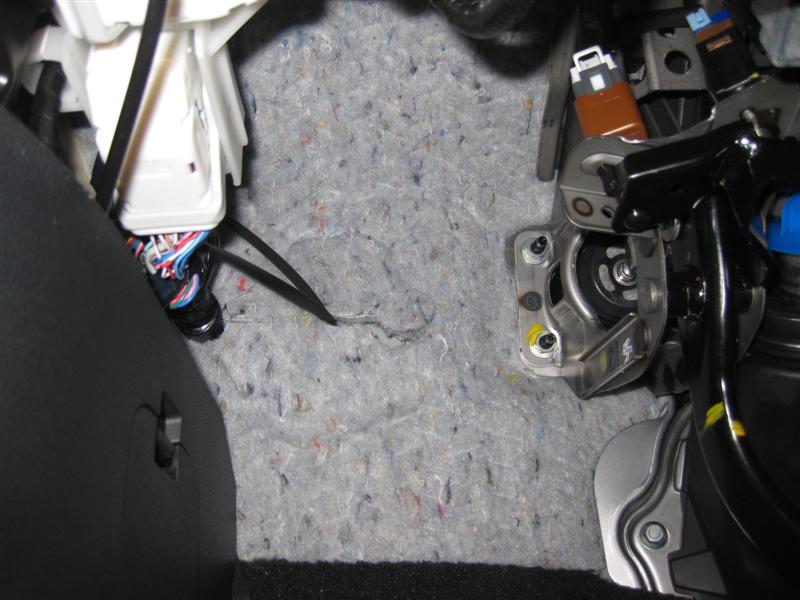

The wires can be routed through the kickplates on the left side of the driver



The front jammers were a bit harder then the rear

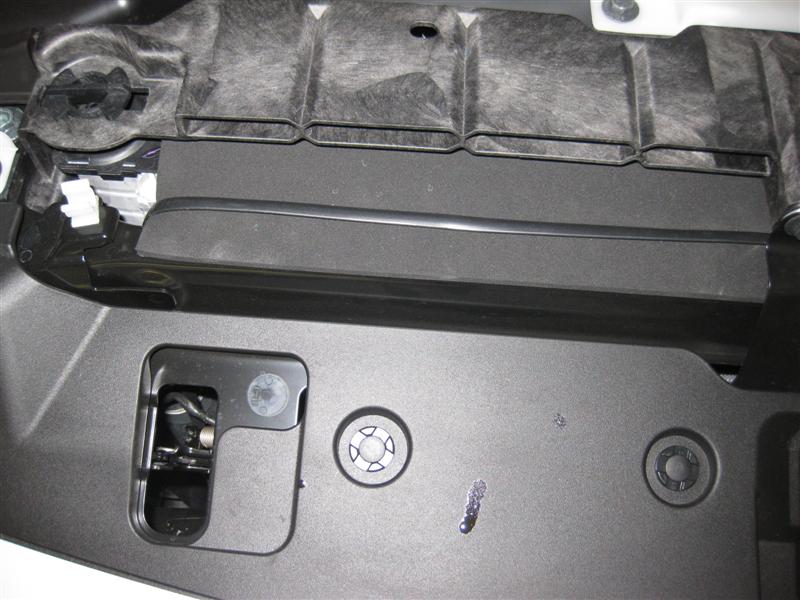

I then routed the wires across the engine bay



Under the weather stripping



Cut a slit in the grommet and into the car



Pulled the wires through the interior

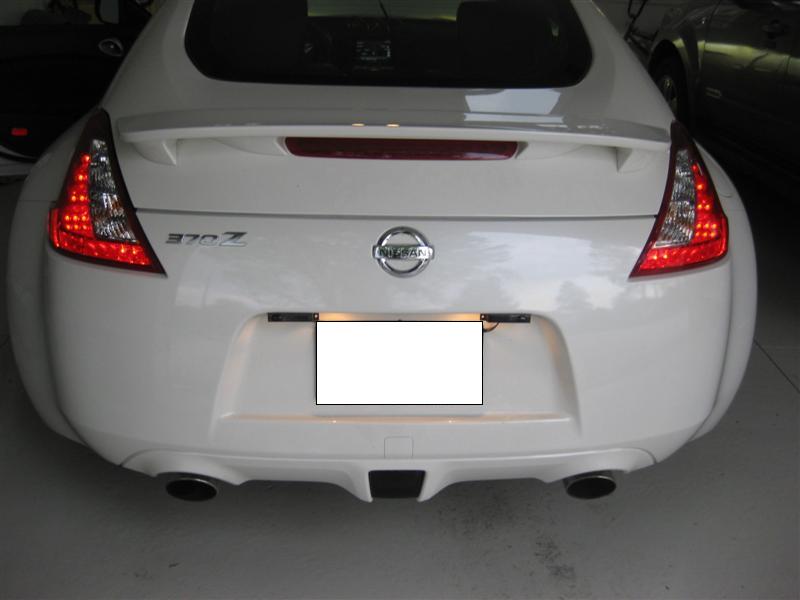

The rear jammer heads were put into place and the wires routed behind the license plate where two small holes go that lead into the bumper

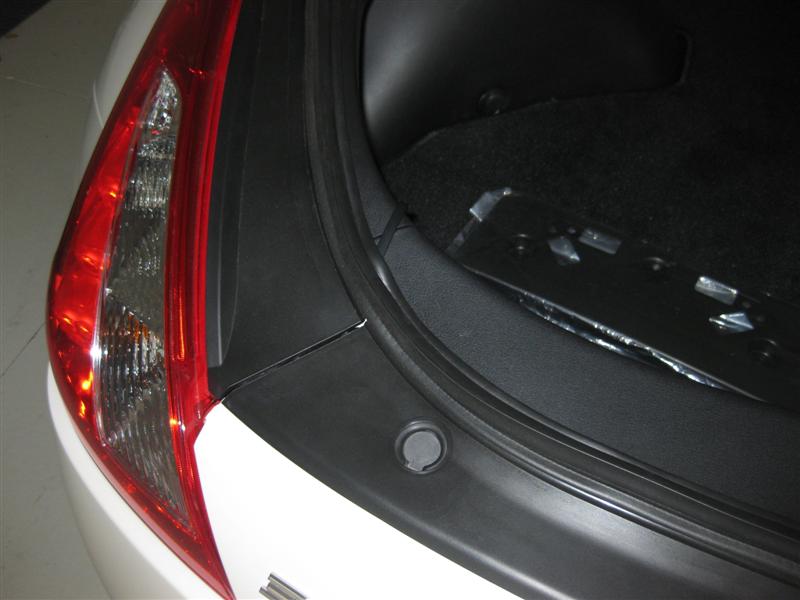

Then I ran the wires underneath the trunk weather stripping




Through the trunk and to the CPU



The jammer heads were affixed with 3M automotive tape instead of the brackets because I didn't want to drill any holes into the car.
antivirus6613 is offline   Reply With Quote
Old 04-21-2010, 06:56 PM   #2 (permalink)
Xan
A True Z Fanatic

Xan's Avatar

Join Date: Jan 2010
Location: MA Posts:99999999999999
Posts: 3,301
Drives: 370Z 40th Aniversary
Rep Power: 24
Xan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond reputeXan has a reputation beyond repute
Default

Nice! Where did you mount the CPU?
__________________
Xan is offline   Reply With Quote
Old 04-21-2010, 07:01 PM   #3 (permalink)
Base Member

Join Date: Dec 2009
Location: plymouth
Posts: 55
Drives: 07 Explorer XLT
Rep Power: 15
antivirus6613 is on a distinguished road
Default

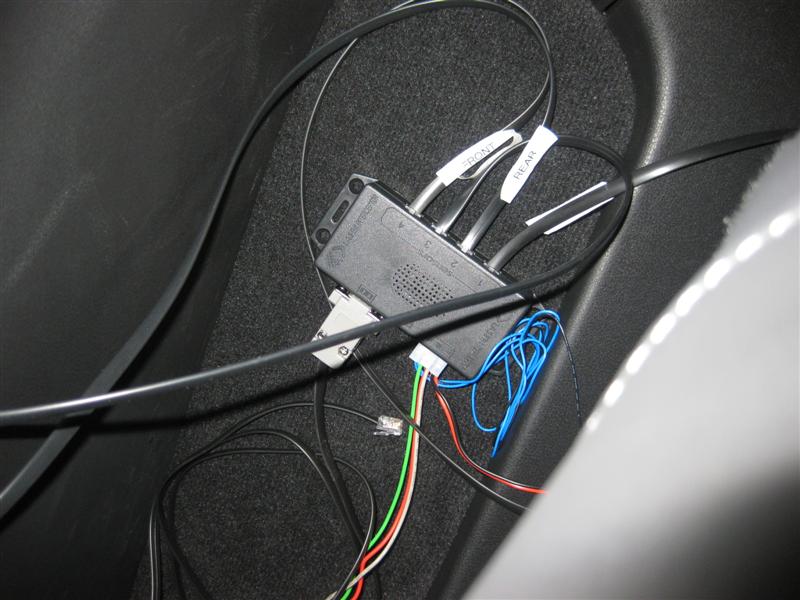

CPU is mounted behind the drivers seat in that little nook area, I have to clean up the wires and stuff a bit. For now it works. Now...to get a lidar gun and test it.
antivirus6613 is offline   Reply With Quote
Old 04-27-2010, 02:59 PM   #4 (permalink)
Enthusiast Member

Join Date: Sep 2009
Location: Hawaii
Posts: 351
Drives: STI, MDX, Titan
Rep Power: 304
abakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond reputeabakja1 has a reputation beyond repute
Default

How do you like the alert? I really cannot tell what the hell its saying most times even with music off and my cpu is under driver dash in footwell with no obstructions..

As long as it jams I guess.....Many more alerts from "unknown gun" to others, but good to know it recognizes more than 1 type of lidar...alarming tho and makes you want to brake hard when you hear it go off...but thats what the 6 pot brembos are for,....
__________________
2009 370z PG MODS: 19x9.5 & 19x10.5 Volk GTS Injen CAI, 5k HIDs, FI CF Catback, FI Hi-Flow Cat, Clazzio. Links: CLAZZIO, HID CHANGE Volk GTS Rims, Brembo
abakja1 is offline   Reply With Quote
Old 04-27-2010, 05:36 PM   #5 (permalink)
Base Member

Join Date: Dec 2009
Location: plymouth
Posts: 55
Drives: 07 Explorer XLT
Rep Power: 15
antivirus6613 is on a distinguished road
Default

I have the CPU in the drivers side pocket behind the seat so the alerts are fairly audible. Basically all I know is when it starts the alarm I hit the brakes and then kill it. Never JTG.

Post some pictures of your install, I had a hard time mounting the front.
antivirus6613 is offline   Reply With Quote
Old 06-04-2010, 07:07 PM   #6 (permalink)
Enthusiast Member

Join Date: Mar 2009
Location: Irving, TX
Posts: 268
Drives: 97 Civic Ex Coupe
Rep Power: 16
alvinmathew88 will become famous soon enough
Default

Did you get the high power version or the regular version?
alvinmathew88 is offline   Reply With Quote
Old 06-04-2010, 09:28 PM   #7 (permalink)
Enthusiast Member

Danny3.7's Avatar

Join Date: Aug 2009
Location: West Palm Beach, FL
Age: 43
Posts: 296
Drives: 09 370Z MB 6MT T/S
Rep Power: 15
Danny3.7 is on a distinguished road
Send a message via MSN to Danny3.7
Default

Nice job.. now just don't get paced by a UC.
Danny3.7 is offline   Reply With Quote
Old 06-04-2010, 11:02 PM   #8 (permalink)
Administrator

AK370Z's Avatar

Join Date: Sep 2008
Location: NJ
Posts: 9,930
Drives: 09 370Z MB Sports M6
Rep Power: 10
AK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond reputeAK370Z has a reputation beyond repute
Default

Great install. Good job .


Now here's the fine print
But please make sure you do not live on the following states. Laser Jammers and Radar Jammers are illegal in the states of Nebraska, Minnesota, Utah, California, Oklahoma, Virginia, Colorado, Illinois and Washington DC.

The370z owners/admins/moderators are NOT responsible for any trouble you get into by your local law enforcement officers following this DIY.

AK
__________________
The370Z Signature Pictures ll Want to rock our forum decals on your car? Then click here! ll How to Embed YouTube Videos In a Post
STOP! (Hammertime) ll Become a Premium Member Click HERE ll F.A.Q.
Are You a Nissan Dealer? Click Here to Become A "Supporting Dealer" and Start Listing Your 370Zs In Our Inventory Section
My Monterey Blue Z ll My Exhaust --> My Intake --> G3
Nissan's Official Response Regarding Oil Temp Issue: CLICK HERE
Need a Set of Cheap Winter wheels /Tires? Then Visit The Banner Link Below and Place Your Order. You'll Help Keep The370Z Alive.
AK370Z is offline   Reply With Quote
Old 06-04-2010, 11:21 PM   #9 (permalink)
Administrator

Trips's Avatar

Join Date: May 2009
Location: Disneyland, Ca
Posts: 8,727
Drives: 🔰
Rep Power: 10
Trips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond reputeTrips has a reputation beyond repute
Default

Quote:
Originally Posted by AK370Z View Post
Great install. Good job .


Now here's the fine print
But please make sure you do not live on the following states. Laser Jammers and Radar Jammers are illegal in the states of Nebraska, Minnesota, Utah, California, Oklahoma, Virginia, Colorado, Illinois and Washington DC.

The370z owners/admins/moderators are NOT responsible for any trouble you get into by your local law enforcement officers following this DIY.

AK
c.y.a.
__________________


http://www.the370z.com/payments.php
Trips is offline   Reply With Quote
Old 06-05-2010, 08:15 AM   #10 (permalink)
A True Z Fanatic

Sibze's Avatar

Join Date: May 2009
Location: Ontario, Canada
Posts: 16,202
Drives: In your way
Rep Power: 62
Sibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond reputeSibze has a reputation beyond repute
Default

Quote:
Originally Posted by AK370Z View Post
Great install. Good job .


Now here's the fine print
But please make sure you do not live on the following states. Laser Jammers and Radar Jammers are illegal in the states of Nebraska, Minnesota, Utah, California, Oklahoma, Virginia, Colorado, Illinois and Washington DC.

The370z owners/admins/moderators are NOT responsible for any trouble you get into by your local law enforcement officers following this DIY.

AK

lol love it!
Sibze is offline   Reply With Quote
Old 06-05-2010, 08:23 AM   #11 (permalink)
A True Z Fanatic

MightyBobo's Avatar

Join Date: Feb 2009
Location: Las Vegas, NV
Posts: 8,465
Drives: No cars; only bikes
Rep Power: 52
MightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond reputeMightyBobo has a reputation beyond repute
Send a message via AIM to MightyBobo Send a message via Skype™ to MightyBobo
Default

I figured the lesson learned would be to not do 37 over on public streets
__________________
I don't own a car anymore.
MightyBobo is offline   Reply With Quote
Old 06-06-2010, 01:27 PM   #12 (permalink)
Base Member

Join Date: Dec 2009
Location: plymouth
Posts: 55
Drives: 07 Explorer XLT
Rep Power: 15
antivirus6613 is on a distinguished road
Default

Quote:
Originally Posted by MightyBobo View Post
I figured the lesson learned would be to not do 37 over on public streets
Haha, yes I learned that one as well.

@alvinmathew88
I got the regular, for a Z the regular can easily cover the whole car
antivirus6613 is offline   Reply With Quote
Old 06-06-2010, 08:40 PM   #13 (permalink)
Enthusiast Member

Join Date: Mar 2009
Location: Irving, TX
Posts: 268
Drives: 97 Civic Ex Coupe
Rep Power: 16
alvinmathew88 will become famous soon enough
Default

Can you pm with the place you bought it from? Hopefully, you bought it from an authorized dealer, im trying to find an authorized dealer.
alvinmathew88 is offline   Reply With Quote
Old 06-06-2010, 10:49 PM   #14 (permalink)
Base Member

Join Date: Dec 2009
Location: plymouth
Posts: 55
Drives: 07 Explorer XLT
Rep Power: 15
antivirus6613 is on a distinguished road
Default

i bought it from laserinterceptorusa.com

they are the only authorized place in US i think
antivirus6613 is offline   Reply With Quote
Old 08-26-2010, 10:22 AM   #15 (permalink)
Base Member

Join Date: Aug 2010
Location: Pasadena CA
Posts: 6
Drives: 370Z Nismo
Rep Power: 14
crnacnac is on a distinguished road
Default

Quote:
Originally Posted by antivirus6613 View Post
CPU is mounted behind the drivers seat in that little nook area, I have to clean up the wires and stuff a bit. For now it works. Now...to get a lidar gun and test it.
Why wouldn't yuo spend a little more time on the install to do it cleanly the first time? Or was this a rush job for testing purposes?
