2010 Nismo Akuma Intake Installed

okczguy · 02-11-2013, 10:13 AM

I installed my first mod on my 2010 Nismo 370z - Akuma Intake. The install was pretty straight forward and after updating the K Fuel Multiplier and reflashing the ECU the car started up with no issues or DTC's =).

I did 3 stock baseline dyno pulls and 3 after the Akuma Intake.
Best stock baseline 280hp/237tq CF:SAE Smoothing 5 *
Best Akuma Intake 296hp/245tq CF:SAE Smoothing 5

*The AFR sensor wiggled out on the stock baseline pull 3 that why the AFR is showing strange in the graph.

SS_Firehawk · 02-11-2013, 10:42 AM

CG's! Impressive gain. You able to overlay them?

okczguy · 02-11-2013, 10:58 AM

Cant from the office but once I get home I will make a new chart with both runs overlaid.

7speed · 02-12-2013, 11:27 AM

Looks good. Did you dyno with bumper off or on?

SS_Firehawk · 02-12-2013, 12:32 PM

Thanks for the overlay. Looks like you are a tad rich for NA, leaves room for more bolt on's

okczguy · 02-12-2013, 12:41 PM

7Speed - All Dyno's where done with the Bumper on

SS_Firehawk - yea she alittle rich right now and I plan on installing the M370 manifold this weekend. Next will be Art pipes and AAM Competition S-LINE Midpipe then tune =)

SS_Firehawk · 02-12-2013, 12:46 PM

tried to rep you but work proxy said no. M370 should be pretty easy, 60 min tops. Car takes on a nice growl.

Jbwrecked · 02-12-2013, 12:47 PM

Sweet gains!

NissanGuy23 · 02-12-2013, 05:17 PM

These look good - possible better than the Takeda's?

Zrider79 · 02-17-2013, 06:56 PM

Would be nice to see the combination of these intakes with the m370, should be interesting to see results.

okczguy · 02-19-2013, 08:48 AM

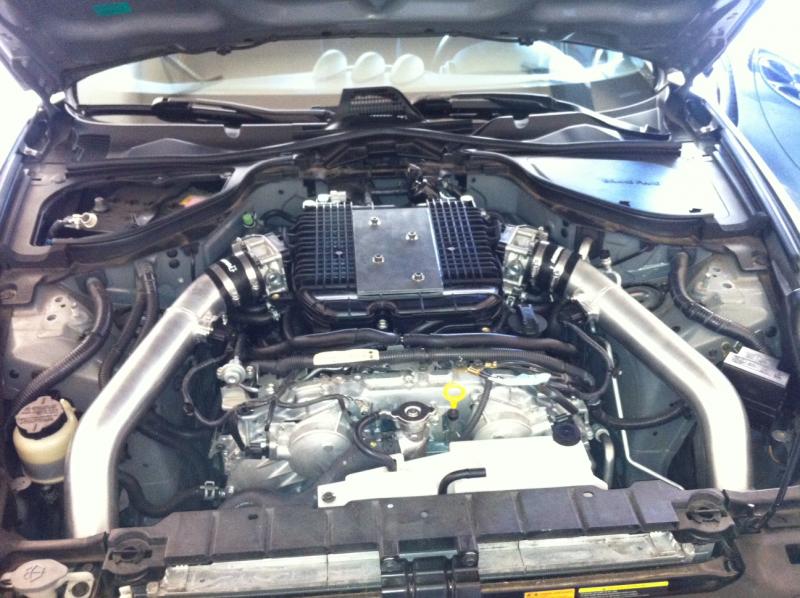

I installed the M370 last Saturday and plan on dynoing again before I install the Art Pipes.

AlexRaymond19 · 02-19-2013, 09:19 AM

Nice gains man! How was the M370 install? Im going to do mine soon, i have just been lazy. After doing a header install I dont want to even think about working on my car again for at least a few weeks

okczguy · 02-19-2013, 09:32 AM

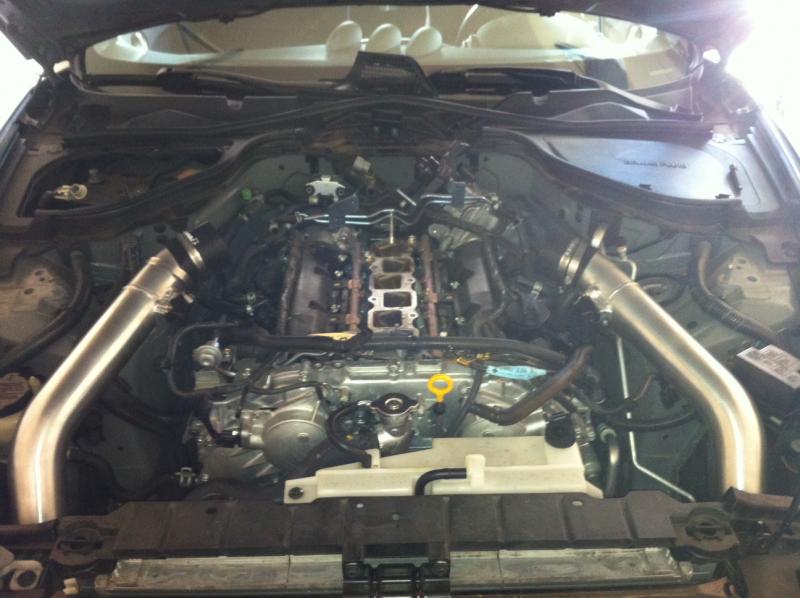

The M370 install was pretty easy the only thing I would suggest is that when you move the throttle bodies onto the M370 that you also install the metal throttle bodies’ coolant lines on the manifold.

Installing the coolant lines made it much easier to install the M370 manifold with out having to fight with the coolant lines to get them to line up properly.

Zrider79 · 02-21-2013, 02:37 AM

Cool cant wait to see what it will do. How does it sound now ?

370ZNISMO#704 · 02-21-2013, 02:44 AM

That's my next mod then a tune in for your dyno results.

02-11-2013, 10:13 AM	#1 (permalink)
okczguy Base Member Join Date: Oct 2010 Location: OKC Posts: 24 Drives: 2010 NISMO Z #589 Rep Power: 14	2010 Nismo Akuma Intake Installed I installed my first mod on my 2010 Nismo 370z - Akuma Intake. The install was pretty straight forward and after updating the K Fuel Multiplier and reflashing the ECU the car started up with no issues or DTC's =). I did 3 stock baseline dyno pulls and 3 after the Akuma Intake. Best stock baseline 280hp/237tq CF:SAE Smoothing 5 * Best Akuma Intake 296hp/245tq CF:SAE Smoothing 5 The AFR sensor wiggled out on the stock baseline pull 3 that why the AFR is showing strange in the graph. cdoxp800 and Gibby1113 like this. Last edited by okczguy; 02-11-2013 at 06:22 PM.*

02-11-2013, 10:42 AM	#2 (permalink)
SS_Firehawk Premium Member Join Date: Oct 2011 Location: Tampa Posts: 4,142 Drives: 13' Magma Red Nismo Rep Power: 7334	CG's! Impressive gain. You able to overlay them? __________________ Old Car:GTM TSC'd 550whp / 410lbft tq @ 11.88PSI New Car: Under Construction

02-12-2013, 11:27 AM	#4 (permalink)
7speed Track Member Join Date: Jan 2013 Location: Dallas Posts: 697 Drives: 09 370 sports clone Rep Power: 13	Looks good. Did you dyno with bumper off or on? __________________ 09 370z 6spd traded 1/12/15 for 15 Challenger RT 6spd

02-12-2013, 12:32 PM	#5 (permalink)
SS_Firehawk Premium Member Join Date: Oct 2011 Location: Tampa Posts: 4,142 Drives: 13' Magma Red Nismo Rep Power: 7334	Thanks for the overlay. Looks like you are a tad rich for NA, leaves room for more bolt on's __________________ Old Car:GTM TSC'd 550whp / 410lbft tq @ 11.88PSI New Car: Under Construction

02-12-2013, 12:41 PM	#6 (permalink)
okczguy Base Member Join Date: Oct 2010 Location: OKC Posts: 24 Drives: 2010 NISMO Z #589 Rep Power: 14	7Speed - All Dyno's where done with the Bumper on SS_Firehawk - yea she alittle rich right now and I plan on installing the M370 manifold this weekend. Next will be Art pipes and AAM Competition S-LINE Midpipe then tune =) AlexRaymond19 likes this.

02-11-2013, 10:58 AM	#3 (permalink)
okczguy Base Member Join Date: Oct 2010 Location: OKC Posts: 24 Drives: 2010 NISMO Z #589 Rep Power: 14	Cant from the office but once I get home I will make a new chart with both runs overlaid.

02-12-2013, 12:46 PM	#7 (permalink)
SS_Firehawk Premium Member Join Date: Oct 2011 Location: Tampa Posts: 4,142 Drives: 13' Magma Red Nismo Rep Power: 7334	tried to rep you but work proxy said no. M370 should be pretty easy, 60 min tops. Car takes on a nice growl. __________________ Old Car:GTM TSC'd 550whp / 410lbft tq @ 11.88PSI New Car: Under Construction

02-12-2013, 12:47 PM	#8 (permalink)
Jbwrecked Base Member Join Date: Nov 2012 Location: SA Posts: 240 Drives: 2009 Nissan 370z Rep Power: 12	Sweet gains! __________________ N/A Solid Red 2009 370z DD - Work Emotion CR-Kai 19x10.5 +22 19x11 +18 - Clutch Helper Spring - NEED MOAR MODZ! 1/4 Mile 13.56 @108.38

02-12-2013, 05:17 PM	#9 (permalink)
NissanGuy23 Track Member Join Date: Oct 2011 Location: West Chester, PA Age: 35 Posts: 752 Drives: 09 370Z NISMO PG 6MT Rep Power: 14	These look good - possible better than the Takeda's?

02-17-2013, 06:56 PM	#10 (permalink)
Zrider79 Track Member Join Date: Jan 2011 Location: Pensacola florida Posts: 679 Drives: 2010 Rep Power: 15	Would be nice to see the combination of these intakes with the m370, should be interesting to see results. __________________ 2010 Monterey blue roadster Z Touring. Blk interior. g3,fast intentions exhaust,more to come. RIP 05 Silverstone 350z roadster mild N/A build.

02-19-2013, 08:48 AM	#11 (permalink)
okczguy Base Member Join Date: Oct 2010 Location: OKC Posts: 24 Drives: 2010 NISMO Z #589 Rep Power: 14	I installed the M370 last Saturday and plan on dynoing again before I install the Art Pipes. Last edited by okczguy; 02-19-2013 at 08:55 AM.

02-19-2013, 09:19 AM	#12 (permalink)
AlexRaymond19 Track Member Join Date: Jun 2011 Location: Maine Posts: 771 Drives: 2010 Nissan 370z Rep Power: 14	Nice gains man! How was the M370 install? Im going to do mine soon, i have just been lazy. After doing a header install I dont want to even think about working on my car again for at least a few weeks __________________ 2010 370Z Touring MT \| Stillen \| Motordyne \| Momentum\| Z1 \| Fast Intentions \| Advant Garde \| RE11 \| Swift \| SPC \| Quaife \| Whiteline \| Evo R \| 322RWHP 259ft-lb Mustang

02-19-2013, 09:32 AM	#13 (permalink)
okczguy Base Member Join Date: Oct 2010 Location: OKC Posts: 24 Drives: 2010 NISMO Z #589 Rep Power: 14	The M370 install was pretty easy the only thing I would suggest is that when you move the throttle bodies onto the M370 that you also install the metal throttle bodies’ coolant lines on the manifold. Installing the coolant lines made it much easier to install the M370 manifold with out having to fight with the coolant lines to get them to line up properly.

02-21-2013, 02:37 AM	#14 (permalink)
Zrider79 Track Member Join Date: Jan 2011 Location: Pensacola florida Posts: 679 Drives: 2010 Rep Power: 15	Cool cant wait to see what it will do. How does it sound now ? __________________ 2010 Monterey blue roadster Z Touring. Blk interior. g3,fast intentions exhaust,more to come. RIP 05 Silverstone 350z roadster mild N/A build.

02-21-2013, 02:44 AM	#15 (permalink)
370ZNISMO#704 Enthusiast Member Join Date: Nov 2010 Location: Seattle Posts: 466 Drives: Nismo10,EgH22,TSX04 Rep Power: 14	That's my next mod then a tune in for your dyno results. __________________ 2010NISMO•305.9whp 250tq Osirus•STANCE GR+•and Camber & Toe bars•KICS R 20mm•VOSSEN CV3 20"-10.5x4•Stillen GENIII•AAM S-Line Nimso mid-pipe•CarbonSignal Sponsored car•EVOR F1mirrors•NST short shifter•Zspeed Nismo under tray.
