Z1 Brake Cooling - Install with Pictures.

Hello Z Brothers and Sisters. I'm not sure if anyone posted their install images yet for this Z1 brake Cooling Kit. I'll post it up and see how it goes.

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Brakes & Suspension


Like Tree13Likes
  • 6 Post By Corsairprime
  • 1 Post By ZontheRocks
  • 1 Post By Rusty
  • 1 Post By Corsairprime
  • 1 Post By fairladyATX
  • 2 Post By DarkJak
  • 1 Post By Spooler

Reply

LinkBack Thread Tools Display Modes
Old 05-02-2022, 09:47 AM   #1 (permalink)
Base Member

Join Date: May 2014
Location: Frisco, TX
Posts: 215
Drives: 14 370Z Nismo GM 6MT
Rep Power: 3545
Corsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond repute
Default Z1 Brake Cooling - Install with Pictures.

Hello Z Brothers and Sisters.

I'm not sure if anyone posted their install images yet for this Z1 brake Cooling Kit. I'll post it up and see how it goes. Thank you Z1 for a fine product to build from.

I have recently completed the Z1 Brake Cooling Install for track-day cooling enhancement. Prior to this point I have installed a Fuji front bumper and performed the washer fluid reservoir delete. Sorry about some of the pictures being rotated 90 degrees. Could not help it. Phone centric photo orientation.

Also to this bumper I added:
Stainless Steel #5 mesh screens(2x):
Amazon Link: https://www.amazon.com/dp/B08ZGRV4QN...roduct_details

Howe Racing RE305 Intake ducts(2x).
Summit Racing Link: https://www.summitracing.com/parts/hre-re305

Silicone adpater, 3" to 2.5"
https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1

Aluminum Tube Joiner, 2.5"
https://www.amazon.com/gp/product/B0...e?ie=UTF8&th=1

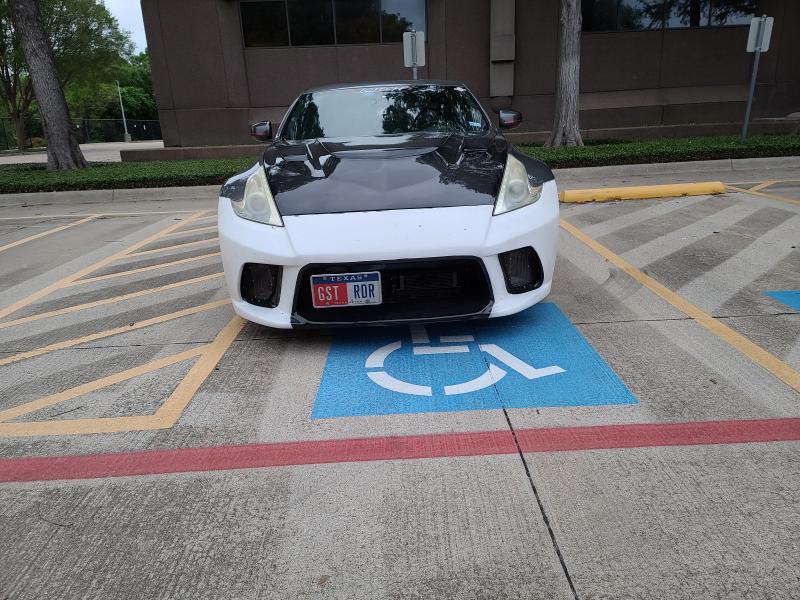

Bumper with Screen and Intake Duct:


Bumper Intake Site:

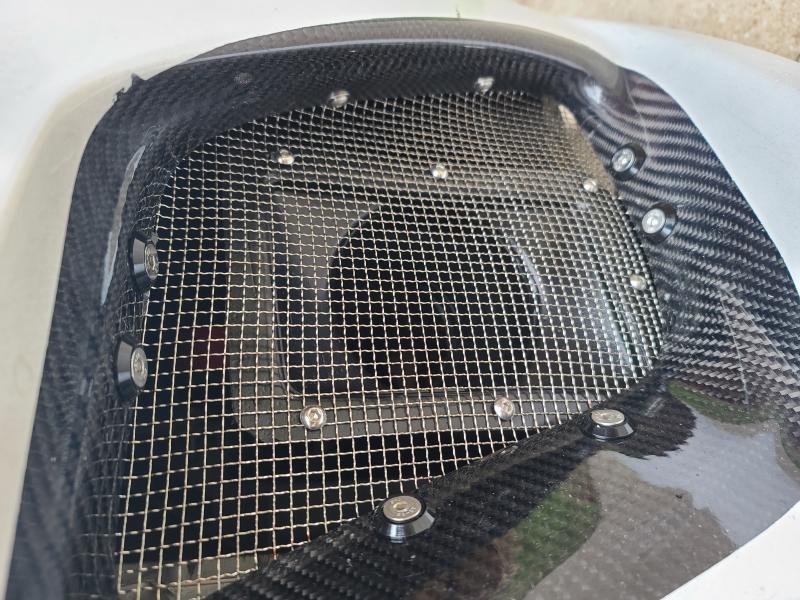

Screen with Intake Duct:


Howe Racing Re305 Intake Duct, Silicone adapter and Aluminum Joiner:


Here is everything You will need to complete the install on one side of the car.

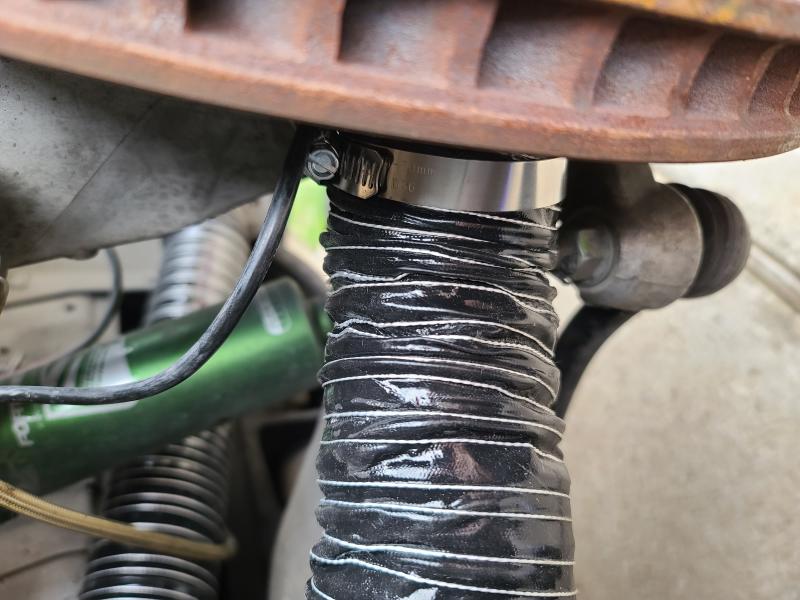

First measure and trim the cooling hose to the length that will work with your cooling intake ducts. For me this is slightly more than 3 feet. I used the angle grinder to cut the hose. Then attach it to the Z1 Brake Cooling Backing Plate on the front suspension.

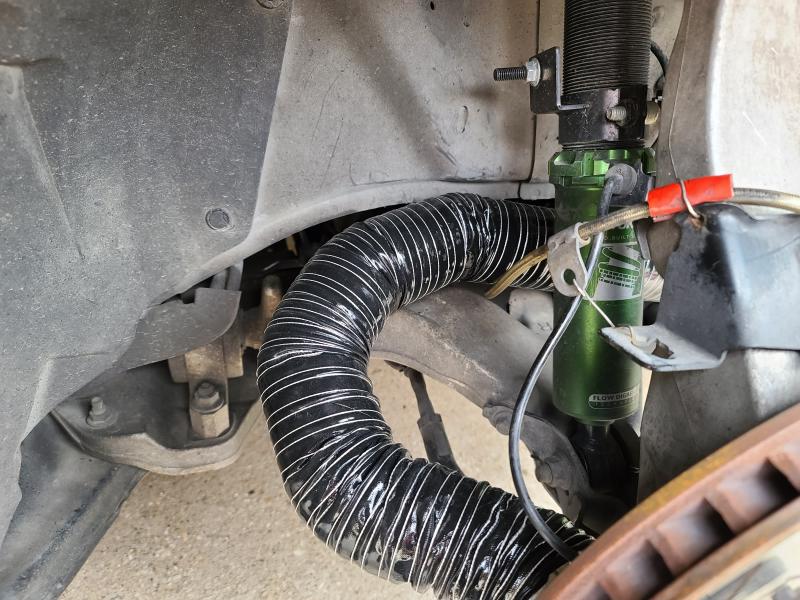

Route this hose behind the steering arm and above the lower suspension. I did not secure it here so that it is free to move around a bit. The Z1 hose is stiff enough that it won't move much.

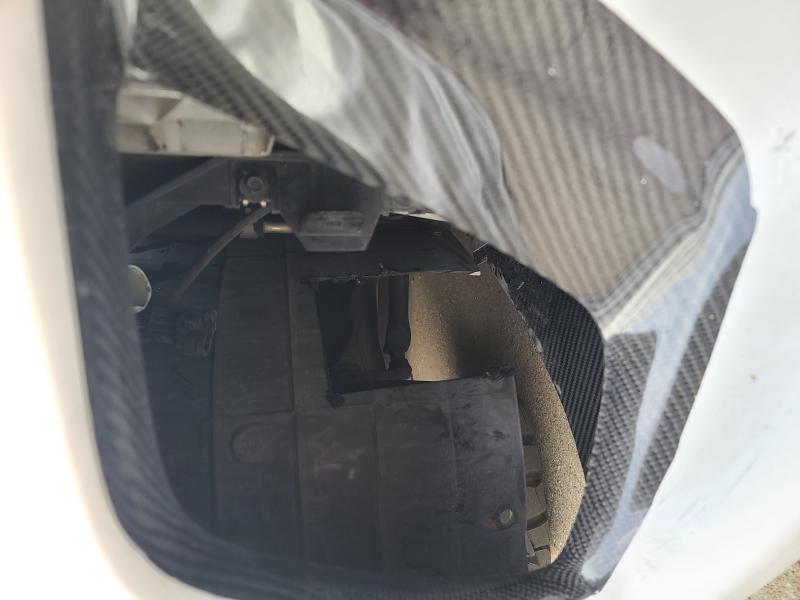

I did secure it to the frame near the front of the wheel well. It also passes thru to the intake duct at this location. You can see the opening I cut in the fender liner to allow the pass-thru.


Attach it to the Howe RE305 Intake as shown. Also seen here is the 2.5" aluminum joiner tube I bought to attach the hose to the adapter and intake duct.


All Done, reach out if you have any questions.
JARblue, DarkJak, danegrey and 3 others like this.
__________________
Corsairprime
2014 Nismo #462, GunMetal Grey, GT-R Start Button, AAM S-Line/R-Line intake and S-Line exhaust, Berk HFCs, Osiris Tuned at JoTech
Corsairprime is offline   Reply With Quote
Old 05-02-2022, 09:57 AM   #2 (permalink)
Track Member

Join Date: Mar 2017
Location: Central Florida
Posts: 946
Drives: 2016 Nissan PW 370Z
Rep Power: 33786
ZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond reputeZontheRocks has a reputation beyond repute
Default

Nice write up!
Corsairprime likes this.
__________________
'16 Pearl White Sport | Stillen Gen. 3 | Motordyne ART | Motordyne Shockwave | ZSpeed | Powertrix | EVO-R | Aeroworkz | Nismo | Z1 | EcuTek | Tuned by Seb @ SpecialtyZ
ZontheRocks is offline   Reply With Quote
Old 05-02-2022, 10:19 AM   #3 (permalink)
Ronin Samurai - Assassin

Rusty's Avatar

Join Date: Dec 2011
Location: Fayettenam,Pennsyltucky
Age: 68
Posts: 34,911
Drives: 2011 Nismo GM 6M
Rep Power: 2684436
Rusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond repute
Talking

What diameter hose you use? 2"?
Corsairprime likes this.
__________________

浪人 - 殺し屋
"The Difficult Anytime, The Impossible By Appointment Only"
http://www.the370z.com/members-370z-...o-journal.html
Rusty is offline   Reply With Quote
Old 05-02-2022, 12:26 PM   #4 (permalink)
Base Member

Join Date: May 2014
Location: Frisco, TX
Posts: 215
Drives: 14 370Z Nismo GM 6MT
Rep Power: 3545
Corsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond reputeCorsairprime has a reputation beyond repute
Default 2.5" From Z1 Motorsports

Quote:
Originally Posted by Rusty View Post
What diameter hose you use? 2"?
Rusty,

It comes with the Z1 Kit. It is the Black 2.5" cooling hose. Here's the link to the Z1 kit I used for this install.

https://www.z1motorsports.com/z1-pro...5a9ca8e290d650
Rusty likes this.
__________________
Corsairprime
2014 Nismo #462, GunMetal Grey, GT-R Start Button, AAM S-Line/R-Line intake and S-Line exhaust, Berk HFCs, Osiris Tuned at JoTech
Corsairprime is offline   Reply With Quote
Old 05-02-2022, 06:05 PM   #5 (permalink)
Ronin Samurai - Assassin

Rusty's Avatar

Join Date: Dec 2011
Location: Fayettenam,Pennsyltucky
Age: 68
Posts: 34,911
Drives: 2011 Nismo GM 6M
Rep Power: 2684436
Rusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond reputeRusty has a reputation beyond repute
Talking

Quote:
Originally Posted by Corsairprime View Post
Rusty,

It comes with the Z1 Kit. It is the Black 2.5" cooling hose. Here's the link to the Z1 kit I used for this install.

https://www.z1motorsports.com/z1-pro...5a9ca8e290d650
Stillen kit used a 2" hose which I installed then converted that to a 3" hose. That was a major PITA.
__________________

浪人 - 殺し屋
"The Difficult Anytime, The Impossible By Appointment Only"
http://www.the370z.com/members-370z-...o-journal.html
Rusty is offline   Reply With Quote
Old 06-01-2022, 09:36 AM   #6 (permalink)
Base Member

Join Date: May 2021
Location: Austin, TX
Posts: 123
Drives: 14 370z Sport M6
Rep Power: 4
fairladyATX is on a distinguished road
Default

I installed the same kit on my Z 6 months ago. The tubes are starting to fray and tear where it connects to the ducts on the backside of the disc. Just something to keep an eye out for.
DarkJak likes this.
__________________
"Casual" track car...NASA TX.
fairladyATX is offline   Reply With Quote
Old 09-06-2022, 12:07 AM   #7 (permalink)
Base Member

Join Date: Sep 2020
Location: Hinesville, GA
Posts: 72
Drives: 2007 Nissan 350Z
Rep Power: 4
MarkRT is on a distinguished road
Default

I'll show this to a friend for his new Z project. He plans to track it so a cooling kit is on his list. The new tires from 4Wheelonline will arrive soon so he may want to have it done at the same time.
MarkRT is offline   Reply With Quote
Old 09-10-2022, 09:20 AM   #8 (permalink)
A True Z Fanatic

Tractionless's Avatar

Join Date: Jan 2016
Location: Atlantic SE
Posts: 1,261
Drives: '10 K23 ST 7AT
Rep Power: 30525
Tractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond repute
Default

I was under the assumption blowing air on only one side of the rotor wasn't as efficient as directing air into the center cooling veins.
__________________
Toys Not Tots
Tractionless is offline   Reply With Quote
Old 09-10-2022, 09:34 AM   #9 (permalink)
A True Z Fanatic

DarkJak's Avatar

Join Date: Jun 2011
Location: Madison, WI
Posts: 1,392
Drives: 2009 370Z
Rep Power: 13448
DarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond reputeDarkJak has a reputation beyond repute
Default

Quote:
Originally Posted by Tractionless View Post
I was under the assumption blowing air on only one side of the rotor wasn't as efficient as directing air into the center cooling veins.
The actual useful part of the kit is a backing plate that ensures air blows within the rotor ring, so feeds more air through the vanes, vs just blowing on a face.

If anyone is running into issues with their tire hitting the hose, they can buy these pancake air ducts from Verus.

I used them to give me a bit more tire clearance:
https://www.instagram.com/p/CPRpiqQrK85/
cv129 and SeeThruHead like this.
__________________
@stupidtoycars | My track vids
09 7AT|MCS 2WNR|Topgunz Rotrex|Ecutek (Eugene)|Maxxis RC1|Titan-7 TS-5|OSG LSD|Rear Mount Derale Oil Cooler (WIP)+25 Trans Cooler|Fismo|G-LOC R12/R10|Zeta III L|NLR Wing and Splitter|CJM Pan and Fuel Hat|Radium Surge Tank|AP Racing CP9668
DarkJak is offline   Reply With Quote
Old 09-10-2022, 12:47 PM   #10 (permalink)
A True Z Fanatic

Join Date: Jun 2014
Location: Ga
Posts: 13,551
Drives: 2013 Nismo 370z
Rep Power: 2684391
Spooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond reputeSpooler has a reputation beyond repute
Default

Quote:
Originally Posted by Tractionless View Post
I was under the assumption blowing air on only one side of the rotor wasn't as efficient as directing air into the center cooling veins.
Correct, it can cause the rotors to crack if one side is cooler than the other.
Tractionless likes this.
Spooler is online now   Reply With Quote
Old 09-16-2022, 05:17 PM   #11 (permalink)
A True Z Fanatic

Tractionless's Avatar

Join Date: Jan 2016
Location: Atlantic SE
Posts: 1,261
Drives: '10 K23 ST 7AT
Rep Power: 30525
Tractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond reputeTractionless has a reputation beyond repute
Default

Quote:
Originally Posted by DarkJak View Post
The actual useful part of the kit is a backing plate that ensures air blows within the rotor ring, so feeds more air through the vanes, vs just blowing on a face.

If anyone is running into issues with their tire hitting the hose, they can buy these pancake air ducts from Verus.

I used them to give me a bit more tire clearance:
https://www.instagram.com/p/CPRpiqQrK85/
Gotcha, I didn't see any type of airflow direction into the veins in the picture above so figured I'd point it out. Thanks

Those intermediate flat blocks are a great idea. Used to fight with getting my ducts positioned so the tire wouldn't cut on another platform.
__________________
Toys Not Tots
Tractionless is offline   Reply With Quote
