Functional Rear Diffuser

I have started making a custom one myself. The S2K guys have a lot of neat stuff where I have been getting my ideas. Another week my final drawing will

Go Back   Nissan 370Z Forum > Nissan 370Z Tech Area > Exterior & Interior


View Poll Results: functional Rear Diffuser, What should i do?
Mini tunnel idea 1 3.57%
Dont bother 10 35.71%
BUG APR to make one 4 14.29%
Interested in one 13 46.43%
Voters: 28. You may not vote on this poll

Like Tree8Likes

Reply

LinkBack Thread Tools Display Modes
Old 07-01-2013, 10:09 PM   #16 (permalink)
A True Z Fanatic

SPOHN's Avatar

Join Date: Feb 2010
Location: Covington, GA
Age: 45
Posts: 14,844
Drives: Waiting on next Z
Rep Power: 221
SPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond repute
Default

I have started making a custom one myself. The S2K guys have a lot of neat stuff where I have been getting my ideas. Another week my final drawing will be complete that will work for my car and Amuse rear.
DarkJak and matcop like this.
__________________
SPOHN is offline   Reply With Quote
Old 07-02-2013, 08:18 AM   #17 (permalink)
A True Z Fanatic

Masterbeatty's Avatar

Join Date: May 2012
Location: Whales Vagina
Posts: 4,586
Drives: the speed limit...
Rep Power: 122866
Masterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond repute
Default

Nice. once it stops raining i am going to jack up the car and make a template. Look into mounting points and where/ if needed some heat shielding near the muffler and midpipe.
__________________
2011 MB 6MT
Masterbeatty journal
Masterbeatty is offline   Reply With Quote
Old 07-02-2013, 11:00 AM   #18 (permalink)
Track Member

ResIpsa's Avatar

Join Date: Apr 2009
Location: Virginia
Posts: 564
Drives: 09 RACING HEN
Rep Power: 337
ResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond repute
Default

Quote:
Originally Posted by Masterbeatty View Post
what angle did you use? i was thinking 6-8 degrees based on our CFD. Also did you make a flat bottom and front splitter?

ResIpsa do you have more pics or specs?
The angle of my diffuser follows the natural slope of the rear bumper. According to my cheap a$$ Harbor Freight angle gauge it is somewhere between 8 and 10 degree slope. My research suggests that 9 degrees is a theoretical limit for a diffuser. However, the addition of strakes should prevent my diffuser from stalling.

Yes. I run a fairly aggressive front splitter. I have not fabricated a flat bottom yet.

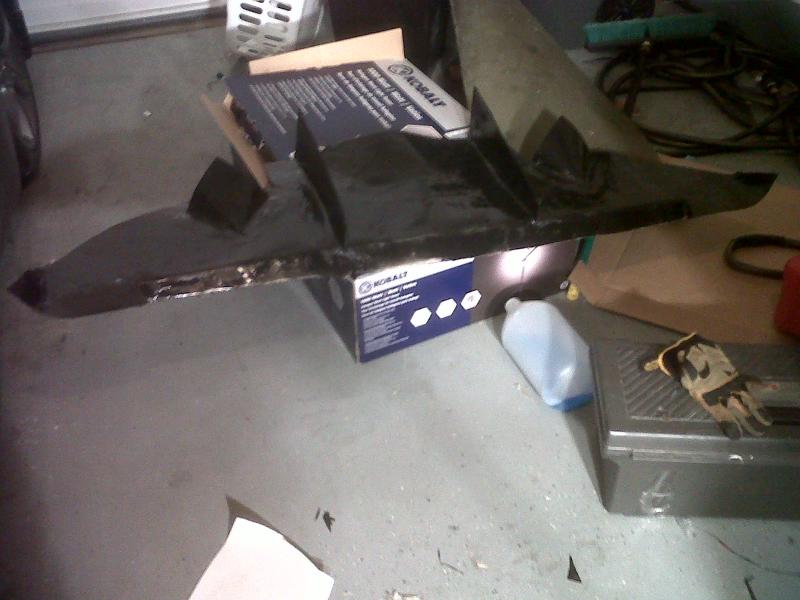

I have been working on this diffuser for nearly 2 years. Here is what the initial design looked like. My initial testing (as described below) showed that it was very effective but I was always concerned about the huge vortexes I was creating at the diffuser turn downs behind the wheels.




After some more research, an article in GrassRoots Motorsports, and an article in Race Car Engineering I modified the diffuser to its current form. I realized that a diffuser should be as wide as possible between the inside of the tires. As you can see, my original design had the turbulence from the rear tires impacting my airflow. That is when I created the second set of strakes to act as the outside walls of the diffuser.

My preliminary testing shows that my design is fairly effective. I also was reaching speeds on the front stretch of Summit Point (determined by how fast you take turn 9) that I had never reached before. However, this could be purely coincidental or related to other factors.

One trick to test the functionality of a rear diffuser is to wait for a day with heavy rain and have a friend drive your car and you follow in another vehicle. As you follow, take a look at other cars on the road and notice how rain is being dispersed behind them (better yet, have another 370Z without a diffuser drive along side of the 370Z with a diffuser). You will see most cars on the road have sprays emitting from the front and rear wheel wells (not very efficient). Also take a look at how rain flows from the rear of the cars. If you get lucky and spy an Evo or Lotus with a functional diffuser the rooster tail of spray will be noticeable.

When I tested my first design of my diffuser (with front splitter) I was quite pleased. I drove behind my 370Z and noticed that there was absolutely no water spraying from the front or rear wheel wells. Also, it was kicking up such a rooster tail that driving behind was almost blinding. My only concern was the large water vortexes emanating from the points where my diffuser turned down. My research suggested that vortexes may not be beneficial.
__________________
The Reed Law Firm; Michael Fasano VA Attorney and Counselor at Law: A Virginia Traffic, Criminal, and Family Lawyer.https://reedlawva.com/
ResIpsa is offline   Reply With Quote
Old 07-02-2013, 11:10 AM   #19 (permalink)
Track Member

ResIpsa's Avatar

Join Date: Apr 2009
Location: Virginia
Posts: 564
Drives: 09 RACING HEN
Rep Power: 337
ResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond repute
Default

Quote:
Originally Posted by Masterbeatty View Post
Nice. once it stops raining i am going to jack up the car and make a template. Look into mounting points and where/ if needed some heat shielding near the muffler and midpipe.
Research and experience has shown me that the majority of the force acting on the diffuser is at the diffuser throat.

The bolts that hold the little piece of bodywork (splash guard?) behind the tires are perfectly located to anchor the diffuser. In fact, the first thing I did was take a long piece of aluminum carpet molding, drill two holes in it, and mount it under the car. This formed the back bone.

The front of my diffuser is anchored with aprox 8 trim screws directly into the edge of the bumper.
__________________
The Reed Law Firm; Michael Fasano VA Attorney and Counselor at Law: A Virginia Traffic, Criminal, and Family Lawyer.https://reedlawva.com/
ResIpsa is offline   Reply With Quote
Old 07-02-2013, 03:58 PM   #20 (permalink)
A True Z Fanatic

SPOHN's Avatar

Join Date: Feb 2010
Location: Covington, GA
Age: 45
Posts: 14,844
Drives: Waiting on next Z
Rep Power: 221
SPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond repute
Default

First don't be talking about Harbor Freight. Love that place.
kenchan and COSMO like this.
__________________
SPOHN is offline   Reply With Quote
Old 07-02-2013, 04:20 PM   #21 (permalink)
A True Z Fanatic

Join Date: Aug 2009
Location: N/A
Posts: 76,801
Drives: N/A
Rep Power: 141520
kenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond reputekenchan has a reputation beyond repute
Default

Quote:
Originally Posted by SPOHN View Post
First don't be talking about Harbor Freight. Love that place.
i was wondering when you would chime in, SPOHN!
SPOHN and Soon2bboostin like this.
kenchan is offline   Reply With Quote
Old 07-05-2013, 07:00 AM   #22 (permalink)
Track Member

ResIpsa's Avatar

Join Date: Apr 2009
Location: Virginia
Posts: 564
Drives: 09 RACING HEN
Rep Power: 337
ResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond reputeResIpsa has a reputation beyond repute
Default

Quote:
Originally Posted by SPOHN View Post
First don't be talking about Harbor Freight. Love that place.
I apologize. You are correct.

Where else can you get a 4 x 8 moving blanket and a 6 piece screwdriver set for $3.98?

SPOHN likes this.
__________________
The Reed Law Firm; Michael Fasano VA Attorney and Counselor at Law: A Virginia Traffic, Criminal, and Family Lawyer.https://reedlawva.com/
ResIpsa is offline   Reply With Quote
Old 07-06-2013, 09:33 AM   #23 (permalink)
A True Z Fanatic

Masterbeatty's Avatar

Join Date: May 2012
Location: Whales Vagina
Posts: 4,586
Drives: the speed limit...
Rep Power: 122866
Masterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond reputeMasterbeatty has a reputation beyond repute
Default

Damn that's dollar store status right there. What ever works right. Too bad there isn't one near me.
__________________
2011 MB 6MT
Masterbeatty journal
Masterbeatty is offline   Reply With Quote
Old 07-06-2013, 10:17 AM   #24 (permalink)
A True Z Fanatic

SPOHN's Avatar

Join Date: Feb 2010
Location: Covington, GA
Age: 45
Posts: 14,844
Drives: Waiting on next Z
Rep Power: 221
SPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond reputeSPOHN has a reputation beyond repute
Default

Quote:
Originally Posted by Masterbeatty View Post
Damn that's dollar store status right there. What ever works right. Too bad there isn't one near me.
They have some cheap things I wouldn't touch like drill bits. But most of the things are damn good.
__________________
