Middle blank button seat warmers

NunButSteez · 09-29-2014, 11:38 AM

I don't really know what its called but its the middle blank button in between the heat seater button does anyone know how to change it?

View image: IMG 1819

maggotcorps · 05-26-2015, 05:26 PM

change it as in remove it and use something in its place?

JARblue · 05-28-2015, 04:06 AM

The entire cupholder and three switches pop out of the center console as one piece. Easiest way is to stick your hand/fist inside the cupholder and pull it straight up and out. Then you can remove the switches from the backside.

SwissCheese · 05-28-2015, 10:50 PM

Quote:

Originally Posted by JARblue

The entire cupholder and three switches pop out of the center console as one piece. Easiest way is to stick your hand/fist inside the cupholder and pull it straight up and out. Then you can remove the switches from the backside.

So there's no screws that hold it in place, just clips?

JARblue · 05-29-2015, 07:56 AM

Quote:

Originally Posted by SwissCheese

So there's no screws that hold it in place, just clips?

That is correct. The cupholder should just pop out with a bit of easy force. The blanks/switches can be a bit more difficult. I use a couple of plastic panel removal tools to pry up the plastic lips that hold each button on two sides. Once you have the tabs on the button clear, you can just push the button out from the bottom.

madwi · 05-29-2015, 08:05 AM

Hard to hold the camera steady, sorry. Should give you an idea how easy it is.

maggotcorps · 05-29-2015, 01:28 PM

simply out of curiosity, what would be the reasoning for removing any of those pieces?

JARblue · 05-29-2015, 01:34 PM

Quote:

Originally Posted by maggotcorps

simply out of curiosity, what would be the reasoning for removing any of those pieces?

Lots of reasons. I swapped out one of the blanks for a switch for my garage door opener for a while. Some people have switches for NOS, fog light, fuse cut, etc.

maggotcorps · 05-29-2015, 01:40 PM

Quote:

Originally Posted by JARblue

Lots of reasons. I swapped out one of the blanks for a switch for my garage door opener for a while. Some people have switches for NOS, fog light, fuse cut, etc.

very nice, guess I never really noticed the blank spot in between the ***-warmers till now.

JARblue · 05-29-2015, 01:47 PM

Quote:

Originally Posted by maggotcorps

very nice, guess I never really noticed the blank spot in between the ***-warmers till now.

Yeah, if you have touring, you already have two out of the three used. There is an OEM fog light switch that goes in the middle blank. No one here buys the OEM switch though because it's stupid expensive compared to $1 switches you can find locally.

madwi · 05-30-2015, 01:20 AM

Quote:

Originally Posted by maggotcorps

very nice, guess I never really noticed the blank spot in between the ***-warmers till now.

Those switches in my short video clip were $7 or $8 ea. I just had 3 blanks from the factory with the sport.

Zipper 104 · 05-30-2015, 03:36 AM

Quote:

Originally Posted by JARblue

Yeah, if you have touring, you already have two out of the three used. There is an OEM fog light switch that goes in the middle blank. No one here buys the OEM switch though because it's stupid expensive compared to $1 switches you can find locally.

I always thought the middle one was earmarked for the switch when you got the optional 'passenger ejection seat'

104

madwi · 05-30-2015, 06:12 AM

Quote:

Originally Posted by Zipper 104

I always thought the middle one was earmarked for the switch when you got the optional 'passenger ejection seat'

104

Sadly, these dont fit in that location

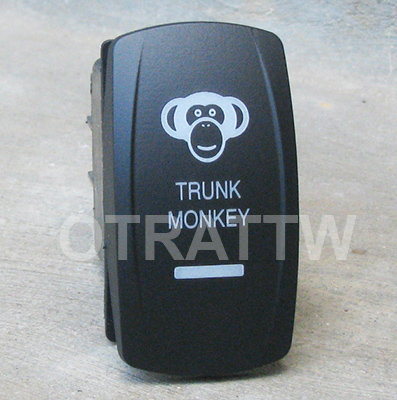

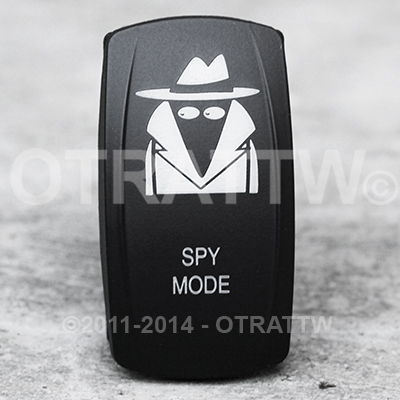

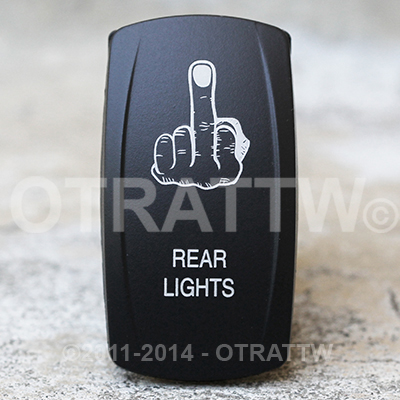

They have a bunch of novelty switches available, a couple examples.

( Click to show/hide )

SwissCheese · 05-30-2015, 10:28 PM

Quote:

Originally Posted by madwi

Those switches in my short video clip were $7 or $8 ea. I just had 3 blanks from the factory with the sport.

Do those switches just fit right in there, or did you have to fab them?

madwi · 05-31-2015, 01:43 AM

Quote:

Originally Posted by SwissCheese

Do those switches just fit right in there, or did you have to fab them?

The end switches have to have a bigger corner radius sanded on them, takes about 20 seconds each switch to do. I used 220 grit paper. Middle switch will not need any modifications at all.

[IMG]

[/IMG]

09-29-2014, 11:38 AM	#1 (permalink)
NunButSteez Base Member Join Date: Aug 2014 Location: Texas Age: 30 Posts: 12 Drives: 2010 370z Touring Rep Power: 10	Middle blank button seat warmers I don't really know what its called but its the middle blank button in between the heat seater button does anyone know how to change it? View image: IMG 1819

05-26-2015, 05:26 PM	#2 (permalink)
maggotcorps Base Member Join Date: Nov 2014 Location: Chula Vista, CA Posts: 85 Drives: 11 370z MB AT Rep Power: 10	change it as in remove it and use something in its place? __________________ 2011 MB 370z Touring w/Sport F.I. TDX Cat Back 18" res. Exhaust // F.I. Long Tube Headers // K&N Drop-in // Z1 Silicone Post-MAF Intake Hose

05-28-2015, 04:06 AM	#3 (permalink)
JARblue A True Z Fanatic Join Date: Mar 2011 Location: Austin, TX Age: 43 Posts: 36,449 Drives: 11 Z34, 98 E36 M3 Rep Power: 2684440	The entire cupholder and three switches pop out of the center console as one piece. Easiest way is to stick your hand/fist inside the cupholder and pull it straight up and out. Then you can remove the switches from the backside. gomer_110 and madwi like this. __________________ 2011 370Z 6MT Sport Gun Metallic \| ARC \| CJM \| Ecutek \| FI \| Fujimura \| R2C \| SPL \| Stillen \| TWM \| Z1 \| ZSpeed \|

05-29-2015, 08:05 AM	#6 (permalink)
madwi A True Z Fanatic Join Date: Sep 2012 Location: West Michigan Posts: 31,400 Drives: Granma red Z Rep Power: 2684428	Hard to hold the camera steady, sorry. Should give you an idea how easy it is. JARblue likes this. Last edited by madwi; 05-29-2015 at 08:10 AM.

05-29-2015, 01:28 PM	#7 (permalink)
maggotcorps Base Member Join Date: Nov 2014 Location: Chula Vista, CA Posts: 85 Drives: 11 370z MB AT Rep Power: 10	simply out of curiosity, what would be the reasoning for removing any of those pieces? __________________ 2011 MB 370z Touring w/Sport F.I. TDX Cat Back 18" res. Exhaust // F.I. Long Tube Headers // K&N Drop-in // Z1 Silicone Post-MAF Intake Hose
