I decided to have my engine built over the winter. My car went in running. Took everything out, assembled the engine, car won't start.

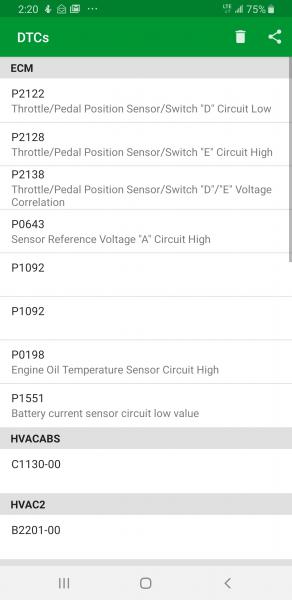

Car has codes which make zero sense, as the app harness was never touched (see screen shot below). Now here is the weirdest part, the ECU is showing 20v! Below is the troubleshooting we have done:

-Continuity tests on all sensors.
-Checked all grounds.
-Removed all aftermarket accessories.
-Took my ECU to Edconoline (thanks Ed). Plugged in his car, normal voltage and the car started.
-Took Edconolines IPDM, hooked it up. No change.

To state the obvious, there is no 2nd battery hooked in series (or second battery period lol). There is no step up. This is just not possible!

We are going to check voltage to each pin just to confirm that somehow the car is not sending 24v (we assume the ecu pegs out at 20v).

If anyone has any insight into this, it would be greatly appreciated!

__________________
*Full Mod List*
JMac88 is offline   Reply With Quote
Old 10-17-2019, 07:40 PM   #2 (permalink)
A True Z Fanatic

SouthArk370Z's Avatar

Join Date: Nov 2010
Location: South Arkansas
Posts: 7,651
Drives: 2014 Challenger
Rep Power: 59101
SouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond repute
Default

Quote:
Originally Posted by JMac88 View Post
... -Took my ECU to Edconoline (thanks Ed). Plugged in his car, normal voltage and the car started. ...
That tells me that the problem is in your car. Bad connector, pinched wire, floating ground, etc.

The 20V is weird - I'm guessing you have a power problem to the ECM or a wiring problem and the ECM is giving more or less random readings.

FSM (link in sig) may have some troubleshooting tips.
BettyZ likes this.
__________________
Steering Lock Links - Search The370Z Bookmarklet - FSM @ NICOclub
Mankind has progressed past the need for war but we haven't evolved that far. - NachoMahma
SouthArk370Z is offline   Reply With Quote
Old 10-17-2019, 10:30 PM   #3 (permalink)
Premium Member

sirnixalot's Avatar

Join Date: May 2017
Location: Cayman Islands
Posts: 404
Drives: 2010 370Z
Rep Power: 10471
sirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond reputesirnixalot has a reputation beyond repute
Default

I have no pointers, Just a car bro bra. I too have issues and want you to know you aren’t alone.

You WILL figure this out and it WILL be something ******* stupid.
Speaking from experience

Ps swap the alternator maybe the voltage regulator is shot
BettyZ likes this.
__________________
2010 Sport - GTR turbo conversion from BTWTuning - AAM 11:1 Long block - JWT C2 cams - Fortune Auto 500 - Hotchkis - Z1 - Voodoo13 - Whiteline - Zspeed - B&M - Nismo - OS Giken - NixFab everything else

Last edited by sirnixalot; 10-17-2019 at 10:31 PM. Reason: Thought of something
sirnixalot is offline   Reply With Quote
Old 10-17-2019, 10:35 PM   #4 (permalink)
Enthusiast Member

JMac88's Avatar

Join Date: Jun 2010
Location: Edmonton AB
Posts: 412
Drives: 2010 PW 370z
Rep Power: 10
JMac88 will become famous soon enoughJMac88 will become famous soon enough
Default

Quote:
Originally Posted by SouthArk370Z View Post
That tells me that the problem is in your car. Bad connector, pinched wire, floating ground, etc.

The 20V is weird - I'm guessing you have a power problem to the ECM or a wiring problem and the ECM is giving more or less random readings.

FSM (link in sig) may have some troubleshooting tips.
Thanks for your help. I Think I traced the 20v issue to M107 connector on the ECU. Pulled back the cover and found some exposed wired. Not sure how that would have happened.

I got excited because the aps sensor which I am assuming is for the app is on the same harness. There was no change there. The throttle voltage is sitting at .05v and there is no response. Here is the interesting thing, if I push sideways on the connector I get .695v and the thottle voltage responds. I am thinking this might just be a fluke though, maybe forcing two pins to touch. I also tried a different pedal, no change.

To make things more interesting on the throttle body connector bank 1, I have two lines with ~5v. On bank 2 I only have one at ~5v. Neither of the throttle servos are actuating when I turn the ignition on.

I have been dissecting the FSM, which is where I am heading now. If anyone can save me some reading, that would be awesome lol.
__________________
*Full Mod List*
JMac88 is offline   Reply With Quote
Old 10-17-2019, 11:20 PM   #5 (permalink)
A True Z Fanatic

SouthArk370Z's Avatar

Join Date: Nov 2010
Location: South Arkansas
Posts: 7,651
Drives: 2014 Challenger
Rep Power: 59101
SouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond reputeSouthArk370Z has a reputation beyond repute
Default

Quote:
Originally Posted by JMac88 View Post
... I have been dissecting the FSM, which is where I am heading now. If anyone can save me some reading, that would be awesome lol.
Many PDF readers have a search-all-PDFs-in-a-folder function. Put all the FSM PDFs in a folder and have your reader search that folder to search the entire FSM. If you get a lot of extra junk, use the "-" operator to exclude terms. Good luck.
BettyZ likes this.
__________________
Steering Lock Links - Search The370Z Bookmarklet - FSM @ NICOclub
Mankind has progressed past the need for war but we haven't evolved that far. - NachoMahma
SouthArk370Z is offline   Reply With Quote
Old 10-18-2019, 07:46 AM   #6 (permalink)
Base Member

Join Date: Jun 2018
Location: Australia
Posts: 12
Drives: 370z
Rep Power: 3357
SteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond reputeSteveSAS has a reputation beyond repute
Default

Start by fixing the M107 connector. Make sure the pins in the connector haven't been pushed back or bent and can mate with ECU socket OK. When was ECU removed? before or after problem showed up?

Sometimes there are plugs between engine and harness which are the same size and near each other and you have them the wrong way. This will cause short circuits and fault codes like the ones you are seeing.
SouthArk370Z likes this.
