Brainiac tablet upgrade for navigation models
I am writing up my modification from stock head unit to a tablet display for my 2009 370Z with navigation. For those looking for a tablet-style upgrade, this could be a good choice regardless of what trim level you have for your Z. But for those with the navigation trim, upgrading our stock head unit is very tricky. The A/C controls are interfaced through the stock unit, which means that you will lose control of your A/C system unless you find an aftermarket unit that controls 370Z A/C (which is obviously pretty rare) or you build one yourself. Fortunately, forum member Radensb has built just such a unit, which I used for this install. This was absolutely critical as this project would not have been possible without Radensb's work. I was looking for a full tablet upgrade that looks clean and completely stock. Again, this is tricky since most units are going to fit perfectly around the existing trim or may not be a complete match in terms of color, gloss level or look & feel. After doing some research I decided to go with a trim and electronics package from a small Canadian company called Workshop 12 (there are a number of threads about their products here already). They manufacture the trim to mount a tablet to a 370Z and design the kit specifically for the car. The look is very clean. I have my summary of how this works first, the step by step for the upgrade next and finally my thoughts on the finished product at the end. How it works: Their Brainiac kit contains the plastics necessary to replace the existing infotainment pieces as well as the mount for a tablet to clip in. I have documented the installation but it is very straightforward. Their MK electronics package provides an amp, a connection to the car speakers as well as power and USB connectors for the tablet and any other devices you want to power. It also provides a USB dongle that can be used to power a phone. Obviously, you will need the tablet that the kit is built for. Currently (as of this write-up), they are supporting the Samsung Galaxy Tab A 10.1” tablet. Since the plastics are built to form around the tablet, you must use the Tab A (or, I suppose, another tablet with the exact dimensions as a Tab A if one exists). The Tab A works fine for me and is more than sufficient, given that stock car infotainment systems are often the flower of 1980’s technology. I don’t see any reason why Workshop couldn’t come out with frames for updated models in the future as well as the adjustment would be very minor. If you have the base model of the car (without the built-in navigation), that’s really all you need to do: remove the relevant pieces of the dashboard, install the electronics kit in the empty space, screw the Brainiac kit in and slip the tablet into place. For those of us with a navigation model, it is a bit more complicated. Nothing on the market is going to allow you to control the A/C system if you remove the stock navi head unit. There is a person on the board who was able (and brave enough) to do some significant fuse modification to his car to enable this functionality but it is definitely not a straight-forward process. Fortunately, another enterprising individual (forum member radensb) built a PCB that can connect the A/C back to the car and restore A/C function. The caveat is that you will need to get the dials for the non-navi model, which you can find on Ebay. Since the physical controls will be removed when you take out the stock unit you need to replace them with the base model version of the A/C controls. Finally, you will need to build a couple of cables that will connect the A/C to the PCB and the board to the car harness. Parts needed: Workshop 12’s 370Z Brainiac kit a description of the kit and functionality is here: https://www.youtube.com/watch?v=haTHSSoV0aY&t=3s Workshop 12’s MK electronics kit (or whatever equivalent you choose to use) a description of the electronics package is here: https://www.youtube.com/watch?v=FU4lvgrOH60&t=141s Samsung Galaxy Tab A 10.1” tablet (you must have this specific model) 370Z base model A/C controls (can be purchased off of Ebay) PCB to control A/C system Car harness for PCB (must be made) A/C harness for PCB (must be made) Before you begin, disconnect your car battery. Although you shouldn’t have to worry about bare wires if you are using the Brainiac MK electronics (it is plug and play) the car is going to likely throw up errors over the loss of power to the airbag system if you don’t. First, you need to remove the center dashboard pieces. Workshop 12 has a thorough video on how to do this and it is actually quite straightforward. The clips used for the pieces are much better quality that the plastic snaps that are often used for trim pieces. They are pretty sturdy and I felt like I could repeatedly remove and reassemble them without fear of breakage. Their installation for the Brainiac trim is here: https://www.youtube.com/watch?v=FU4lvgrOH60&t=141s. I won’t detail the dashboard trim and head unit removal as I think their video does an accurate job of describing it. Once everything is out, you will have quite a bit of room in the dash for new parts. Simply screw in the Brainiac mount using the existing screw holes and feed the power and headphone cables from the MK electronics to the place where they connect to the tablet. They recommend zip tying the cables in place and have holes for this purpose in their mount. You will need to put in the PCB to interface with the A/C unit, the MK electronics and hook up the cabling. I zip tied the MK electronics to the upper frame crossmember, which worked well. I zip tied the PCB to the A/C box (you’ll see it in the video) and put it into the bottom of the space. Then all you need to do is connect the appropriate cables. At this point, I plugged the airbag cable and start power cable back into the waterfall dash trim piece but left everything hanging without screwing it back in. I then reconnected the car battery so I could do some testing on the system without having to reinstall all the trim first. The MK electronics has a master gain dial and it took a bit of trial and error to set it low enough not to get line noise through the tablet’s headphone jack but high enough to get good volume from the system. Plugging everything in but keeping the dash open allowed me to fiddle with the dials and try the volume until I found a good balance. Once everything works as expected just put the trim back together and snap on the magnetic cover for the tablet. The cover allows you direct access to the tablet to pull it out as needed. It is a slick design as it looks stock, stays firmly in place but is easy to remove when needed. There are a number of other items that can be added to the system as well. There is a product that allows you to connect the resistive steering wheel controls up to the tablet so that you can used them in the same way as they functioned with the stock head unit. You could also run a mic out from the tablet to the cabin for phone usage. Since Workshop 12 provides multiple USB outlets in their electronics package you could certainly have options. Final thoughts: After using the system for a bit I am very happy with the product. Before I can critique the finished product I think it is important to keep in mind what the product is designed to do. It gives you full access to a tablet in your car that looks stock and connects to your car speakers. If you want to run Android Auto on the tablet you can do that but you need to connect a mic. Samsung allows you to log into your Samsung account and use the tablet to route calls, which is convenient but that functionality does not work with all carriers. Obviously, the functionality is fundamentally different than a unit dedicated to being a car infotainment center. You have the freedom of a tablet but there are complexities that come with having that freedom. For example, Workshop 12 has worked out pretty good power setting instructions for the tablet so that it turns on when you start the car and goes to sleep when you turn off the car. That works quite well. But in order to not have the screen annoyingly bright at night, it is recommended to set it to auto-dim 15 seconds after a screen touch. This saves battery usage (convenient as I find that the tablet is often balancing charge with usage pretty closely) and allows for a darker screen at night. But that also means that the screen is dimmed most of the time. You could certainly set it for full brightness all the time and get a bright screen when driving but you would probably want to change those settings for nighttime driving. It’s a big screen, which looks amazing. But with any large touchscreen you are going to have issues with fingerprints. Again, I don’t see that as a flaw in the system but simply a natural effect of the product. I keep a microfiber cloth in my car and do a quick screen wipe regularly as fingerprints can be visible in reflected light. The tablet wakes as soon as the car starts, which I find nice. In many stock units I find that it takes a while for the system to boot up when the car starts, which I find annoying. But that’s because car manufacturers put absurdly antiquated processors in their cars. I sync my tablet to my Google account so I have instant access to email, calendar, photos and everything else that is included in a Google account. I have access to Google maps without an Android Auto interface, which is great. My passenger can access everything on the tablet at any time (I could too but I try to stay responsible about distracted driving). I am happy with the application that Workshop 12 provides for the tablet. It gives me quick access buttons that are configurable to whatever app I want, I can store or stream music with whatever apps I choose and control music directly from the main screen application. I got the LTE tablet, which I recommend. I have unlimited data for the tablet and so have updated traffic info, search capabilities, unlimited streaming music and so forth. If I had to do it again, I would definitely do this upgrade. I won’t really comment on the cost for the setup as I think everyone has an individual opinion about their budget and perceived value. At the time I write this it is about $500 for the Workshop 12 trim and electronics (less if you only want the trim). I bought the tablet on Amazon for about $200 and you would need to get the PCB from the EZ_Navi-Delete site as well as make a couple of cables that the PCB needs to interface with the car. Could I get a less expensive head unit? Sure. Would it look as clean and offer the same options as a full tablet? No. But it just depends on what you want and what you are willing to spend and that is best left out of the discussion and up to the individual.
__________________
Proud owner of a new 167.2 inch, 3278 lb baby Z! Stillen CBE & G3 Intake // Stillen Lightweight pulley // Stillen Oil Cooler // Goodridge Braided Stainless Steel Brake Lines // ACT HDSS Clutch& Alum Flywheel |
04-25-2021, 07:35 PM | #2 (permalink) |
Base Member
Join Date: Mar 2019
Location: Virginia
Posts: 184
Drives: 13 370Z Touring Sprt
Rep Power: 197 |
Great write-up! I’ve been wanting to do this, but I use Apple CarPlay and am afraid trying to run that in the Android system and keep the functionality of calls and text may not work.
Thats kept me with my Pioneer double din with CarPlay. |
04-26-2021, 01:31 AM | #3 (permalink) |
Base Member
Join Date: Apr 2009
Location: Orange County, CA
Posts: 202
Drives: 09 Blue 6m 370zT/S/N
Rep Power: 16 |
Unfortunately, I can't speak to Android/Carplay compatibility. According to Workshop 12, it is possible through the use of a USB dongle. You can find a video describing how it works here:
https://www.youtube.com/watch?v=eXIVPbtyEgc
__________________
Proud owner of a new 167.2 inch, 3278 lb baby Z! Stillen CBE & G3 Intake // Stillen Lightweight pulley // Stillen Oil Cooler // Goodridge Braided Stainless Steel Brake Lines // ACT HDSS Clutch& Alum Flywheel |
04-26-2021, 11:01 AM | #4 (permalink) |
A True Z Fanatic
Join Date: Mar 2015
Location: Some Place Cold
Posts: 16,060
Drives: In Circles
Rep Power: 2684396 |
Freaking awesome! Was waiting for Radensb to start up his Tindie page to order a board. Did you go with the bluetooth model? i just ordered the board and non-nav AC controls.
Also, would you be able to go into greater detail on the custom harnesses needed for the car and A/C to PCB? What did they handle specifically? And do you have documentation or links specifically on how to create them if absolutely required?
__________________
I AM FLOOF! SOMEBODY FLOOF MY HORN!! ALL HAIL THE FLOOF!!I JUST FLOOFED ON THE FLOOR |
04-30-2021, 02:06 AM | #5 (permalink) |
Base Member
Join Date: Apr 2009
Location: Orange County, CA
Posts: 202
Drives: 09 Blue 6m 370zT/S/N
Rep Power: 16 |

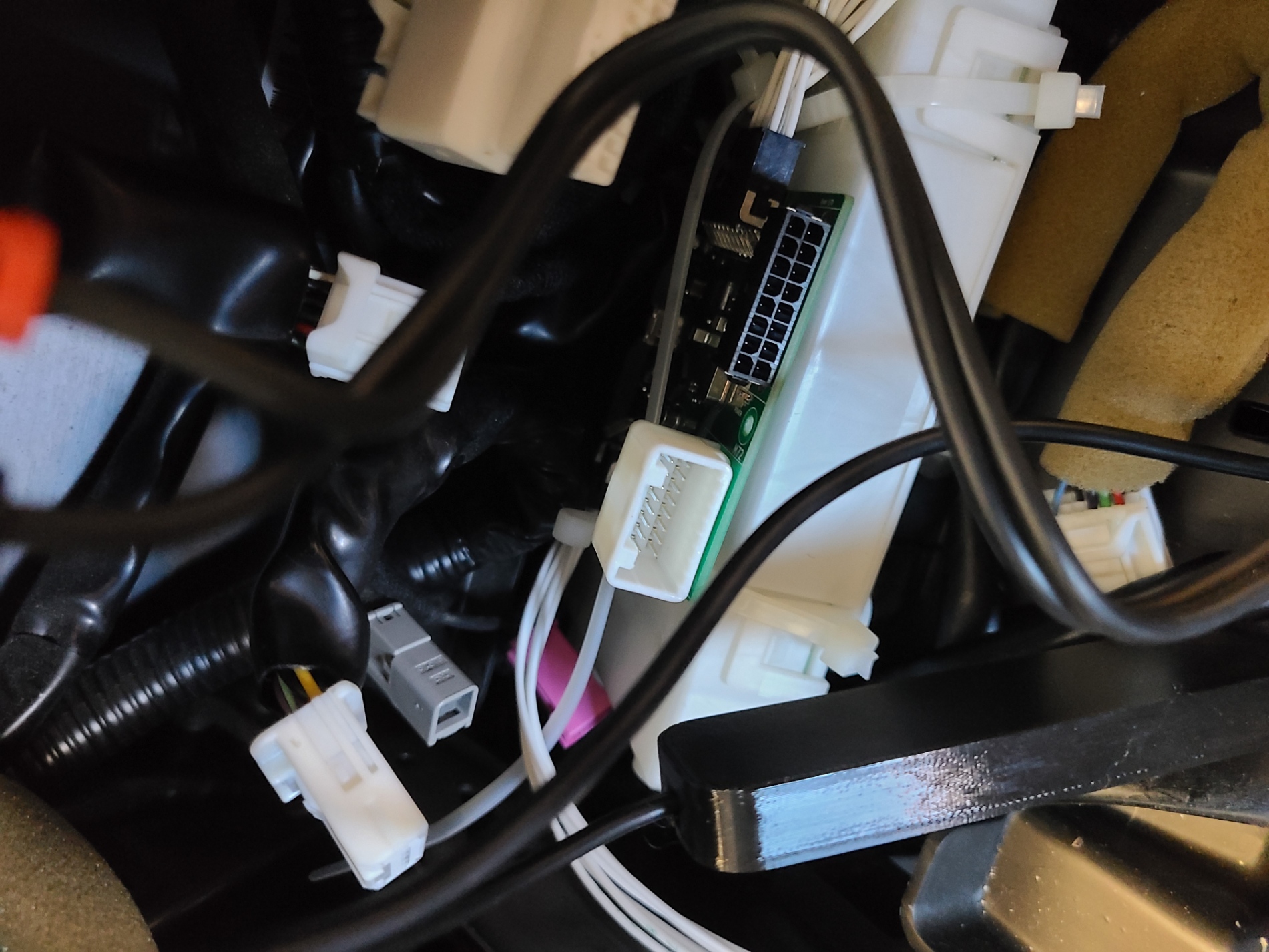

I did not go with the bluetooth option as I didn't think I would need that functionality. You will need to build the harnesses but the detailed pinouts are on Radensb Github site at https://github.com/radensb/eZ_Navi-Delete/wiki. The A/C harness is a pretty simple cable that connects the base model A/C physical controls to the car so that the the unit detects ignition, can power the A/C control lights and send necessary signals to the car's A/C system.
The main car harness is a larger and more complex cable that communicates a variety of signals through the board; you can see the list of them on the Github site. I did not have the expertise to build the cables myself but fortunately had a friend who does and could help me with the project. The cables were the only step that I needed outside help with (besides purchasing the board, of course).
__________________
Proud owner of a new 167.2 inch, 3278 lb baby Z! Stillen CBE & G3 Intake // Stillen Lightweight pulley // Stillen Oil Cooler // Goodridge Braided Stainless Steel Brake Lines // ACT HDSS Clutch& Alum Flywheel |
04-30-2021, 04:38 PM | #6 (permalink) |
Base Member
Join Date: Jan 2014
Location: California
Posts: 148
Drives: 09 Nissan 370Z GM M6
Rep Power: 6721 |
Great Work!
Its super satisfying to see this up and running in another custom install! Everything looks very clean and seems to fit well. NO MORE 12 YEAR OLD STEREO SYSTEM!! Well done!
|
05-25-2021, 01:06 PM | #7 (permalink) | |
A True Z Fanatic
Join Date: Aug 2013
Location: Shawnee KS
Posts: 5,698
Drives: 15 Magma Red 6MT
Rep Power: 2684377 |
Quote:
Addition: radensb did a wonderful job identifying connector & terminal part numbers on his wiki. Raden, if you have time, I'd create a BOM (bill of materials) that shows total quantities for terminals & connectors. Since I work with those part numbers (or ones real similar) I was able to notice that one terminal is used on a couple of connectors and didn't order duplicates. Great job.
__________________
2015 Magma Red 6MT Sport Tech/2012 Fairlady MB 6MT Base (RIP 08032018)https://www.nicoclub.com/FSM/370Z/Coupe/ Last edited by Ghostvette; 05-25-2021 at 01:09 PM. |
|
05-26-2021, 02:10 PM | #8 (permalink) |
Car Audio Installer
|
Installed one of these a few months ago. The only downside is not having integration with a reverse camera to auto video when putting the Z in reverse.
__________________
Need help with car audio or electronics? Let me know!! Need Help Let Me Know Direct email address reimermatt@gmail.com Owner of: Dynamic Mobile Audio Follow me below https://www.facebook.com/Dynamicmobileaudio/ |
05-27-2021, 01:29 AM | #9 (permalink) |
Base Member
Join Date: Apr 2009
Location: Orange County, CA
Posts: 202
Drives: 09 Blue 6m 370zT/S/N
Rep Power: 16 |
I ended up getting a rear mirror camera combo that works well. I routed the backup camera wiring through the car and it was quite straightforward. It looks good and tucks the front mount camera out of the way as we don't have a lot of front windshield real estate to work with in the first place.
VanTop Mirror Dashcam through Amazon
__________________
Proud owner of a new 167.2 inch, 3278 lb baby Z! Stillen CBE & G3 Intake // Stillen Lightweight pulley // Stillen Oil Cooler // Goodridge Braided Stainless Steel Brake Lines // ACT HDSS Clutch& Alum Flywheel |
05-27-2021, 10:04 AM | #10 (permalink) |
Track Member
Join Date: Jun 2020
Location: Toronto
Posts: 716
Drives: Red '18 Sport Manual
Rep Power: 23498 |
https://www.amazon.ca/gp/product/B08...?ie=UTF8&psc=1
I just had one of these delivered, not installed yet but from reviews it looks like the best mirror cam, non of that rubber mounting over the oem mirror crap. |
05-27-2021, 11:52 AM | #11 (permalink) | |
Base Member
Join Date: Apr 2009
Location: Orange County, CA
Posts: 202
Drives: 09 Blue 6m 370zT/S/N
Rep Power: 16 |
Nice. It wasn't clear to me from the description - does this unit have HomeLink or are you going to use a standard garage door opener?
Quote:
__________________
Proud owner of a new 167.2 inch, 3278 lb baby Z! Stillen CBE & G3 Intake // Stillen Lightweight pulley // Stillen Oil Cooler // Goodridge Braided Stainless Steel Brake Lines // ACT HDSS Clutch& Alum Flywheel |
|
06-06-2021, 11:20 PM | #13 (permalink) |
Base Member
Join Date: Apr 2021
Location: winnipeg
Posts: 2
Drives: 2020 yellow 370z man
Rep Power: 4 |
Brainiac upgrade
Hi every one i thought i would post mine in here i thought about this way
and said to my self that this does not go far enough as a infotainment system so i did my own using the brainiac plastics here is mine Computer in dash |
06-23-2021, 07:15 PM | #14 (permalink) |
A True Z Fanatic
Join Date: Mar 2015
Location: Some Place Cold
Posts: 16,060
Drives: In Circles
Rep Power: 2684396 |
Hopefully this thread is still active.
Did you have any issues getting AC, tablet power, and audio to work? I programed the board and can see the green led light when I turn the car on, but cant get anything to work. The only thing I haven't connected is the user io harness. Is thst needed? I'm not entirely sure where to even connect the wires to for the OEM harness? I just have the connection to the board made.
__________________
I AM FLOOF! SOMEBODY FLOOF MY HORN!! ALL HAIL THE FLOOF!!I JUST FLOOFED ON THE FLOOR |
06-23-2021, 08:29 PM | #15 (permalink) | |
Base Member
Join Date: Feb 2018
Location: Georgia
Posts: 8
Drives: 2013 370z 6MT Coupe
Rep Power: 7 |
Quote:
https://github.com/radensb/eZ_Navi-D...elete-Bring-Up If the board hasn't been loaded it will give you the green light but none of the climate controls will respond. |
|
