redondoaveb 10-16-2019 01:16 PM

Will the Southbend stage 3 hold the power the op's build is making? I think they're rated at 530ft.lbs. to the crank.

Rusty 10-16-2019 01:30 PM

Quote:

Originally Posted by Gray Goose (Post 3883665)
628 HP
511 TQ

On E85 at 14 PSI
:ughdance::happydance:



https://youtu.be/_ttKayTaEx0


~

http://www.youtube.com/watch?v=_ttKayTaEx0




Here's how to do it. :tiphat:

Nissan 370Z Forum - Announcements in Forum : Nissan 370Z General Discussions

Spooler 10-16-2019 02:06 PM

Quote:

Originally Posted by Gray Goose (Post 3883676)
Going to need some clutch recommendations as well. The clutch kept letting go while dynoing. We could have made more power as we are on a very conservative tune. Just kept slipping the clutch.

I just sold a SpecialtyZ 6puck clutch kit that would have held it.

Martijn_b 10-16-2019 02:29 PM

Congrats on the results! you also running 14psi on 93?

How much timing, if you dont mind sharing?

Sent from my SM-G973F using Tapatalk

tonyHTX 10-16-2019 03:13 PM

Quote:

Originally Posted by Gray Goose (Post 3883676)
Going to need some clutch recommendations as well. The clutch kept letting go while dynoing. We could have made more power as we are on a very conservative tune. Just kept slipping the clutch.

Congratulations on the results. I had the Southbend Stage 3 Daily and then the Southbend Stage 3 Drag with upgraded pressure plate. The first Daily slipped past 550whp and the Drag slipped after a few hundred miles at 700whp. I ended up switching to the Clutchmasters FX850 Twin. I've been rebuilding my car for the past few years but it did hold for over a year and a few track events at 700whp. Unfortunately the headstuds didn't hold.. :owned:

Boosted Performance 10-16-2019 09:08 PM

Great work, and awesome results. Too bad the clutch is slipping. With E85, and 14psi, you could be close to 700whp.

Gray Goose 10-17-2019 07:43 AM

Quote:

Originally Posted by soill370z (Post 3883686)
What clutch is in it?

I do not know, I bought the car used and it has something other than stock.

Gray Goose 10-17-2019 07:44 AM

Quote:

Originally Posted by Martijn_b (Post 3883710)
Congrats on the results! you also running 14psi on 93?

How much timing, if you dont mind sharing?

Sent from my SM-G973F using Tapatalk

I will have to check on the timing. I know we are a few degrees lower than could be. Since we couldn't put the power past the clutch we kept everything conservative. We are fairly rich as well.

Gray Goose 10-17-2019 07:46 AM

Well I pulled out the garage this morning to make a road test drive and it died and will not start.

Zero fuel pressure on the fuel return gauge and when I turn the pump on (via ECUTEC app) I cannot hear it and still no pressure.

Tank is FULL of E85 right now. :shakes head:

Checked all the fuses this morning, but couldn't find any that said fuel pump.

Will have to go trouble shoot it after work. Guess I will start with checking for power to the tophat.

The Weapon 10-17-2019 07:03 PM

Quote:

Originally Posted by Gray Goose (Post 3883895)
Well I pulled out the garage this morning to make a road test drive and it died and will not start.

Zero fuel pressure on the fuel return gauge and when I turn the pump on (via ECUTEC app) I cannot hear it and still no pressure.

Tank is FULL of E85 right now. :shakes head:

Checked all the fuses this morning, but couldn't find any that said fuel pump.

Will have to go trouble shoot it after work. Guess I will start with checking for power to the tophat.

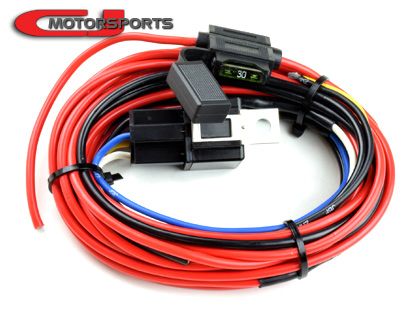

Appologize if you have this already, I don't think i saw this in your parts list or if you left out since it's not too significant, but you need Fuel pump relay kit if you don't have it:

https://isteam.wsimg.com/ip/f3972d89...rs=w:600,h:600

Gray Goose 10-17-2019 08:33 PM

Quote:

Originally Posted by The Weapon (Post 3884038)
Appologize if you have this already, I don't think i saw this in your parts list or if you left out since it's not too significant, but you need Fuel pump relay kit if you don't have it:

https://isteam.wsimg.com/ip/f3972d89...rs=w:600,h:600

I do not have a relay kit. So is the standard wiring is to small for the 450’s amperage?

Gray Goose 10-17-2019 08:34 PM

Fuel pump is bad. I have power going to to it and nothing out of it. So I have another new one coming Saturday. Anyone had a new pump go out before the first road test?

Jinxx 10-17-2019 09:07 PM

Quote:

Originally Posted by Gray Goose (Post 3884059)
I do not have a relay kit. So is the standard wiring is to small for the 450’s amperage?

The wiring is too small for that size pump and may cause further issues ...I did run a 340 pump with stock wiring for 8 months with no issues tho....but was paranoid about it and added the wiring upgrade

The Weapon 10-18-2019 12:26 AM

Correct, stock wiring cant handle the power required. I've seen some pics of people who melted the wiring or at very least suffered from voltage drop probably at most inopportune times.

Gray Goose 10-18-2019 10:12 AM

Quote:

Originally Posted by The Weapon (Post 3884100)
Correct, stock wiring cant handle the power required. I've seen some pics of people who melted the wiring or at very least suffered from voltage drop probably at most inopportune times.

Any other way to get power to the pump than straight from the battery? I hate having a bunch of wires coming straight off the battery!

I can make this kit myself. We own an auto parts store and relays and wiring are no problem. lol
